Specifications
Brand Name :
CLW
Model Number :
CLW0581HJ
Certification :
BV, SGS, CCC
Place of Origin :
SUIZHOU, CHINA
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
500 Unit/Month
Delivery Time :
30-35 days
Packaging Details :
Naked packing,Ro-ro,Bulk Ship
Chassis Brand :
Dongfeng, Foton, Sinotruk HOWO, Isuzu, etc.
Drive Model :
Right Hand Drive & Left Hand Drive
Wheelbase :
4500 mm
Engine Power :
190HP
Tank Capacity :
10cbm 10m3 10cubic Meter 10000liters 10t 12t
Tank Material :
6mm Carbon Steel
Vacuum Pump :
Famous International Brand
Sewage Suction Pipe :
8m
Suction Time :
No More Than 5mins
Effective Suction :
No Less Than 8m
Logo and Pattern :
as Customer's Request
Warranty :
1 Year
Description

Hotsale Dongfeng 10,000liters 10m3 Tanker Truck 10tons Liquid Garbage Sewage Vacuum Suction Truck

Product Description
1. Drive type: 4x2, 4x4, 6x4, 8x4 etc.
2. Chassis Brands: Our factory has good business relationship with DONGFENG, FOTON, ISUZU, FAW, SINOTRUCK, SHACMAN, JAC, JMC, etc.
3. Tanker body: From 2m3 to 25 m3 capacity.
4. Accessory of sewage suction factions: Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pressure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Product Specification

Overall dimensions 8000*2490*3800mm
GVW 15800kg
Chassis brand China Dongfeng
Traction type 4*2
Chassis model Dongfeng
Cab one and a half row, all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electric windows, central lock.
Traction type Right-hand drive
Drive type 4*2
Wheelbase 4500mm
Tire specification 10.00R20
Tire quantity 6+1 units
Engine Engine model CUMMINS 190HP
Emission level Euro 2or3
Displacement/output 5900ml/140kw
Horse power 190hp
Gear box Model Dongfeng
Number of gears 6 forward gears& 1 reverse, synchronized
Suspension Front 8/8- Leaf spring with shock absorber
Rear 9/9-Leaf spring
Fuel tanker Type Steel fuel tank, with lockable cap
Tanker Capacity 10,000cbm
Pump Type Italy BP Pump
Rating speed 1400(r/min)
Max vacuum - % 98%
Pipe Suction and discharge pipe
Special function Suction time ≤ 3mins,
effective suction range ≥ 9,
Max vacuum degree ≤ 15 Kpa,
dump angle ≥ 45
Standard configuration Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc.
Cylinder vacuum tank can be lifted hydraulically to
40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration Tanker material: stainless steel.
Anti-rust coating inside tank
Painting The color and Logo can be customized.

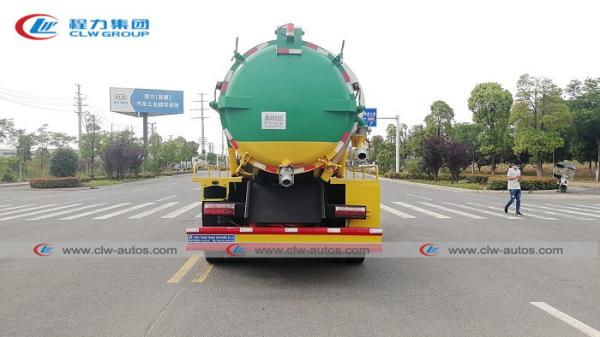

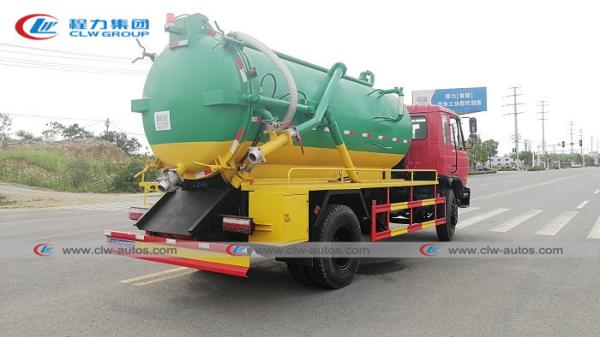

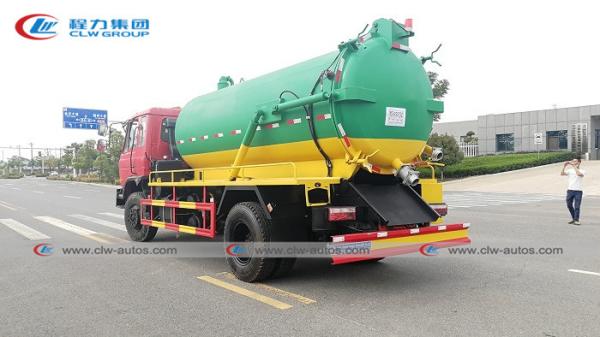

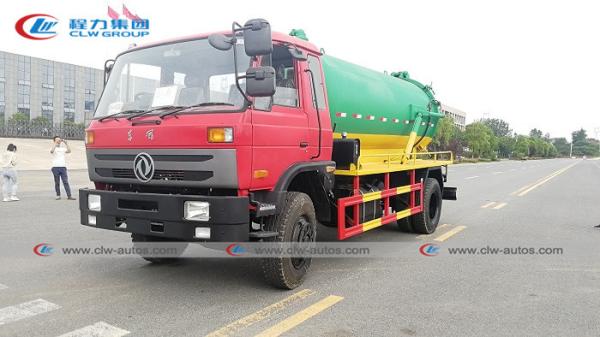

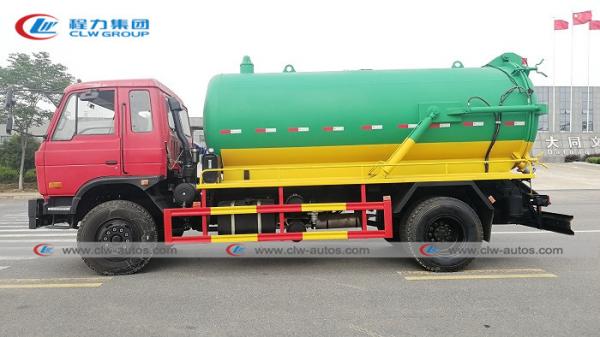

Reference Photos
Dongfeng 10000 Liters 10m3 Sewage Suction Truck

Dongfeng 10000 Liters 10m3 Sewage Suction Truck

Main Structure
Dongfeng 10000 Liters 10m3 Sewage Suction Truck

Working Scene

Dongfeng 10000 Liters 10m3 Sewage Suction Truck
Dongfeng 10000 Liters 10m3 Sewage Suction Truck


After-sales Service

1. Provide English operation manual and Instruction videos.
2. One year free warranty for major 3 components: engine, gearbox, axles; One set of easily worn spare parts of truck chassis for free; Spare parts supplied at factory price whenever needed.
3. Aftersales service whenever needed. Our engineers will go to customer's country to assist the installation and operation if order QTY.is more than 10 units. Contact Lea For More Details: +86 155 2791 1810.

FAQ

Q1: What size sewage suction tank we can get from your company?

A: we can supply 5CBM to 35CBM sewer cleaning truck as per our customer's request. Pls contact with us for more technical details discussion.


Q2: Have you supplied sewage suction truck to any overseas companies?
A: Yes, we have supplied fire trucks to African, south-east Asian, south-American and other more than 80 countries and regions.

Q3: Can we adopts International brand parts or accessories for fire truck?
A: Sure, we already cooperated with many international brand suppliers.

Q4: What about warranty?
A: Equipment warranty is 12 months from the date on which the equipment is applied successfully into operation, or 13 months from the date on which the equipment has been delivered, whichever comes first.

Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory based in Suizhou city, Hubei province, China. Our overseas marketing office in Wuhan. Wuhan is two hours' plane from Beijing,Shanghai or Guangzhou city,welcome to visit us for factory inspection.
