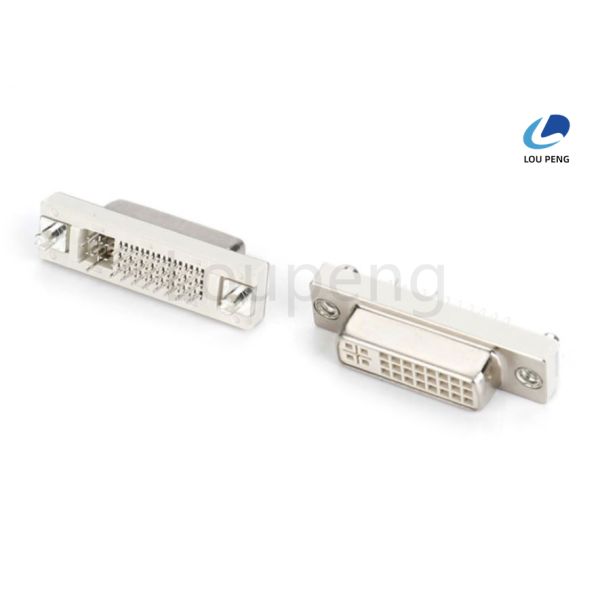

DVI 24+5pin female connector, 180 degree, solderable PCB board, semi-gold white, riveted with 8.25mm rivets, 3.1mm tail end.
DVI 24+5pin female connector, 180 degree, solderable PCB board, semi-gold white, riveted with 8.25mm rivets, 3.1mm tail end.
DVI 24+5pin female connector, 180 degree, solderable PCB board, semi-gold white, riveted with 8.25mm rivets, 3.1mm tail end.
DVI 24+5pin female connector, 180 degree, solderable PCB board, semi-gold white, riveted with 8.25mm rivets, 3.1mm tail end.
Specifications
Brand Name :
LP
Model Number :
LP-DB025
Certification :
ISO 9001:2000
Place of Origin :
China
MOQ :
1000PCS
Price :
0.03
Payment Terms :
T/T, , L/C
Supply Ability :
100000PCS
Delivery Time :
7~10 days
Packaging Details :
Tray / Tube
Color :
white
Description

一,MATERIAL:

1. Insulator: LCP+30%Glass Fiber (UL94V-0)

2.Contact: Brass

3.Contact Plated: Gold Flash over Tin Or Glod Plated Or Tin Plated

4. Shell: Steel, Nickel Plated

二,SPECIFICATION:

1.Current Rating: 5 AMPS

2. Insulation Resistance: 1000MSMIN. At 500vDC

3.Dielectric Strength: 500V for One minute

4.Operation Temperature: -55ºC ~ +105ºC

DVI 24+5pin female connector, 180 degree, solderable PCB board, semi-gold white, riveted with 8.25mm rivets, 3.1mm tail end.
