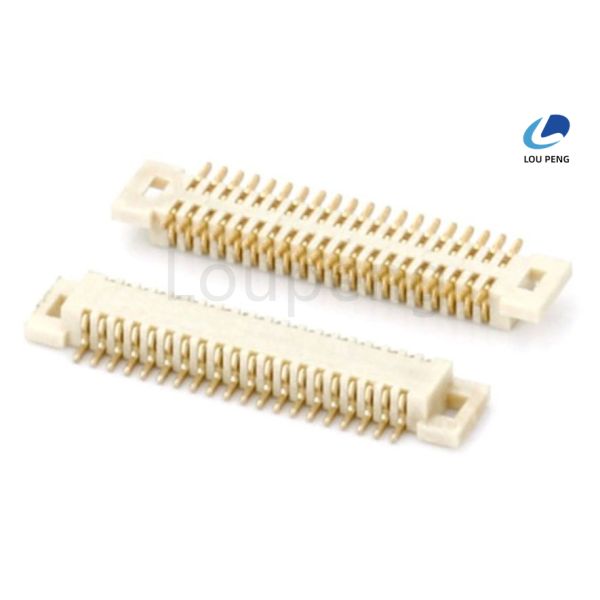

0.5mm pitch Board-to-Board Connector Male H=1.28mm 10-80 PINS
0.5mm pitch Board-to-Board Connector Male H=1.28mm 10-80 PINS
0.5mm pitch Board-to-Board Connector Male H=1.28mm 10-80 PINS
0.5mm pitch Board-to-Board Connector Male H=1.28mm 10-80 PINS
Specifications
Brand Name :
LP
Model Number :
LP-BTB003
Certification :
ISO 9001:2000
Place of Origin :
China
MOQ :
1000PCS
Price :
0.06
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100000PCS
Delivery Time :
7~10 days
Packaging Details :
Reel / Tube / Tray
Color :
White
Description

NOTES:

1.HOUSING MATERIAL: LCP UL94V-0

2.TERMINAL AND POST MATERIAL: COPPER ALLOY, GOLD PLATING OVER NICKEL.

SPECIFICATIONS:

1. ELECTRICAL CHARACTERISTICS:

1-1. RATING CURRENT: POWER PIN 3A/CONTACTO,

SIGNAL PIN 0.3A/CONTACT(MAX.5A AT TOTAL CONTACT).

1-2.VOLTAGE RATING: 50V

1-3. CONTACT RESISTANCE: POWER PIN 20mΩ MAX,SIGNAL PIN 50mΩ MAX.

1-4. DIELECTRIC WITHSTANDING VOLTAGE: 250V AC FOR ONE MINUTE.

1-5. INSULATION RESISTANCE: 1000MΩ MIN.

2.MECHANICAL CHARACTERISTICS:

2-1. INSERTION FORCE: 1.5N/PIN MAX(40N MAX TOTAL)

2-2.WITHDRAWAL FORCE: 0.15N/PIN MIN

3.DURABILITY: 30 CYCLES(MIN)

4.AMBIENT TEMPERATURE RANGE: -55ºC ~ +125ºC

0.5mm pitch Board-to-Board Connector Male H=1.28mm 10-80 PINS
