Specifications
Brand Name :
RisingHF
Model Number :
RHF2S025
Place of Origin :
China
Certification :
CE/FCC
MOQ :
1
Delivery Time :
One month
Payment Terms :
100% in advance
Average Power Consumption :
<5W
Encryption :
AES128
Power supply input :
DC 12V
Operating temperature :
-20℃~+65℃
Installation :
On The Desktop Or Fixed On The Wall
LoRaWAN protocol :
Class A/C
Max output power :
20dBm
LoRa Output Power :
Max：25dBm
Description

Product Description:

Introducing LoRaWAN Indoor Gateway – the ideal solution for creating a wide area network (WAN) with long range wireless capabilities. This gateway is powered by the LoRaWAN protocol, a low-power, wide area network protocol designed for long-distance communications. The LoRaWAN Indoor Gateway is Class A and C compliant, with a LoRa sensitivity of -142dBm@SF12, BW=125kHz. It also offers a wide operating temperature range of -20℃~+65℃, a lightweight design of 500g, and an impressive 5%~95%RH humidity rating.

The LoRaWAN Indoor Gateway is a reliable, low-cost and low-power solution for creating a wide area network with long range wireless capabilities. The gateway offers excellent performance in a wide range of applications, including smart city, industrial automation, agriculture, smart building, and more. With its robust design and advanced features, the LoRaWAN Indoor Gateway is the perfect choice for creating a secure and reliable WAN.

Features:

  • Product Name: LoRaWAN Indoor Gateway
  • Average Power Consumption: <5W
  • Operating temperature: -20℃~+65℃
  • Humidity: 5%~95%RH
  • LoRa Sensitivity: -142dBm@SF12,BW=125kHz
  • Antenna: External Antenna
  • Wireless Network Gateway: Yes
  • Long Range Wireless Gateway: Yes
  • Indoor Wireless Gateway: Yes

Technical Parameters:

Parameter Value
Type Indoor Network Gateway/Wide Area Network Gateway/Low Power Wireless Gateway
Humidity 5%~95%RH
Dimensions 155*138.5*33.5mm
LoRa Sensitivity -142dBm@SF12,BW=125kHz
Antenna External Antenna
Weight 500g
Installation On The Desktop Or Fixed On The Wall
Max output power 20dBm
Average Power Consumption < 5W
Frequency bands EU868, US915, AS923, AU915, KR920, IN865
Power supply input DC 12V

Applications:

RisingHF's RHF2S025 Indoor LoRaWAN Gateway is a Wide Area Network Gateway designed for indoor application, providing reliable connection with a minimum order quantity of only 1. This gateway is certified by CE/FCC and can be delivered within one month after the payment of 100% in advance. It has an average power consumption of less than 5W with DC 12V power supply input, while its encryption is AES128 and LoRa sensitivity is -142dBm@SF12, BW=125kHz. RHF2S025 has a relatively light weight of 500g.

RHF2S025 Indoor LoRaWAN Gateway is perfect for users who need a secure and reliable indoor wireless connection. With its wide area network capability, it can be used in various indoor applications such as smart home, smart office, smart retail, smart factory, smart agriculture, etc. In addition, its low power consumption and small size make it an ideal choice for those who are looking for an efficient and cost-effective gateway solution.

Customization:

Customize LoRaWAN Indoor Gateway

RisingHF RHF2S025
  • Brand Name: RisingHF
  • Model Number: RHF2S025
  • Place of Origin: China
  • Certification: CE/FCC
  • Minimum Order Quantity: 1
  • Delivery Time: One month
  • Payment Terms: 100% in advance
  • Frequency bands: EU868, US915, AS923, AU915, KR920, IN865
  • LoRa Sensitivity: -142dBm@SF12,BW=125kHz
  • Installation: On The Desktop Or Fixed On The Wall
  • Max output power: 20dBm
  • Humidity: 5%~95%RH

This indoor wireless gateway is specifically designed for wide area network and indoor network gateway applications. It supports the frequency bands of EU868, US915, AS923, AU915, KR920, IN865, and has a LoRa sensitivity of -142dBm@SF12, BW=125kHz, a maximum output power of 20dBm and a humidity range of 5%~95%RH. It is certified with CE/FCC standards and is suitable for installation on the desktop or fixed on the wall. The minimum order quantity is 1 and the delivery time is one month. Payment terms are 100% in advance.

Support and Services:

Technical Support and Services for LoRaWAN Indoor Gateway

We provide technical support and services for customers using LoRaWAN Indoor Gateway. Our services include:

  • Online and telephone technical support
  • Installation, configuration and integration support
  • Software and firmware updates and upgrades
  • Troubleshooting and diagnostics
  • Maintenance and repair services

Our team of experienced engineers are available to provide you with the best technical support and services for LoRaWAN Indoor Gateway.

Packing and Shipping:

LoRaWAN Indoor Gateway Packaging and Shipping

LoRaWAN Indoor Gateway is shipped with the following items:

  • 1 x LoRaWAN Indoor Gateway

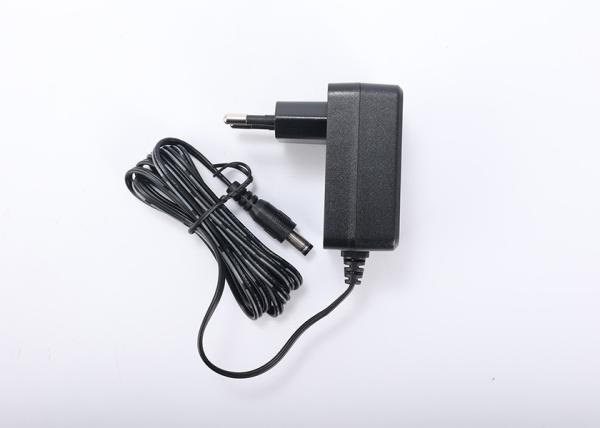

  • 1 x Power Adapter
  • 1 x Ethernet Cable
  • 1 x Quick Setup Guide

The LoRaWAN Indoor Gateway is securely packaged in a box with foam insert to minimize the risk of damage during transit.
