IEEE802.11b/G/N Bluetooth 4.1 Wifi Module RHF-SYS6212 2.4 Ghz Wireless Module
IEEE802.11b/G/N Bluetooth 4.1 Wifi Module RHF-SYS6212 2.4 Ghz Wireless Module
IEEE802.11b/G/N Bluetooth 4.1 Wifi Module RHF-SYS6212 2.4 Ghz Wireless Module
IEEE802.11b/G/N Bluetooth 4.1 Wifi Module RHF-SYS6212 2.4 Ghz Wireless Module
Specifications
Brand Name :
RisingHF
Model Number :
RHF-SYS6212
Place of Origin :
China
MOQ :
5
Price :
Negotinate
Payment Terms :
T/T
Delivery Time :
3 working days
Chip :
CYW43438KUBG
Interface :
SDIO for WiFi; UART for Bluetooth
IEEE :
IEEE 802.11b/g/n
Operating band :
2.4-2.835Ghz
-95dBm(min) :
Yes
18dBm(max) :
Yes
Description

Description

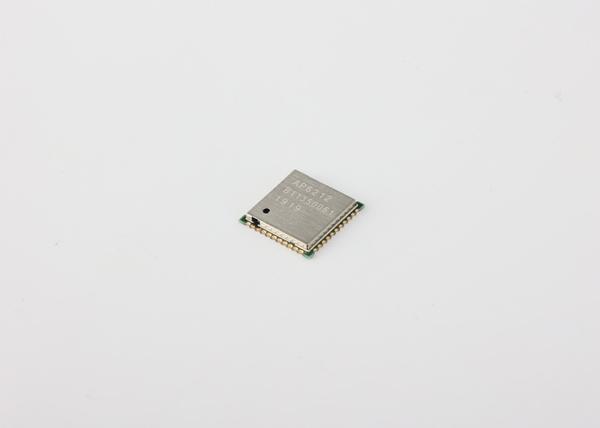

RisingHF WIFI+Bluetooth 4.1+FM RX SIP Module RHF-SYS6212 2.4~2.4835GHz IEEE802.11b/g/n

RHF-SYS6212 product is designed base on CYW43438 chipset. It operates at 2.4GHz band and supports IEEE802.11b/g/n 1T1R with wireless data rate up to 72.2Mbps.

It supports IEEE802.11i safety protocol, along with IEEE 802.11e standard service quality. The integrated module provides SDIO interface for WiFi, UART / PCM interface for Bluetooth and UART / PCM interface for FM.

Specifications

Operating frequencies : 2.4~2.4835GHz,

WIFI host interface is SDIO2.0;

WIFI supports IEEE Standards : IEEE 802.11b/g/n

WIFI 2.4G band wireless data rate can reach up to 72.2Mbps

Applications

Imaging platforms (printers, digital still cameras, digital picture frames)

Gaming platforms

Car information

Smart PAD

TV/Set-Top Boxes

Functional Block Diagram

IEEE802.11b/G/N Bluetooth 4.1 Wifi Module RHF-SYS6212 2.4 Ghz Wireless Module

For more information, pls access to our website www.risinghf.com.
