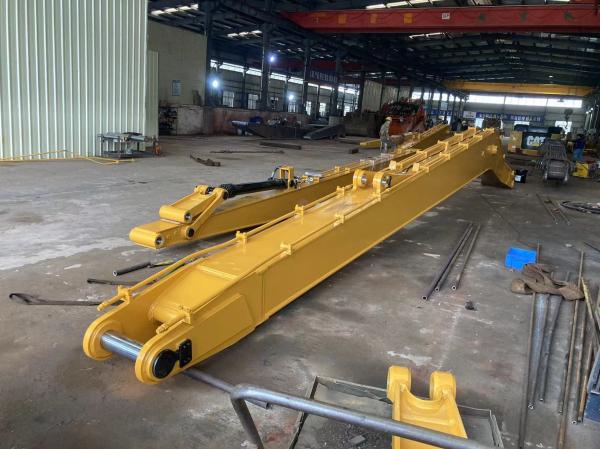

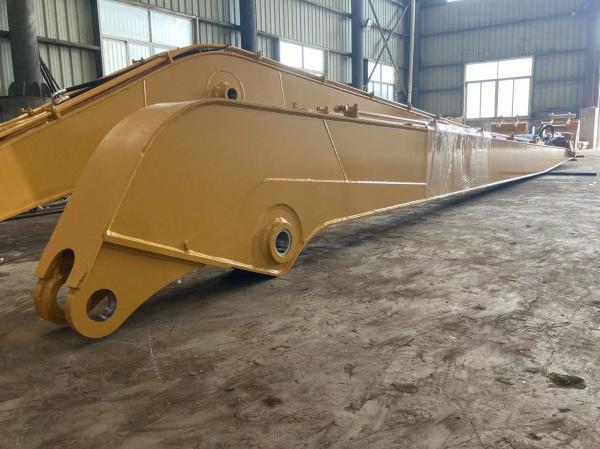

Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Hydraulic Excavator Boom Arm
Specifications
Brand Name :
ZHONGHE
Model Number :
20~22T
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
13200
Supply Ability :
50set one month
Delivery Time :
15`20days
Packaging Details :
Plastic wrap and bubble wrap packing
Color :
customized
Part name :
Boom/Arm/Bucket Cylinder
Type :
Hydraulic Oil Cylinder
Material :
Q345B+Q460D
After-sales service provided :
Online support
Condition :
parts
Bucket capacity(m3) :
0.4
Description

CE-approved New OEM Quality Extended Arm Long Excavator Long Reach Boom and Stick Arm for different size Excavatorcustom size 30-36T excavator long reach boom for Hitachi/Doosan/Cat/Sany

Our advantage:

01 Use Q355B material,
02 Adopts precision steel pipeline
03 Adopt alloy copper sleeve big arm base
04 Two layers groove welded to ensure
05 Double quality inspection before leaving
06 The tolerance of position size within 1 mm
07 Angle of boom and arm can reach 163°

Lengthening arm production:

The computer 3D aided design system does stress analysis and simulates motion

In addition, the proficiency of processing equipment, staff skills and practical application knowledge, experience

Material selection, production process, etc

Excavator Ton Total Length(mm) (A)Boom(mm) (B)Arm(mm) Maximum Digging Radius(mm) Maximum Digging Depth(mm) Maximum Unloading Height(mm) Maximum Digging Height(mm) Bucket Volume(cbm) Cylinder(ton)
11-15T 13000 7250 5750 11200 9000 7550 9350 0.15-0.3 12T
20-25T 15400 8220 7180 14500 11300 10400 12600 0.4-0.6 12T
20-30T 18000 10000 8000 17300 13000 17200 14000 0.4-0.7 12T
35-40T 20000 11000 9000 19200 14900 12900 15200 0.6-1.2 12T
40-45T 22000 12000 10000 21300 16000 14000 17000 0.5-1 20T
40-50T 24000 13000 11000 23000 17900 15200 18100 0.5-1.1 20T
