PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
Specifications
Brand Name :
Zhonghe
Place of Origin :
China
MOQ :
1set
Price :
$20,000.00/Pieces
Supply Ability :
50 Piece/Pieces per Month
Delivery Time :
15 working days
Packaging Details :
bubble bag packing
Model Number :
DMA01
Certification :
CE Certificate
Payment Terms :
T/T, discussion
Port :
Guangzhou Yantian (Port)
Description
Universal model PC300 PC360 PC400 PC400 for excavator extended arm for high-rise demolition

Long Reach Excavator High Reach Boom Demolition Boom For PC300 PC360 PC400 PC400

See what Zhonghe can do: Catalogue ZH excavator boom arm.pdf
For more products:

Description of Excavator Demolition Boom

The safety of the three-stage blasting arm is better than that of the ordinary standard blasting arm. The middle boom increases the safe distance between the cockpit and the working parts. Safety operation is strongly advocated at present, and three-stage blasting will be the development trend in the future.

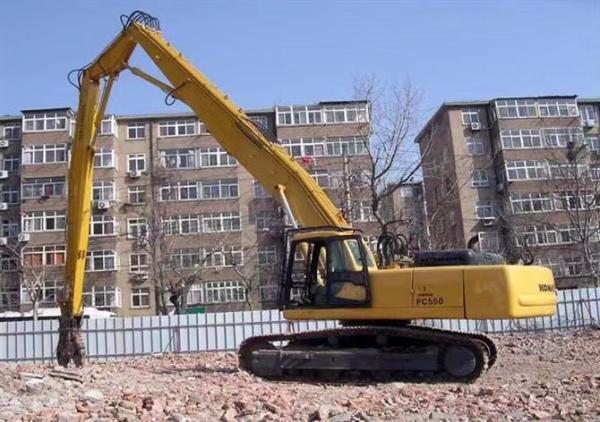

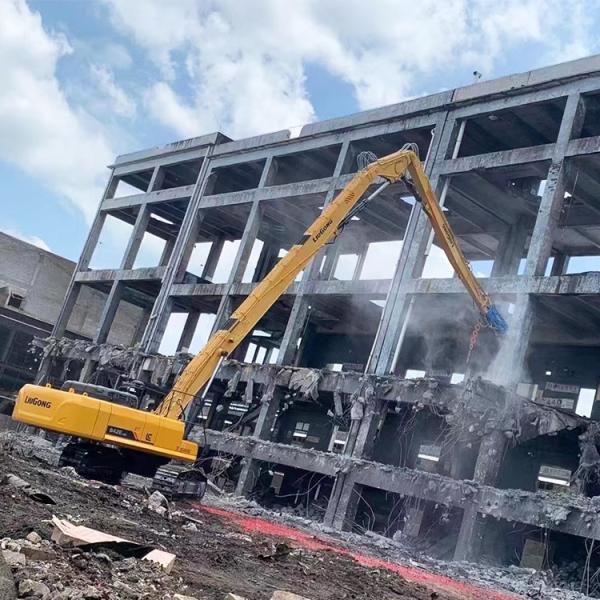

The demolition arm is used for the reconstruction of old houses and old cities, urban demolition projects, chimney demolition, etc.
PC240 Demolition Extension Arm Q355B / Q690D Optional Material

Combination proposal for excavator demolition attachments

Weight Model Part Length Total length(m) Weight(kg) Maximum removal height(m)
Total Length(mm) 25T 8.5 16 2800 16M
Boom(A)(mm) 2.3 900
Arm(b)(mm) 5.2 1700
Maximum Digger Radius(C)(mm) 30T 9.5 18 3000 18M
Maximum Digger Depth(C)(mm) 2.3 1000
Maximum Unloading Height(E)(mm) 5.2 1950
Maximum Digger Height(F)(mm) 35T 10.5 20 3500 20M
Bucket Volume(m³) 2.3 1100

Material: plate Q355B (optional Q690D), hydraulic steel pipe is cold-drawn seamless steel pipe, pin material is 40Cr, high-pressure rubber hose is 4-layer steel wire joint venture pipe, butter hose is single-layer rubber hose, and the bushing of the boom seat is graphite alloy Copper sets.

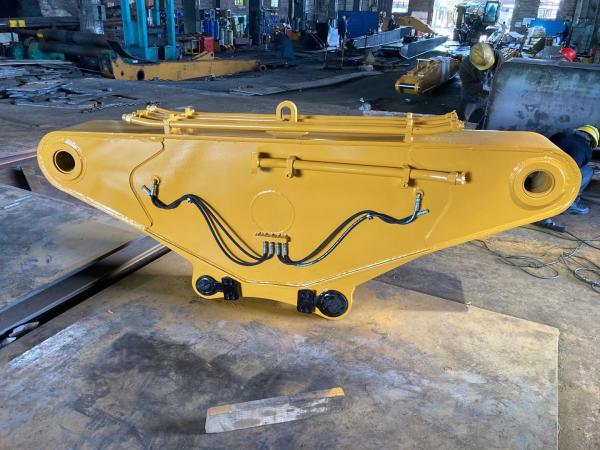

Structure: 1 boom, 1 middle arm, 1 small arm, 8 pin shafts, 12 stop valves, 1 bucket oil cylinder (20t level), all high-pressure hoses, and 1 set of linkage devices.
Product advantages: The large and medium-sized booms designed by our company are reasonable in size. After dismantling the arm and installing the breaker, it can rotate normally. The large and medium-sized arms can achieve a 180-degree opening angle, and the overall disassembly height will be higher. The overall production technology is ahead of the industry average, and the product quality is better than products of the same level.

Advantages of long reach demolition for excavator

1. Suitable for all types of excavators.
2. Many different materials such as Q345B, and Q690D are optional to suit your application.
3. The large boom can be two connected PCS, making it fit into one container to save shipping costs.
4. All joints should be tapered 45 degrees before welding.
5. All parts are guaranteed
6. Some parts may be reinforced with a thicker plate or overlapped with another plate for heavy-duty applications.
7. Boom cylinder, boom cylinder can also be provided according to customer needs.
8. Additional pipes can be added to accommodate some additional applications.
9. The conventional material is Q355B. Thin plate, high strength, lightweight, reduces the load of the excavator.
10. The bushing inside the seat sleeve of the boom is made of copper (built-in self-lubricating toner to prolong the life of the long arm).

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

Advantages of ZHONGHE MACHINERY

Custom made:
1. Suitable for all brands of excavators.
2. The color, length and material can be made according to your requirements.
3. Additional piping can be added to accommodate some additional applications.
4. If the customer needs, we can also provide boom cylinder and rod cylinder.
Strong production capacity:
We can produce 50 sets of excavator arms per month.
The annual output of various excavator booms can reach 600 sets.
Good service:
1. Online support within 24 hours.
2. Schedule a video technical support appointment.
(Our engineers focus on excavator arms and accessories for more than 10 years)
3. The excavator arm should be two-section/three-section to make it suitable for loading into a container to save transportation costs.
PC240 Demolition Extension Arm Q355B / Q690D Optional Material
Company profile
Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach 600 sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional MaterialPC240 Demolition Extension Arm Q355B / Q690D Optional MaterialPC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional MaterialPC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

Applications

Our product can well fit these excavator brands: KOMATSU, HITACHI, CATERPILLAR, SUMITOMO, HYUNDAI, KOBELCO, KATO, SANY, DAEWOO, VOLVO, etc.

PC240 Demolition Extension Arm Q355B / Q690D Optional MaterialPC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material

PC240 Demolition Extension Arm Q355B / Q690D Optional Material
