Specifications
Brand Name :
ZH
Model Number :
ZH-JCB22
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1set
Price :
$14000/Pieces
Supply Ability :
60 Piece/Pieces per Month
Delivery Time :
15works
Packaging Details :
Bubble bag packaging
Condition :
Brand new product
Video outgoing-inspection :
Provided videos of excavator boom and bucket
Warranty :
180days warranty for arm
After service :
7*24 hours online support
Material :
Q355B or Q345B
MOQ :
1 Set
Usage :
Machinery Attachments for excavator
Delivery time :
10-27 days
Description

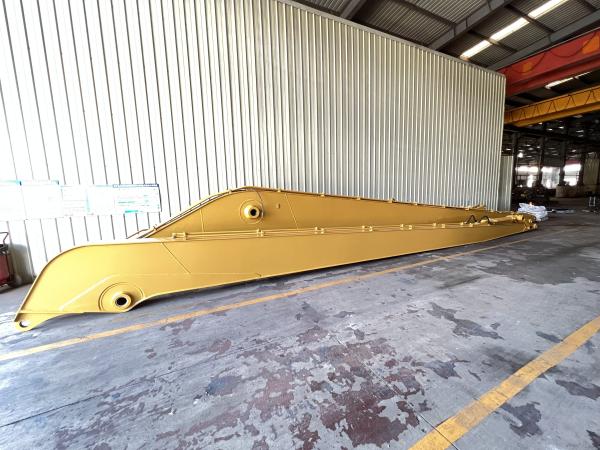

Practical Excavator Boom Arm, Excavator Long Reach For PC200 CAT320 SK200

See what product zhonghe can do: Catalogue ZH excavator boom arm.pdf
For more products:

Product Presentation of Excavator Boom

The excavator's extended arm is constructed using Q355B steel, which provides excellent strength and rigidity. The shaft sleeve of the extension arm is typically made of 45# steel and lined with a 40Cr bushing, which is lubricated with butter to decrease the shear force generated by frequent rotation of the shaft and sleeve. This increases the extension arm's service life. The bushing is positioned between the main body bracket and working arm and is connected and supported by an oil cylinder. The control system inside and outside the cockpit includes a set of cylinders for the extension arm working cylinder and bucket cylinder, which function in conjunction with the control arm. The telescoping capabilities of the cylinders more than double the bucket's stroke, allowing for greater reach and depth. This makes it particularly well-suited for use in mines, docks, warehouses, flood relief, and other special situations. This represents a significant advancement in mining machinery and has tremendous practical value.

Material Use Q345B, Q550D, Also can customize to customer requirements
Product Warranty Period 6 months,9 months,1 Year
Product Size Most lengths can be 34M, According to customer requirements, Any excavator model.

Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200

Advantages of Zhonghe Excavator Long Arm

1. Less maintenance
Using high-quality materials, such as default Q355B, optional Q690D, Ningbo connectors, seamless precision pipes, graphite alloy copper sleeves, strong and lightweight barrels.
2. Sturdy and sturdy
Built-in stiffeners. Professional welding skills for different bearing positions. Groove preparation before welding (45° edge excavation).
Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200
What Zhonghe Can Do

CUSTOMIZATION:
1. Applicable for all brand excavators.
2. Color, length, and material can do according to you.
3. Extra pipelines can be added to suit some extra applications.
4. Boom cylinder and stick cylinder can also be supplied if the customer wants.

STRONG PRODUCTION CAPACITY:
We can produce 50 sets of excavator booms per month.
Our annual output of various types of excavator boom arms can reach 600 sets.

GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment for over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into a container to save shipping costs.
Warranty:
1 year for long reach boom, 180 days for cylinder and linkage, and 90 days for the bucket.

Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200

All parts you needed are included.

Long Reach Kits Are Fully Compatible with ZHONGHE Excavator Standard Buckets, and Cylinder.
Excavator long boom
Excavator long arm
Standard bucket
Linkage kit
Bucket cylinder
Butter hose
Pin
Lubricating system
Seals

Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200

Specification of Excavator Boom Arm

Weight
Model
Part Length
Total length(m)
Weight(kg)
Maximum removal height(m)
Total Length(mm) 25T 8.5 16 2800 16M
Boom(A)(mm) 2.3 900
Arm(b)(mm) 5.2 1700
Maximum Digger Radius(C)(mm) 30T 9.5 18 3000 18M
Maximum Digger Depth(C)(mm) 2.3 1000
Maximum Unloading Height(E)(mm) 5.2 1950
Maximum Digger Height(F)(mm) 35T 10.5 20 3500 20M
Bucket Volume(m³) 2.3 1100

Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200

Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200Practical Excavator Long Boom Arm Reach For PC200 CAT320 SK200

Company Strength

Kaiping Zhonghe Machinery Manufacturing Co., Ltd, is a manufacturing and trading combo that specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team.
Our annual output of various types of excavator boom arms can reach 600sets. We supply products with high quality and moderate prices, which sell well in more than 40 countries and areas.
We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.
