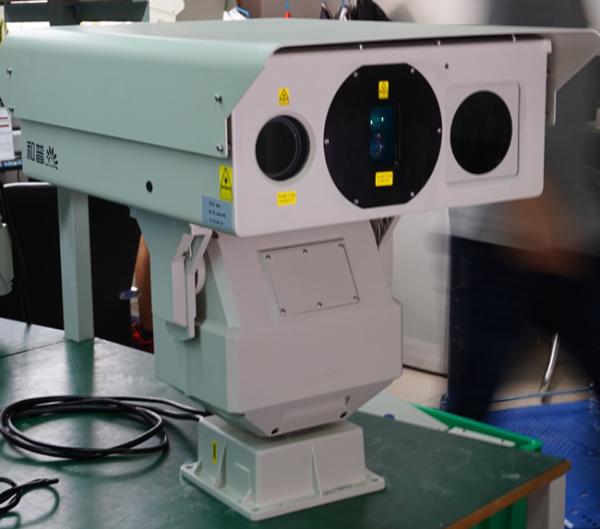

360° PTZ Infrared Thermal Surveillance System Fit Forest Fire Prevention
360° PTZ Infrared Thermal Surveillance System Fit Forest Fire Prevention
360° PTZ Infrared Thermal Surveillance System Fit Forest Fire Prevention
360° PTZ Infrared Thermal Surveillance System Fit Forest Fire Prevention
Specifications
Brand Name :
Hope-Wish
Model Number :
TRC4105S-2022-IP
Certification :
CE,FCC
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Packaging Details :
wooden case
NETD :
50mK
Spectral range :
7.5～14μm
Electronic compass :
range 0-360°, precision 1°, Resolution 0.1°
Resolution :
336*256/640*512
grade :
military level
warranty :
one year
Description

360° PTZ Infrared Thermal Surveillance System With Long Range IP Camera

Feature

  • Integrating visible camera, near-infrared laser illuminator and thermal camera.
  • NETD 50mk.
  • Fog penetration (optional), optical filtering in day time and DSP image processing technology enhances the image details in foggy/dusty environment.
  • Multi-video color mode. Thermal camera has 9 pseudo colors and B/W, B/W inverse color mode.
  • 360°continuous rotation PT with load duty up to 50kg.
  • Integral aluminum alloy housing, IP66 ingress protection, waterproof, dustproof.

Application

Border defense, railway&expressway security, seaport&airport security, city security, forest fire prevention,river&lake monitoring.

Technical specification

Type TRC4105S-2022-IP
Detection 4200m

5th generation uncooled FPA sensor Resolution 336×256 pixel

Spectral range 7.5～14μm, NETD 50mk
Thermal camera 50mm

1. Electric zoom and focus

2. Special AS & DOE optical zooming lens

3. 3CAM high-precision optomechanical design
Field of view 6.5°×4.8°
Image processing SDE digital image processing
10 pseudo color and B/W, B/W inverse
AGC & 2X digital amplification
Consumption 6W, 808nm, NIR
Laser angle 1.5°～20°
Cooling Package

1. filled with inert gas seal to prevent oxidation

2. Laser with distributed design with more cooling capacity
Angle and distance matching 1. Automatic tracking or manual fine-tuning intelligent matching
2. DSS digital stepper illumination angle control, unique laser angle and distance matching technology, min 0.1°follow-up zooming
3. Z-super laser angle and magnification matching algorithm, the tracking response time <30ms
4. 0.01°SLM optical axis aiming and locking
CCD 1/2.8'' CMOS 0.005lux low illumination color to B/W

1. 2 megapixel HD, 1920*1080,Automatic ICR switch

2. H.264/MPEG4/MIPEG H.264 video format

3. Video bit rate 32Kbps ~ 16Mbps, 60Hz30 frames / sec

4. Support SD card local storage

5. ABF Auto Back Focus adjustment function
Visible Lens

1. 10～220mm

2. HD infrared lens
Motorized & manual focus, DC8-12V, auto iris, (optional auto focus), DC5V precision potentiometers preset positions, zoom focus feedback
Fog penetration Optical filtering and AFR image processing technology
Housing

1. Material: aluminum alloy, stainless steel fasteners, anti strong winds.

2. Structure: integrated design,

3. The surface coating: PTA three anti-paint, anti-seawater corrosion

4. Protection grade: IP66, waterproof and dustproof

5. Interface: Aviation waterproof plug
PT

1, Load duty:30kg

2, Angle:

Pan 360°continuously

Tilt: +40°～-45°

3, Speed: pan 0.01～30°/S, Tilt 0.01～15°/S

4, Preset : 80,Patrol & Scan

5, Orientation and angle real-time display, with zero correction
Interface

1. Intelligent IP box, one 10M / 100M adaptive Ethernet port (containing visible thermal image + HD + RS485 control), AC24V / DC24V,

2. (Optional) Reserved RS422 / 485 and analog video, azimuth return for radar, GIS linkage position, or third-party intelligent analysis

3,Military-grade waterproof aviation plug
Protocol

1.TCP / IP, HTTP, DHCP, DNS, DDNS, RTP and other network protocols

2. Support ONVIF2.0

3,Pelco-P, Pelco-D and other industry-standard protocol, (optional) Baud rate 2400, 4800, 9600, 19200
Power

AC24V / DC24V ± 10%, 50Hz, 150W, standard AC220V-> AC24V adapter

(Optional DC12V power supply, RC2013 only use AC24V, not DC power supply)
Environmental Indicators

1. Working temperature: -25 ℃ ~ + 55 ℃

2. Storage temperature: -35 ℃ ~ + 65 ℃

3. Humidity: <90%

4. Ingress Protection: IP66
Weight ≤30kg

.

​
