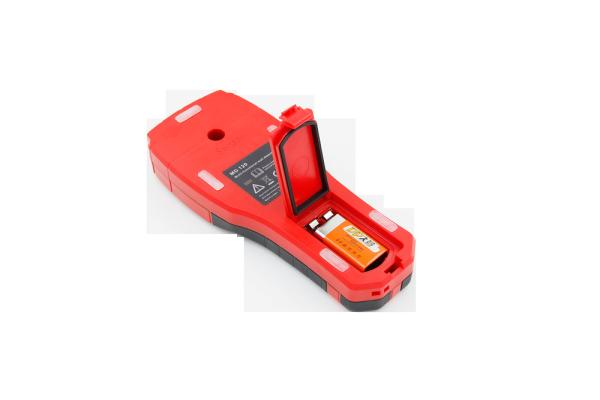

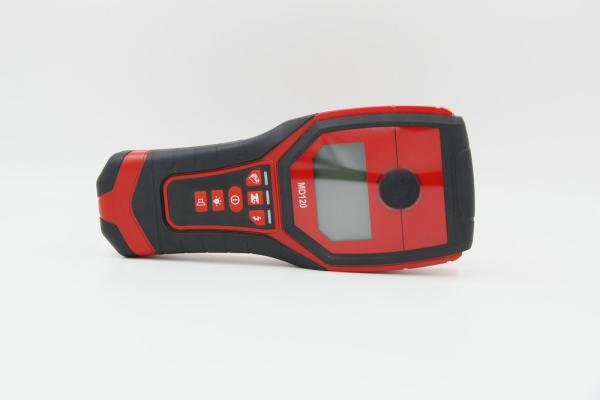

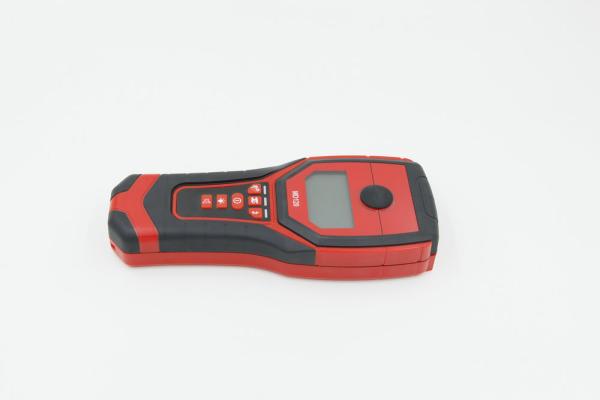

Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd
Specifications
Brand Name :
JSD
Model Number :
MD120
Certification :
CE/ROHS/FCC
Place of Origin :
ShenZheng
MOQ :
100PCS
Payment Terms :
T/T
Supply Ability :
3000PCS PER MONTH
Delivery Time :
7-15days
Model :
MD120
product name :
Multi-functional wall detector
Magnetic metal :
120mm
Non-Magnetic metal :
80mm
Wood :
38mm
Protection class :
IP54
Description

Some unfavorable factors during the detection will affect thedetect accuracy,such as the follwing:

- Environmental factor
Including e.g.,the proximity of other equipment that producestrong magnetic or electronmagnetic fields,moisture,metallibuilding materials,foil-laminated insulation materials orconductive wallpaper or tiles.
- Material and size of the objects.
- Material and condition of the base material.

- Operation mode selection is not accurate.
Therefore, please also observe other information sources(e.g.construction plans) before drilling,sawing or routing into walls,ceilings or floors.
* Less scanning depth for wires while the conductors are not "live".

Technical Data

Multi-functional wall detector MD120
Maximum probing depth
Magnetic metal 120mm
Non-Magnetic metal 80mm
Charged wire 11O 230volts(in the pass through) 50mm
Wood 38mm
Switch off instrument with inactivity after 5mins
Operation temperature -10C~+ 509C
Storage temperature -20C~+70C
Battery type 1x9 volts 6L .R61
Operation time about 5 hours
Weight conform to EPTA-Procedure 01/2003 270g
Protection class IP54

Product Features

Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd

Pocket Wall Metal Detector , IP54 Wall Pipe Detector With Battery Powerd

Care


Keep the measuring tool clean and dry at all times to ensureproper and safe working.
Do not immerse the tool in water or other fluids.
Wipe away debris or contamination with a dry,soft cloth.Do notuse cleaning agents or solvents.
In order not to affect the measuring function,decals/stickers orname plates,especially metal ones,may not be attached in thesensor area 13 on the front or back side of the measuring tool.
Do not remove the contact pads 12 on the back.
Do not open the instrument by yourself Store and transport themeasuring tool only in the supplied soft package.
ln case of repairs,send in the tool packed in its soft package.
