Specifications
Brand Name :
LongJoin
Model Number :
JL-471CC
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Power supply :
Rated: 100-277VAC; 50/60Hz Limit: 85~300VAC; 47/63Hz
Dimming output :
0-10VDC
Carrying capacity :
≤9A
Device power consumption :
Static: 1.2W Dynamic peak: 2.4W
Shell protection :
IP67
Real-world Scenarios :
High-vibration Environments
Description
Built In Cat.1 Intelligent Single Light Controller One Channel LTE Cat.1 Fail-safe Operation
Product Overview

JL-471CC is a built-in wiring type single light controller developed based on 4G (LTE Cat. 1) communication mode, which can perform remote control, configuration, and real-time monitoring of operating status. The product has a compact size and is easy to install inside the lamp head or in the maintenance hole of the lamp post. Suitable antennas can be selected according to different installation and base station coverage environments. The product is internally glued with a protection level of IP67.

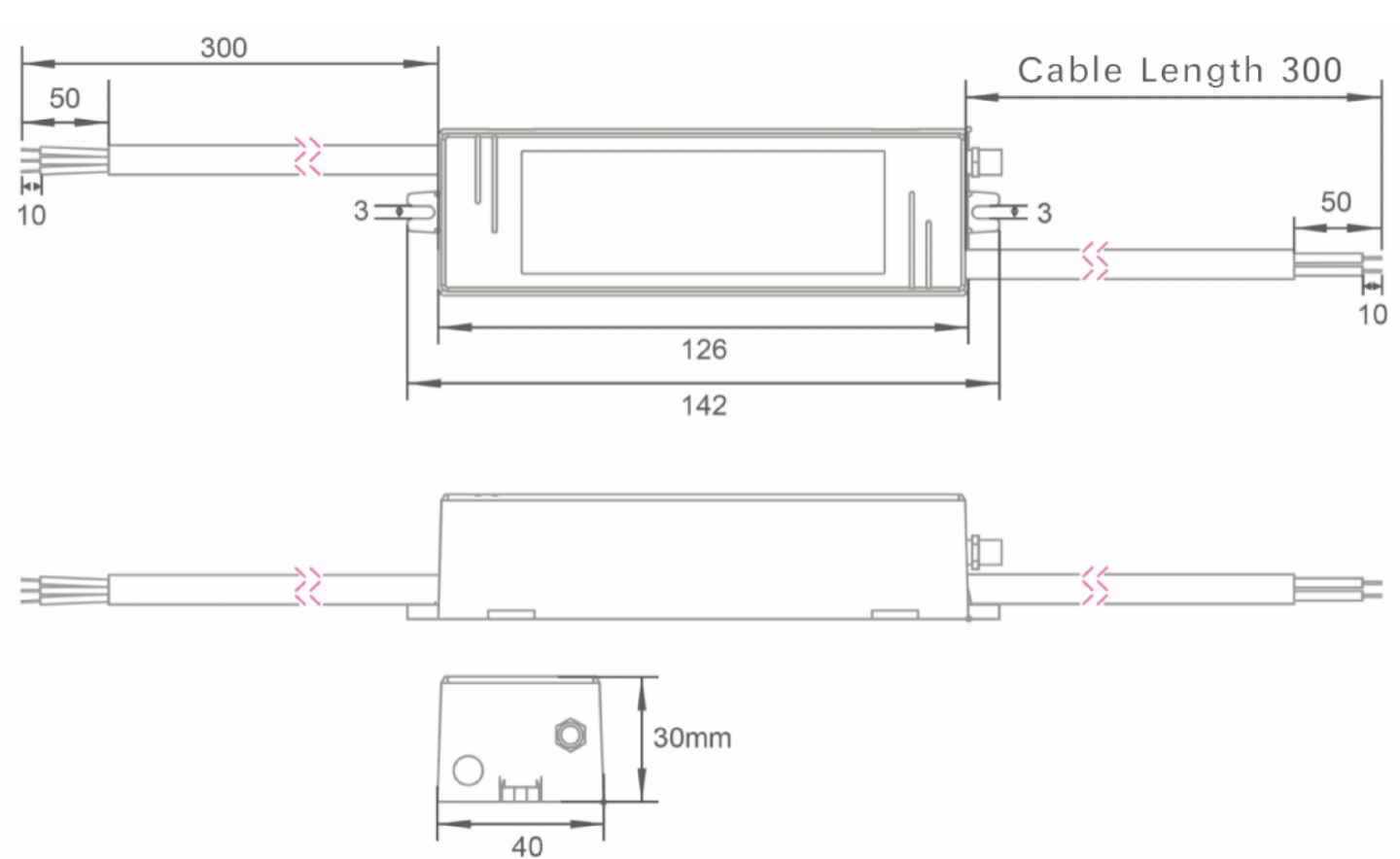

Product Dimensions
Built In Cat.1 Intelligent Single Light Controller One Channel LTE Cat.1 Fail-safe Operation
Product Features
  • 85~300VAC wide voltage input
  • Zero crossing switch, ultra-high switch lifespan
  • 6KV/3KA surge protection
  • Undervoltage/overvoltage/overcurrent fault self check report and protection
  • Class2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)
  • 126 * 40 * 30mm ultra small size
  • ESIM
  • IP67 protection rating
Technical Specifications
Power supply Rated: 100-277VAC; 50/60Hz
Limit: 85~300VAC; 47/63Hz
Dimming output 0-10VDC
Wireless communication 4G (LTE Cat. 1), External antenna, optional
Frequency band: LTE-FDD: B1/B3/B5/B8
LTE-TDD: B34/B38/B39/B40/B41
Carrying capacity ≤9A
Device power consumption Static: 1.2W
Dynamic peak: 2.4W
Working environment temperature -35~85℃
Working environment humidity 5%RH~99%RH
Shell protection IP67
Standard IEC61000-4-5; IEC61000-4-2; IEC61000-4-3, IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0
Size 126*40*30mm
Weight 0.25KG
Frequently Asked Questions
Q1: What is a Built In Cat.1 Intelligent Single Light Controller with One Channel LTE Cat.1?
A: It is an intelligent controller designed for individual lamp control, equipped with a built-in LTE Cat.1 module and one control channel, enabling independent remote management of a single light.
Q2: What are the advantages of built-in LTE Cat.1 in this single light controller?
A: Built-in LTE Cat.1 provides stable, wide-coverage cellular networking, supports direct cloud connection, simplifies wiring, and ensures reliable real-time communication without extra gateways.
Q3: What does one-channel design mean for this controller?
A: The one-channel structure means it controls one lamp or one lighting circuit independently, making it compact, cost-effective, and ideal for single-lamp intelligent control.
Q4: What functions does this intelligent single light controller support?
A: It supports remote on/off, dimming, status monitoring, fault reporting, and data uploading through LTE Cat.1, realizing refined management for individual street lights or outdoor luminaires.
Q5: In which applications is this LTE Cat.1 single light controller mainly used?
A: It is widely used in smart street lighting, park lights, garden lights, road lamps, and other outdoor public lighting scenarios requiring single-lamp independent control.
