Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Specifications
Brand Name :
LongJoin
Model Number :
JL-209-IP54
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Voltage :
0~480VAC
Rated Frequency :
50/60Hz
Shell material :
PC
IP level :
IP54
Certifications :
RoHS,UL,CE
Real-world Scenarios :
Seasonal Lighting Control
Description
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Product Summary

JL-209 (IP54) open-circuit cap is used as a protective cover for lighting equipment of NEMA sockets. Comply with ANSI136.10 installation standards. Keep the socket disconnected when not in use.

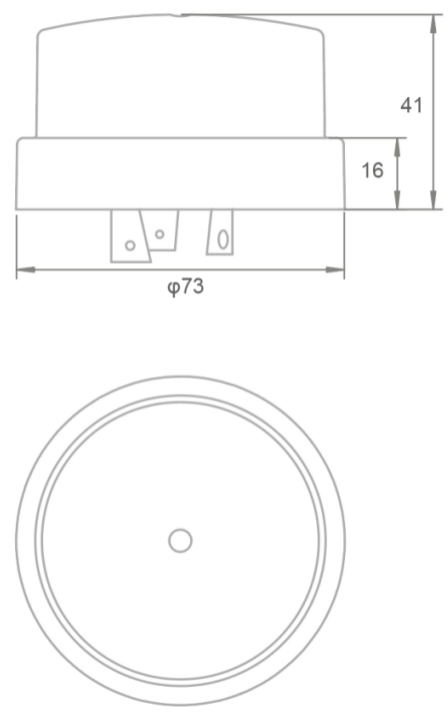

Product Size
Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Product Features
  • Intend to break a twist-lock photocontrol receptacle while under maintenance
  • ANSI C136.10 Twist-lock
  • IP66 protection while installed
  • UV stabilized Polycarbonate Enclosure
  • High impact polybutylene terephthalate base
Specifications
Model No. JL-209-IP54
Rated Voltage 0~480VAC
Rated Frequency 50/60Hz
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Shell material PC
IP level IP54
Certifications Normally Open IP54 Open Circuit Cap For Lighting Equipment Of NEMA Sockets 50Hz 60Hz
Frequently Asked Questions
Q1: What is a Normally Open IP54 Open Circuit Cap for NEMA sockets?
A: It is a safety protective cap designed for NEMA‑standard lighting sockets. It maintains a normally open circuit state when inserted, provides IP54 environmental protection, and is compatible with 50Hz and 60Hz electrical systems commonly used in lighting equipment.
Q2: What does the IP54 rating mean for this open circuit cap?
A: IP54 means the cap is protected against dust ingress and resistant to splashing water from any direction, making it suitable for indoor and protected outdoor lighting installations.
Q3: Is this cap specifically made for NEMA sockets?
A: Yes, it is engineered to fit standard NEMA sockets widely used in street lighting, floodlights, landscape lighting, industrial fixtures, and outdoor control systems.
Q4: Can this IP54 cap be used outdoors?
A: Yes, it is suitable for outdoor but sheltered locations such as under eaves, canopies, and protected lighting enclosures where IP54 protection is sufficient.
Q5: How does this cap improve safety during lighting maintenance?
A: By maintaining a stable normally open state, it prevents unexpected voltage presence in the socket, minimizing shock hazards and helping comply with electrical safety procedures.
