Specifications
Brand Name :
LongJoin
Model Number :
JL-208-IP66
Place of Origin :
China
Price :
negotiable
Packaging Details :
Different packaging methods are adopted according to different modes of transport.
Payment Terms :
Western Union,MoneyGram,T/T
Rated Loading :
7200W Tungsten,7200VA Ballast
Maximum Voltage :
0~480VAC
Shell material :
PC
IP level :
IP66
Certifications :
RoHS,UL,CE,CB,UKCA,ANSI C136.10
Real-world Scenarios :
Circuit Troubleshooting
Description
Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets
Product Summary

JL-208 (IP66) short-circuit cap is used as a protective cover for lighting equipment of NEMA sockets. Comply with ANSI136.10 installation standards. Provide power continuity for NEMA interface sockets that are not currently equipped with light controllers.

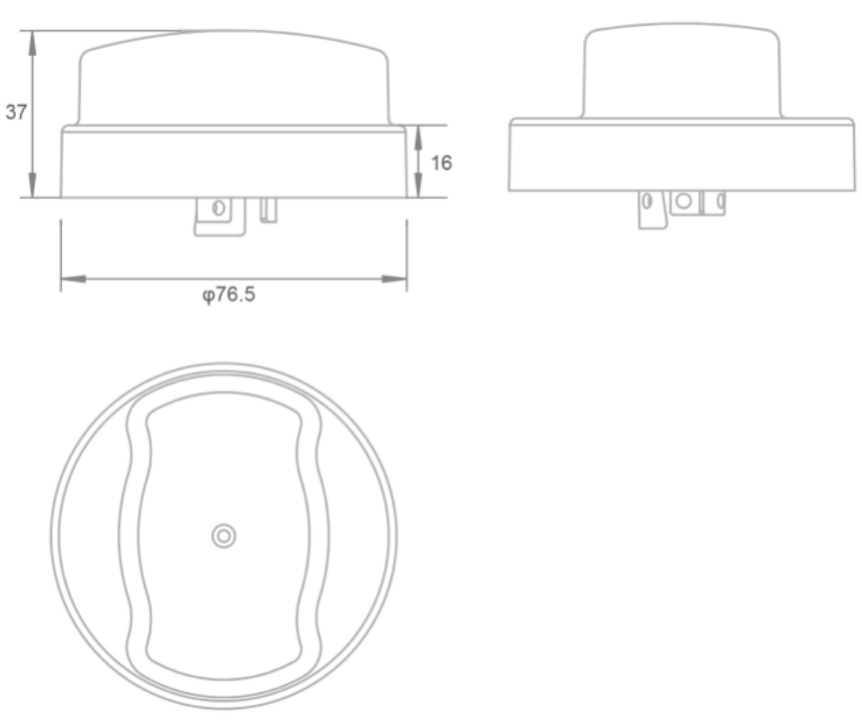

Product Size
Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets
Product Features
  • Short a twist-lock photocontrol receptacle while under maintenance
  • Applicable with both ANSI C136.10
  • IP66 protection while installed
  • UV stabilized Polycarbonate enclosure
  • High impact Polybutylene Terephthalate base
  • Easy-to-handle Twist-bar Enclosure
Specifications
Model No. JL-208-IP66
Rated Loading 7200W Tungsten,7200VA Ballast
Maximum Voltage 0~480VAC
Rated Frequency 50/60Hz
Ambient Temperature -40℃ ~ +70℃
Related Humidity 96%
Shell material PC
IP level IP66
Certifications Environment IP66 Shorting Cap Short Circuit Cap For Lighting Equipment Of NEMA Sockets ANSI C136.10
Frequently Asked Questions
What is an Environment IP66 shorting cap for NEMA sockets?
It is a heavy‑duty, weatherproof short‑circuit safety cap designed for NEMA‑standard sockets used in outdoor and industrial lighting systems. Its IP66 rating provides full dust protection and powerful water resistance, making it ideal for harsh environmental use.
What does an IP66 shorting cap do for lighting equipment?
When inserted into an unused NEMA socket, it creates a safe short circuit to discharge residual voltage, prevent electric shock, suppress arcing, and protect circuits from damage. It also seals the socket against dust, water, and corrosion.
What does IP66 rating mean for this shorting cap?
IP66 means:
  • Totally protected against dust ingress
  • Protected against powerful water jets from any direction
It is suitable for permanent outdoor use, coastal areas, and harsh industrial environments.
How is this IP66 shorting cap different from IP54 or IP44 versions?
IP66 offers significantly higher environmental protection. It is fully dust‑tight and waterproof against high‑pressure water spray, making it more durable for extreme outdoor conditions compared to IP54 or IP44 caps.
