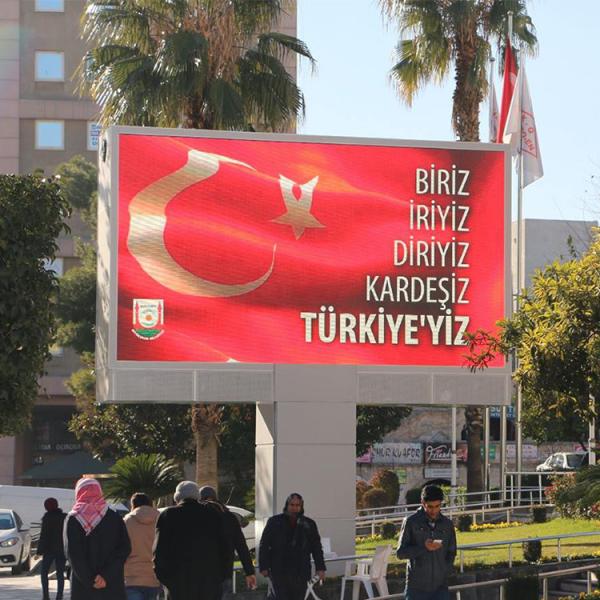

Outdoor P6 LED Screen

Part I Technicial Parameters

Led Module Specification

NO.

Item

Specification

1

Pixel Pitch

6.67mm

2

Module Resolution

W48×H24dots

3

Module Size

320*160mm

4

Led Packing

2727

5

IP Rate

65

6

IC

Constant current IC

7

LED composition

1R1G1B

Cabinet Specification

1

Cabinet Size

960*960mm

2

Module Qty

W3X H6 =18PCS

3

Physical Resolution

W144×H144dots

4

Power Consumption(MAX.)

800 W/m2

5

Power Consumption(AVE.)

240 W/m2

6

Cabinet Material

Die-casting Aluminum

7

Physical Density

22500 dots/m2

8

Net Weight

30Kg

Screen Specification

1

Brightness

4000-8000cd/m2

2

Colors

16.7 trillion

3

Brightness Control

Software 256 level adjustable

4

Gray Level

14-16

5

View Distance

6～50m

6

Refresh Rate

7680Hz

7

Drive Mode

1/6s

8

Life Span

100,000h

9

MTBF

1000h

10

Control mode

Synchronous control or Asynchronous control

11

Frame Frequency

≥60Hz

12

Certification

CE/ROHS/FCC/CCC/ISO9001/ISO14001

13

Operation Temperature

-20℃ ～ +45℃

14

Operation Humidity

10%～95%

Question 1: How can I trust your LONGDA LED factory ?

Answer : Yes, when you talk with us now , we are here . We do led since 2009 ,it is over 17years . In the past 13 years , we develop so well. Tomorrow and future , we will largely expand our LED market, you will see it .
Welcome to try our LED sample quality .
We do have100% confidence in our LED product .

Quesiton 2: If I need led very urgently ,how fast can you finish the goods ?

Answer:How fast you want ?Three days ?One week ? Definite shipping date ?
We produce LED everyday .We have some led modules in stock .
Put the most urgent and important order at the first place .
You are important to us .Surely to establish first-time good relationship .
We do must finish it at FAST ROCKET TIME.

Q3:Is it easy to install this led display ?

Answer : If you are new to LED ,we will help you to know led from ZERO to Professional .
We have installation manual book and professional engineering team to guide you .
To help you better understand LED is to make us get your earlier trust .
If you knew LED before,we can learn from each other.
We could be Future Shaking-hands Partners .
Our engineering team remote help is ready for you 24-hours .
