Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall
Specifications
Cabinet Size :
960x960mm Or Customization
Resolution :
64*32
Cabinet material :
Iron cabinet or diecasting aluminum cabinet
Brand Name :
LONGDA LED
Model Number :
Outdoor P5
Certification :
CE / ROHS / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
SHENZHEN
MOQ :
1pcs
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
10 - 15 days
Packaging Details :
Plywood case or flightcase
Model :
Outdoor P5
Scan :
8s
Warranty :
3 years
Refresh Rate :
3840Hz adjustable
Brightness :
4000-7000nits
Description

1R1G1B 16.7 Trillion Large LED Display Panel For TV 1/ 16 Scan LONGDA



Advantages :

Large screen content and CRT synchronization , simple and convenient replacement of advertising content ;

super vision , high brightness , long life with 100000h , we can offer 2 - 3 years warranty ;

the appearance is novel and unique , which can improve the level of urban science and technology .



Specifications :

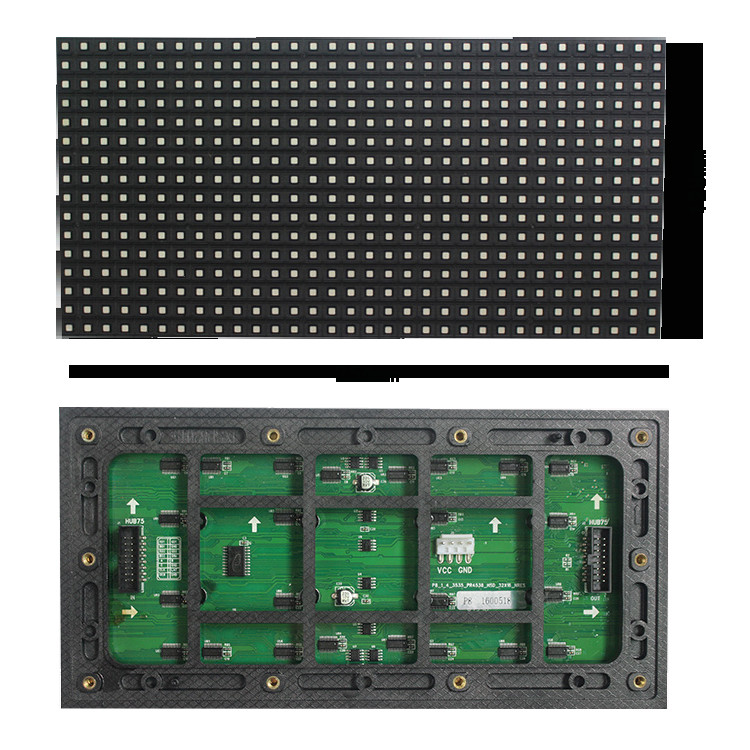

Pixel Pitch(mm) P5
LED Lamp SMD1921
Module Size 320mmx160mm
Module Net Weight 0.45kg/pcs
Maintenance Method Rear Maintenance

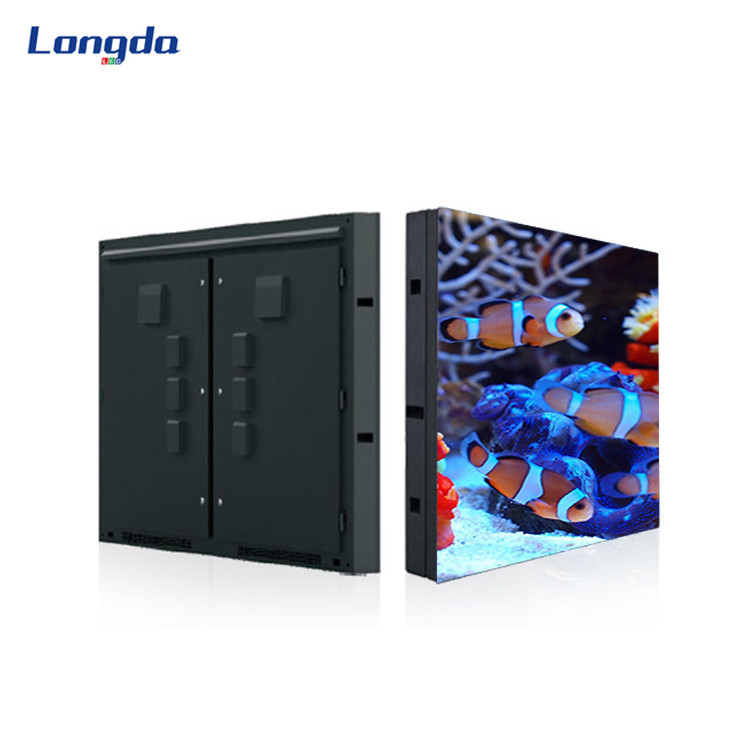

Cabinet Size 960x960mm Or Customization
Cabinet Material Die-casting Aluminum Or Standard Outdoor Waterproof Iron Cabinet
Cabinet Net Weight 49kg/m²
Thickness 137mm
Scan 8s
Brightness 4000-7000nits
Resolution 64x32
Refresh Rate ≥3840HZ
IP protection IP65
Operate Temp & Humidity -30～75℃; 10%～95% No condensation
Max Power (watts/m²) 800watts/m²
Avg Power (watts/m²) 240watts/m²
Control mode Synchronous control or Asynchronous control
Operation Temperature - 20 ℃ ～ + 45 ℃
Operation Humidity 10 % ～ 95 %
Life Span 100000h


Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall

Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall



Appliacations :

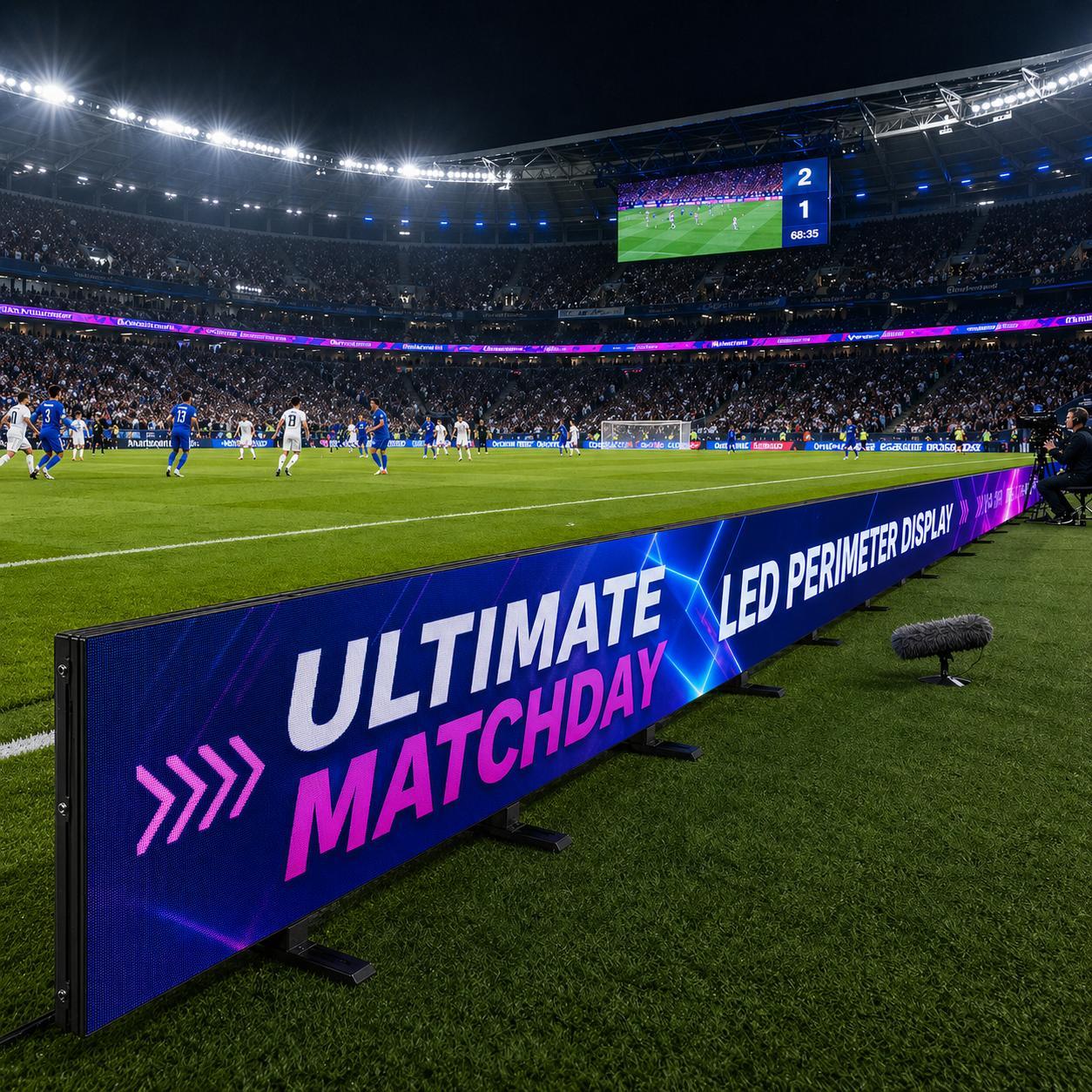

Led display P5 widely used for building advertising display wall , stadium led screen and outdoor

ads for supermarket , square , plaza and shopping mall , etc .


Led Display Cabinet Customized Advertising P5 Led TV Panel Screen Video Wall




FAQ :


Q1 . How fast can I get reply from your company ?
A : During working days , usually within 30 minutes , you will get reply from our professional sales team .

Q2 . What pixel pitch can you provide ? And what product do you have ?
A : Our Products Series from P1.25 to P10 , we offer a wide range of LED displays , manufacturing , sales ,

and exportation of indoor and outdoor rental & fixed led display , flexible LED , transparent window display ,

and customized led projects etc .


Q3 . Why should you buy from us not from other suppliers ?
A : 24 / 7 support technical support , great service is our mission .
Over 12 years OEM & ODM experiences .
Professional LED module Supplier , higher quality products with most competitive price to satisfy various needs .
