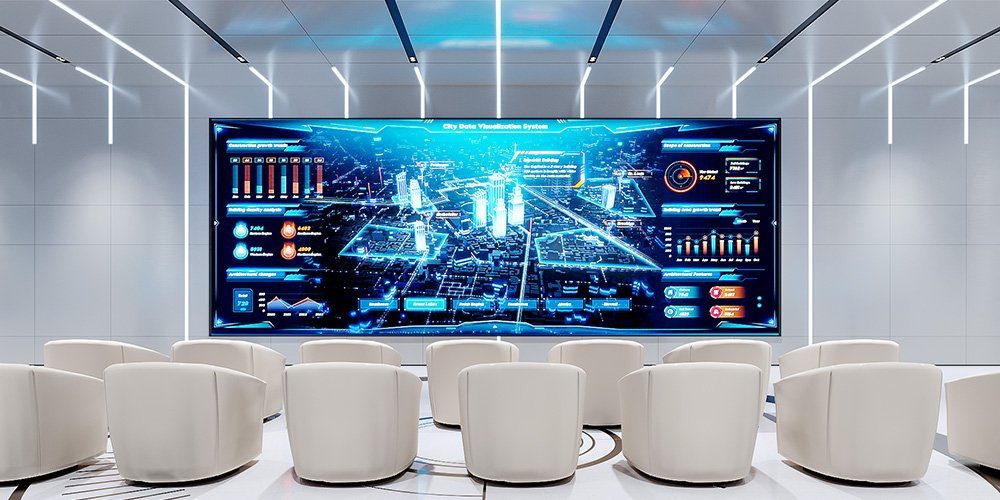

High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P
Specifications
Brand Name :
LONGDA LED
Model Number :
P1.875
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
SHENZHEN
MOQ :
1 Sqm
Price :
Usd999 ~ Usd3099 / Sqm ( price is negotiable )
Payment Terms :
L / C , T / T , Western Union , MoneyGram
Supply Ability :
1000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Pixel Pitch :
1.875mm
Usage :
Indoor
Screen dimension :
600mm * 337.5mm
Tube chip color :
Full Color
Module size :
300 x 168.75mm
Led chip :
1515
Description

Led Stage Backdrop Screen LED Video Wall Display P1.875 Small Pixel Pitch Module Screen

Advantages :

1 . Fine pitch Led display delivering true - to - life images and videos with high precision pixel pitches ,

bringing a great viewing experience to the audience at a close viewing distance ;

2 . By providing extraordinary image quality with precise colors , fine pitch Led display creates remarkable

visual experiences that keep constant over time ;
3 . 16:9 Golden division ratio : it can be point to point spliced to the led screen of standard 720P , 1080P ,

2160P , 3840P , etc .

Specification :

OPTICAL

Pixel Pitch

mm

1.875mm

LED No. Per Pixel

pcs/pixel

1

Brightness(Adjustment)

cd/m²

600~800

LED Encapsulation

-

SMD 1515

Module Resolution(W*H)

pixels

Cabinet Resolution(W*H)

dots

256*256

Pixel Density

dots/sqm

284,444

Viewing Angle(H/V)

degree

H160/V160

Color Depth/Number

bit

16,384

Grey Scale

-

14bit

ELECTRICAL

Frame Frequency

Hz/s

50/60

Refresh Rate

Hz

2880

Contrast Ratio

-

5000:1

Max Power Consumption

W/m²

660

Ave Power Consumption

W/m²

230

Working Voltage

AC

AC110V~ 220V

Drive Voltage

DC

15V

Color Temperature

-

Working Temperature

ºC

-0ºC-40ºC

Humidity

-

10%-85%RH

Driving Method

-

1/32scan

MECHANICAL

Frame Material

-

Die-casting aluminum

Module Size

mm

Net Weight

kg/pcs

6

Weight Per Tile

lbs

13.24

Cabinet Size

mm

480*480*67

IP Rating

-

IP30

Lifetime

hours

100,000

Service Access

-

front/rear

Application

-

Indoor

High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P

High Precision Small Pitch LONGDA LED Display Durable 2160P 3840P


Led Display Service for customers :


1 . We provide pre - sale service in technical consultation , for example , recommending and designing solutions

as pre the customers request , which help lower the risk of customers` investing .

2 . In the process of production , gloshine follows up the tightly and accept the supervision from the clients .

Necessary trainings are also provided to the customers .

3 . For the after - sale service , Noveled takes the great responsibility to collect customer ' s feedback ,

inspection and maintains products periodically to ensure solving problems timely .
