Specifications
Cabinet material :
diecasting aluminum cabinet
Model :
Wedding LED P3.91
Cabinet Size :
500*1000mm/500mm*500mm
Resolution :
64*64
Scan :
16s
Refresh Rate :
3840Hz adjustable
Warranty :
3 years
Brand Name :
LONGDA LED
Model Number :
Wedding LED P3.91
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
ShenZhen , China
MOQ :
1 Sqm
Price :
price is negotiable
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
flightcase
Brightness :
4500cd/m²
Description


Wedding Led Screen Stage Display IP65 Outdoor Wedding Decoration P3.91




Product Introduction

Wedding led screen stage display IP65 outdoor P3.91 has high definition and high resolution

with wonderful visual performance ; ensures the spectators far from the screen can still

enjoy what is shown and guarantee superior performance even with small screen size .


Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance


Technical parameters


Module Specification
Pixel Pitch 3.91mm
Pixel Configuration 1R1G1B
Module Resolution 64 x 64 pixels
Module Pixles 4096 pixels
Module Size 250mm X 250mm
LED Type SMD1921

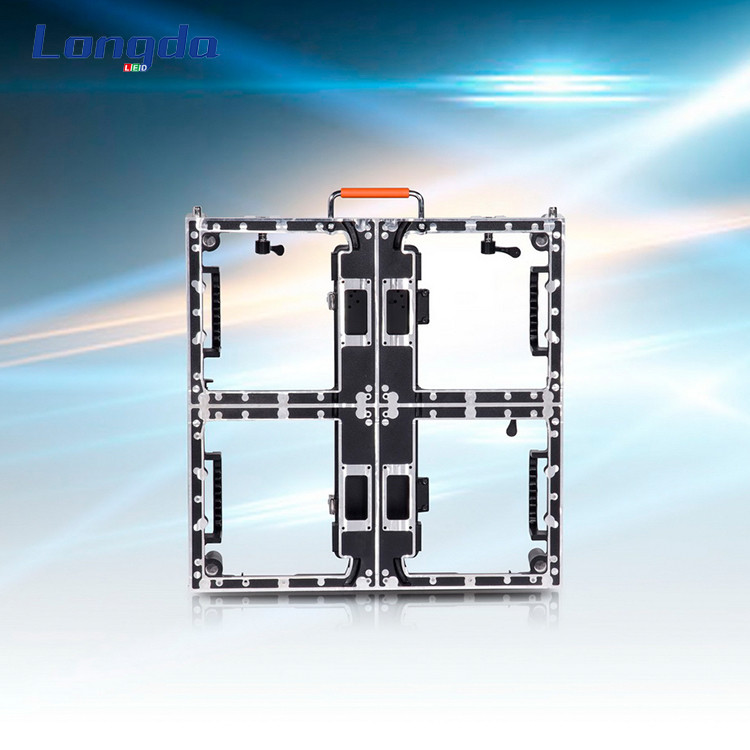

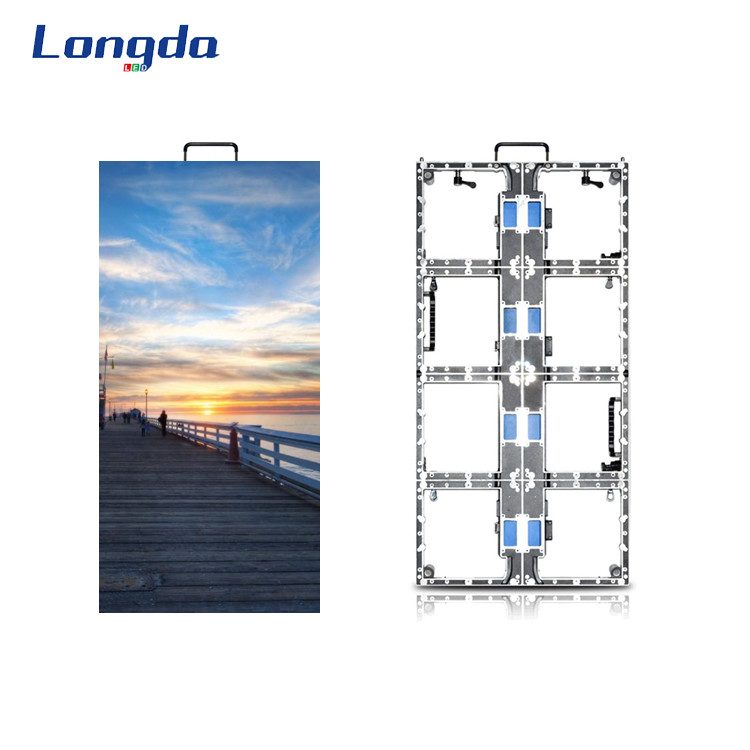

Cabinet Specification
Cabinet Size(W X H ) 500mm*1000mm 500*500mm
Cabinet Resolution(dot) 128 *256 pixels 128*128 pixels
Module Quanity (pcs) 8pcs 4pcs
Cabinet Pixels 32768 pixels 16384 pixels
Cabinet Weight 10 kg per cabinet 7 kg per cabinet
Cabinet Materials Die Casting Aluminum Cabinet for rental purpose
Packaging Fly case


Whole Screen Specification
Screen Brightness ≥4500cd/m²
scan 1/16 scan
Best Viewing Distance 3.91m - 40m
Max. Power Consumption 600W/m²
Average Power Consumption 180W/m²
Gray Level 65536 levels(16 bit )
Display Color 16M
Frame Frequency ≥60Hz
Uninterrupted Working Hours ≥72 hours
Refresh rate 3840Hz adjustable
Screen Life-span ≥100,000 hours
MTBF ≥5,000 hours
Discrete Blind Spot Rate <1/10000
Blind Spot Rate <1/10000
Protective Scale For indoor use only
Screen Plainness <±1mm
Power Supply Mode AC220±10% 50Hz/AC110±10% 60Hz
Control Mode Synchronous display with control PC by DVI
Control System Linsn, Novastar or as you required
Display Content Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc.
Interface Standard Ethernet
Certificate CE , ROHS , FCC , CCC ,ISO9001 , ISO14001


Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance

Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance



Features

Our P3.91 with high definition and high resolution, high brightness, high refresh rate,

the appearance is very elegant, it looks very high end and quality is stable and durable;

applied with 500*500mm/ 500mm*1000mm cabinet, so easy to calculate the area of LED screen;
very strong and precision is very high, tolerance can be
controlled in 0.1mm so the surface is very smooth,

almost no gap between cabinets;

the side locks is spring locks, this is unique among all die-casting aluminum cabinets,

especially popular in European market and North American market.


Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance


Wedding LED Video Wall Screen Display P3.91 1/ 16 Scan With Wonderful Visual Performance



Your questions


Q1 : LED display models are generally expressed in PX , such as P2 , P3 , P4 ..... P8 , P10 , what does this mean?
A : P1.25 , P2 , P3 , P4 ..... P8 , P10 means that the pixel pitch is 1.25mm , 2mm , 3mm , 4mm ....10mm ,

which determines resolution of a display . Pixel pitch is smaller , led display resolution is higher .

Q2 : What pixel pitch should I choose on my display ?

A : Using the PX screen , it is determined mainly by the viewing distance , the size of the

display screen , the desired effect and the customer budget .

Q3 : To order a display , What kind of information do I have to offer you ?
A : You should provide width / height of the display , the main use , the viewing distance ,

the scene photos , special requirements , then I can provide you with a detailed list of quotations .

Q4 : How to install ?
A : Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram ,

free remote debugging . We can also send our engineers to the site to guide the installation if needed .

Q5 : What about the lead time ?
A : Orders less than 50 square meter display , lead time is 15 working days .

Q6 : Can I order a sample ?
A : Yes , your sample orders are welcome , after checking our quality and service ,

we are confident that you will come back for your future orders .
