P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB
Specifications
Cabinet Size :
Or 250*1235/250*1535. Maximum height 1.5m
Resolution :
64*256
Brand Name :
LONGDA LED
Model Number :
Window Display Transparent P3.91
Certification :
CE / RoHs / FCC / CCC / ISO9001 / ISO14001
Place of Origin :
ShenZhen , China
MOQ :
1 Sqm
Price :
Usd1275~Usd1475/Sqm price is negotiate
Payment Terms :
L / C,T / T,Western Union
Supply Ability :
5000sqm per month
Delivery Time :
15 - 18 days
Packaging Details :
Flight case packing or Plywood case packing
Refresh Rate :
3840Hz adjustable
Model :
Window Display Transparent P3.91
Brightness :
≥3000cd
Warranty :
3 years
Description

Led Window Display Screen AC8 5V Transparent LED Video Wall Screen RGB



Advantages

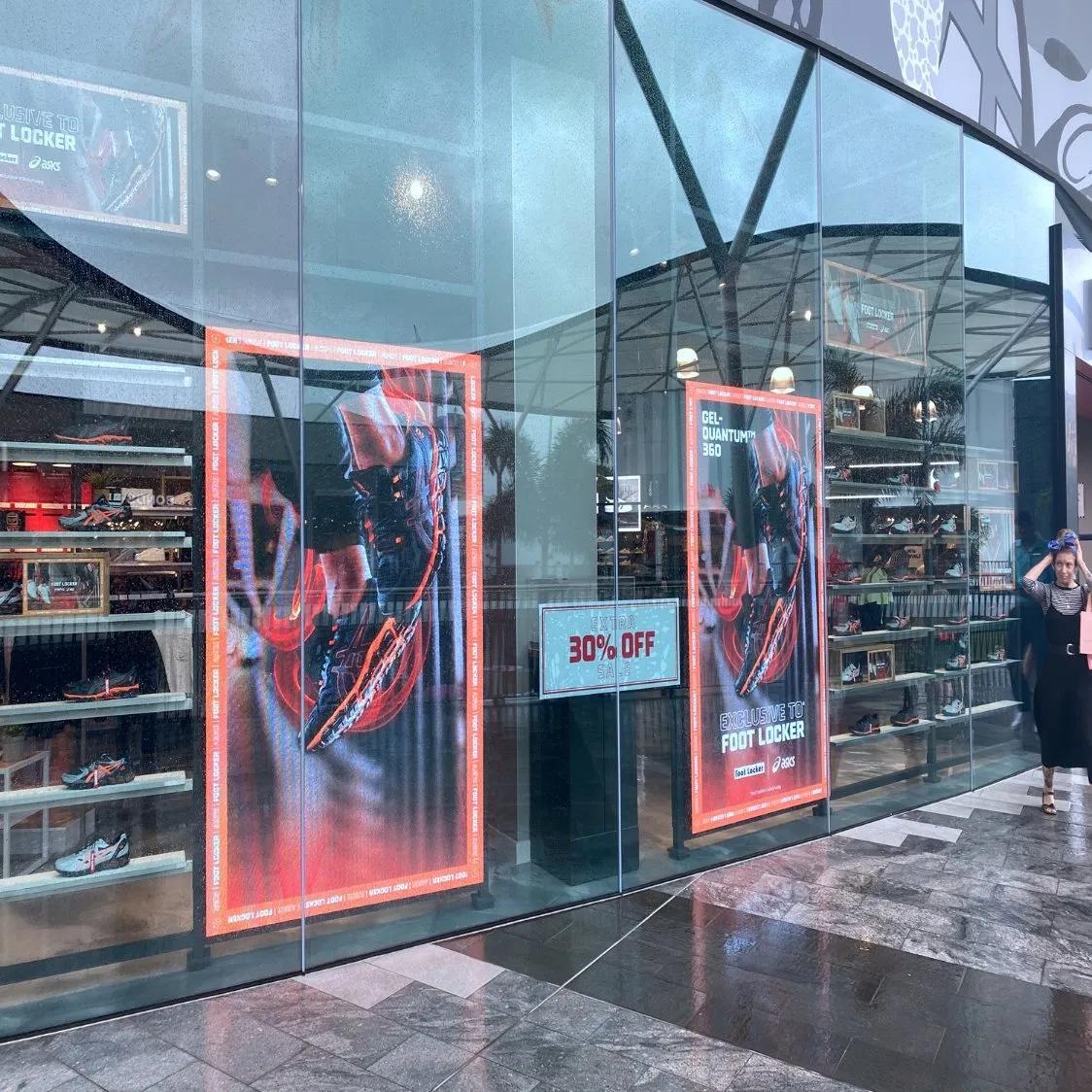

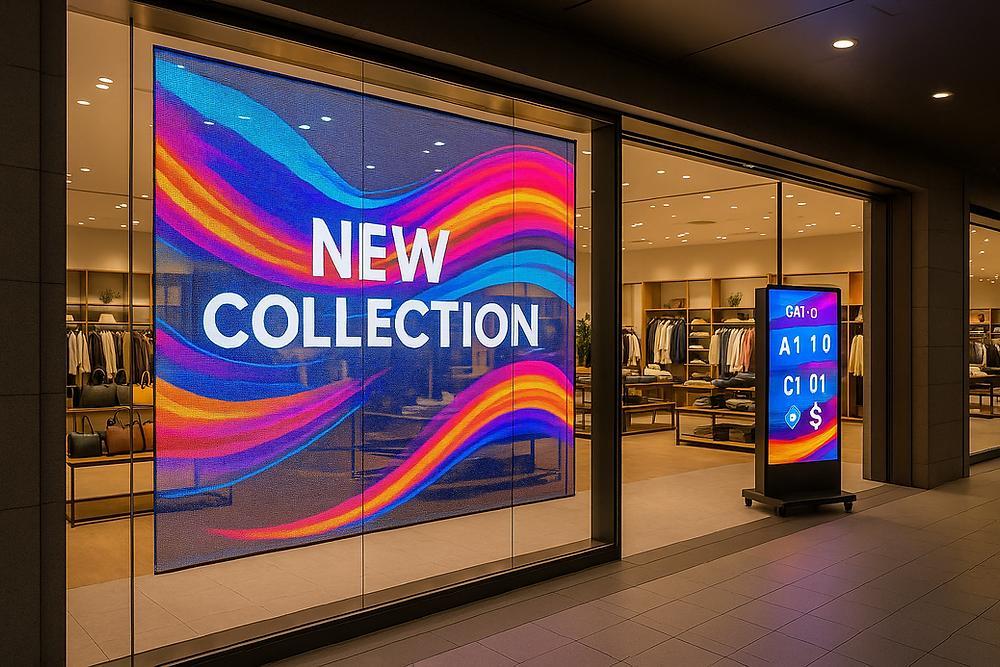

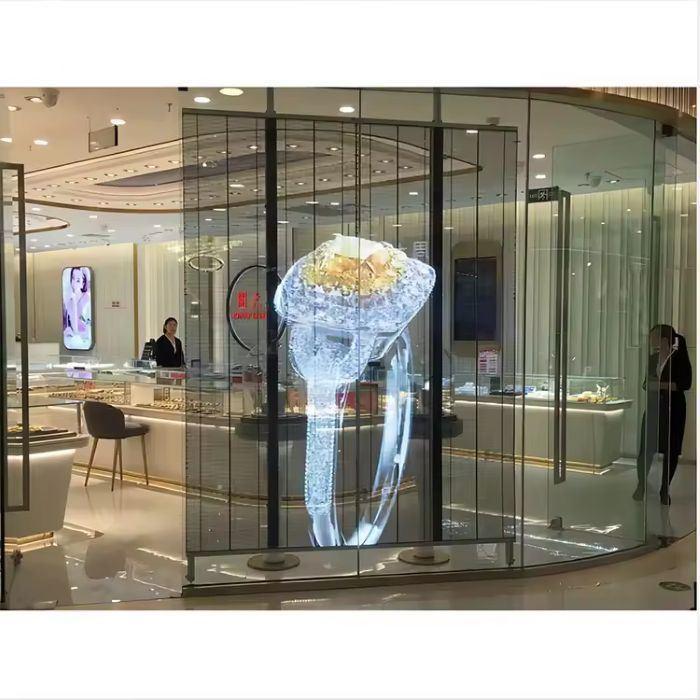

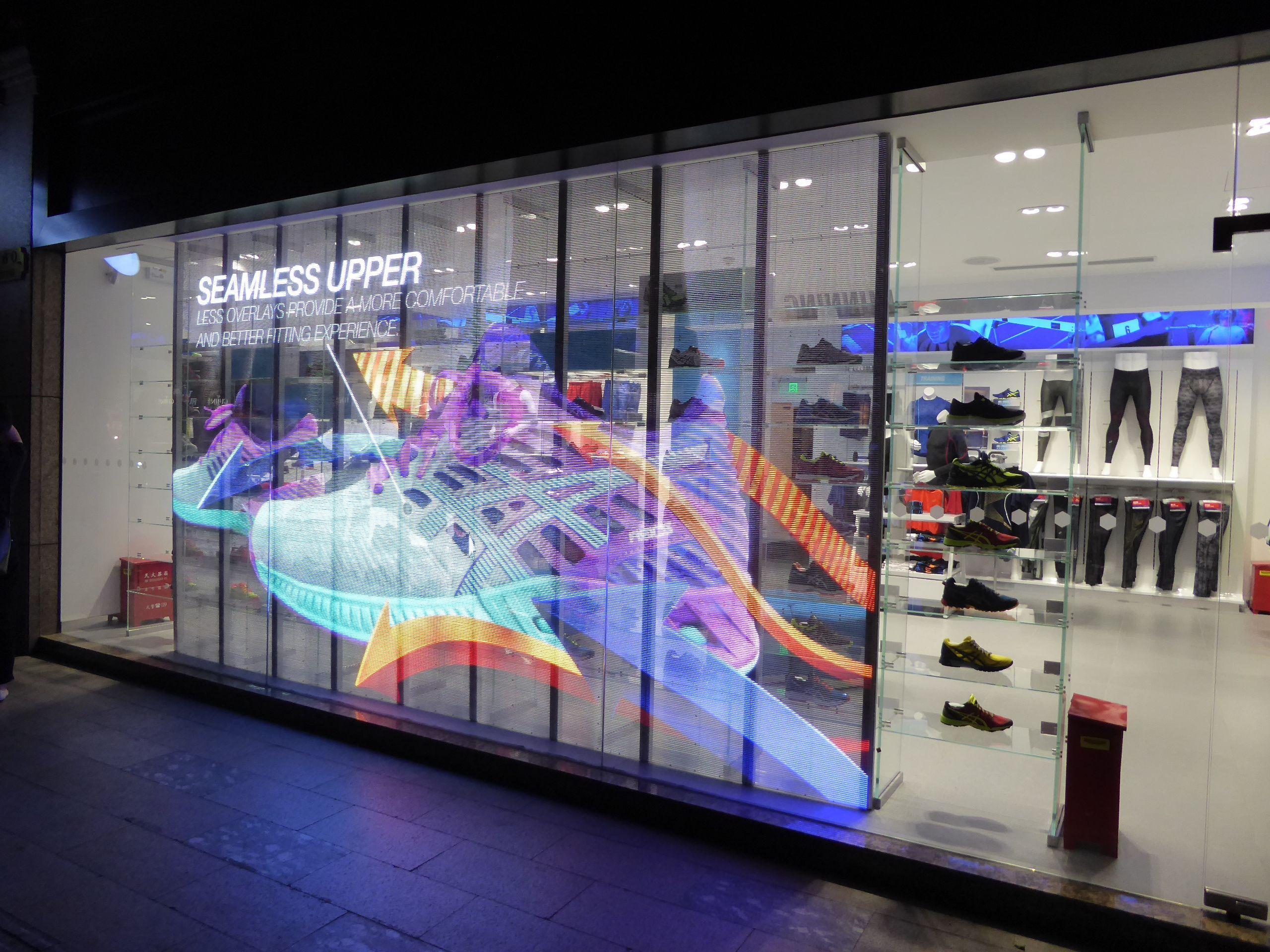

P3.91 Led window video screen is directly fixed on the glass curtain wall without changing the structure

of the building, no steel frame structure, saving a lot of installation and maintenance costs;

Does not take up space, ultra light-weight and high brightness with 5000cd/m².


P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB




Specifications


Pixel Pitch P2.5 P3.91 P6.25 P10.4
Resolution(dot/m²) 160000 65536 25600 9216
Pixel Density 50*400 64*256 40*192 24*96
Standard Module size(mm) 125*1035 250*1035 250*1235 250*1035
Size Remarks Or 125*1235.
Maximum height 1.5m		 Or 250*1235/250*1535.
Maximum height 1.5m		 Or 250*1535.
Maximum height 1.5m		 Or 250*1535.
Maximum height 1.5m
Lamp Bead 2121 Two in one 2121 Two in one 2121 Two in one 2121 Two in one
Refresh Rate ≥3840Hz ≥3840Hz ≥3840Hz ≥3840Hz
Brightness ≥1800cd ≥3000cd ≥4500cd ≥5000cd
Transparency 70% 80% 90% 93%
Thickness 2mm
Weight/module 1.2kg
Grayscale 16bit
Contrast Ratio 4000:1
Max Pc(W/m²) 800
Ave Pc(W/m²) 240
Viewing angle V&H 140°/140°
Frames Per Second 60Frame/S;
High refresh model supports 3D & 120Frame/S
Color temperature (K) 2000K-9500K
(adjustable)
lnput operating voltage AC:110V~240V
50~60Hz
Ave trouble-free working time(H) ≥10000
LED Life time (H) 100000
Operating temperature(℃) -10～60℃
Operating humidity (RH) 10%～90%
No condensation
Installation Mode Glass-mounted;
Hanging; Inner Arc Installation; Supporting Size Cutting, Bending.
Full-screen (Hanging) L*W*H 758* 70*1323mm
(70mm: Control box)		 5000* 70*2400mm
(Max H*3m)		 / /
Full-screen (bracket Glass-mounted) L*W*H 2000*1200mm
(Max H*1.5m)
(bracket customized)		 2008*382*2449 mm
(382mm: bracket)		 / /



P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB

P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB

P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB




Waterproof And High-Quality transparent led display screen Application Fields

There is a wide variety of outdoor LED curtain screen resolutions in the market.

Outdoor curtain LED displays have been gaining popularity, mostly due to major technological advancements like increased brightness levels and better picture quality.

They are widely used in Museums, Shopping malls and Exhibition events.

P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB


Quality and service

1 . Strict quality control :
The quality of our display is excellent.
We use the materials of high-quality suppliers in the world, strictly control the production process,
and pass the multiple quality inspections to ensure that every product is qualified.

2 . Quality guarantee :
All our LED display screens are more than 100,000 hours of life span.

3 . Long warranty :
2-3 years warranty, any quality problem during warranty time will be handled.

4 . Prompt & Professional service :
Any inquiries will be replied to within 24/7 hours and you'll get helpful suggestions from us.



P3.91 Led Window Display Screen AC85V Transparent LED Video Wall Screen RGB




FAQ

1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A: P1.25, P2, P3 P4.....P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm....10mm,

which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.

2: To order a display, What kind of information do I have to offer you?
A: You should provide width& height of the display, the main use, the viewing distance, the scene photos,

special requirements, then I can provide you with a detailed list of quotations.

3: How to install?
A: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,

free remote debugging. We can also send our engineers to your site to guide the installation if needed.

4: What about the lead time?
A: Orders less than 50 square meter display, lead time is 18-25 working days.

5: Can I order a sample?
A: Yes, your sample orders are welcome, after checking our quality and service,

we are confident that you will come back for your future orders.
