Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment
Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment
Specifications
Brand Name :
longdai
Model Number :
ZBG-3
Certification :
ISO9001 CE
Place of Origin :
jiangsu China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C,T/T
Supply Ability :
500 sets per Years
Delivery Time :
20 days
Packaging Details :
Export polywood
Product name :
sludge scraper,mud scraper
Application :
Wastewater Treatment Plant
Length :
Orders Requirement
Raw material :
Stainless Steel SUS 304
Voltage :
380V /Customized
Type :
Automatic
Usage :
LIQUID-SOLID SEPERATION
Function :
Solid Liquid Separator
Keywords :
Water Treatment System Device
Description

Stainless Steel Traveling Bridge Sludge Scraper and Suction Machine for Wastewater Treatment

This traveling bridge-type sludge removal system is designed for horizontal sedimentation tanks in municipal and industrial wastewater treatment plants. It efficiently collects and extracts settled sludge by traversing the tank length, simultaneously scraping and pumping out the waste for continuous tank cleaning and optimal sedimentation performance.

Product Features

  • Robust & Lightweight Truss Structure: The bridge utilizes a high-strength truss design that is lighter than conventional structures, reducing overall weight while extending service life. Travel wheels are made of hardened steel for enhanced durability.

  • Low Operation & Maintenance Costs: Requires minimal maintenance, features low power consumption, and is equipped with optimally selected pumps for stable, reliable, and cost-efficient performance.

  • Precise Travel Control: An advanced drive mechanism ensures synchronized movement on both sides, eliminating tracking errors and preventing deviation during operation.

Main Components
The system primarily consists of:

  • Traveling bridge frame

  • Submerged suction pumps

  • Sludge suction pipes and discharge headers

  • Bilateral drive unit

  • Electrical control cabinet

  • Running tracks and travel switches

  • Cable management system (cable reel or sliding collector)

Working Principle
The equipment is supported by a dual-beam structure that spans the sedimentation tank, with bilateral drives ensuring balanced movement. Rails installed on both sides of the tank guide the machine. As it travels from one end of the tank to the other, the submerged suction pumps extract sludge while in motion. Upon reaching the end of the tank, the machine automatically reverses direction after contacting the limit switch, returning to the starting position while continuing suction operations, completing a full working cycle.


Parameters


Model NL 3xL NL 4.5xL NL 5xL NL 6xL
Pool width B(m) 3 4.5 5 6
Recommended pool length L(m) 8~16 8~16 8~16 8~16
Recommended pool depth H(m) 3.5 3.5 3.5 3.5
Driving power(Kw) 2.2 2.2 2.2 3
Scraper moving speed (m/min) 1 1 1 1
Scrch spacing(m) 2 2 2 2
Incoming water turbidity(mg／L) ≤500 ≤500 ≤500 ≤500

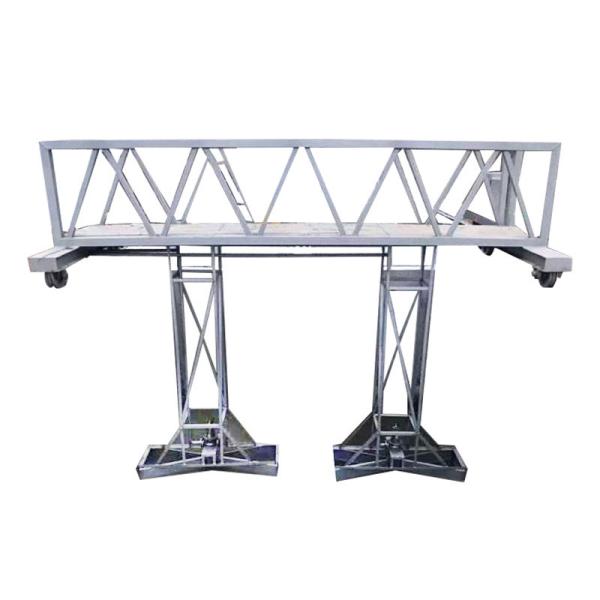

Real Picture

Horizontal Traveling Scraper System - Stainless Steel Wastewater Treatment

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept? A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
