5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
Specifications
Brand Name :
longdai
Model Number :
JY-500
Certification :
ISO9001
Place of Origin :
jiangsu China
MOQ :
1 set
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
2500 sets per Years
Delivery Time :
20 days
Packaging Details :
Export polywood
Product name :
Dosing System,dosing device
Application :
Municipal
Type :
Automatic
Material :
Stainless Steel 304
Function :
Remove Chlorine
Usage :
CHEMICAL LIQUID TREATMENT
Capacity :
Customerized
Voltage :
380V /Customized
After-sales Service Provided :
Video Technical Support Online Support
After Warranty Service :
Onlines Upport
Description

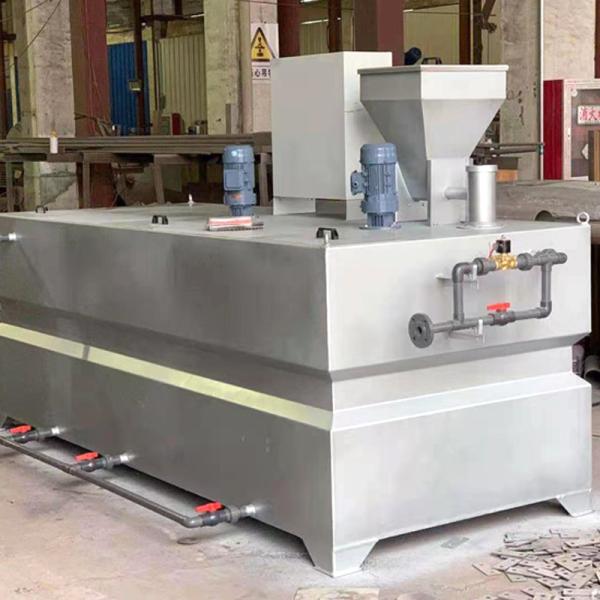

5m3/H integrated Chemical dosing system phosphate dry powder automatic dosing device

Chemical dosing system is a complete set of equipment with dosing, mixing, transporting liquid and automatic control. It is also called chemical feed system or dosing machine.

Chemical dosing is the adding of chemicals into water/fluid or sludge to achieve required conditioning. This would make the treatment effective by various mechanisms such as charge neutralisation, settling of solids etc.

The Automatic Dosing System (ADS) is an electronically-operated dispenser that accurately and consistently applies your choice of specially-formulated water treatments to your water feature. The automatic dosing process eliminates the guesswork and routine associated with adding water treatments manually.

Process description
A dosing pump draws a measured amount of liquid into its chamber and injects the chemical into a tank or pipe that contains the fluid that is being dosed. It's powered by an electric motor or an air actuator and has a controller that turns the pump on and off and manages the flow rate.
Parameters
Type QJY-500 QJY-1000 QJY-1500 QJY-2000 QJY-3000 QJY-4000
production abilityQ(L/h) 500 1000 1500 2000 3000 4000
Size 900x1500x1650 1000 x 1625 x1750 1000 x 2440x1800 1220 x 2440 x180C 1220x3200x2000 1450x3200x2000
Powder Dosing PowerNi(KW) 0.18 0.18 0.18 0.18 0.18 0.18
blender Blade diameterG(mm) 250 250 250 250 250 250
Vertical spindle speed(i/min) 96 96 96 96 96 96
PowerN2(KW) 0.55 x 2 0.55x2 0.55 x 2 0.55x2 0.55x2 0.55 x 2
Dosing screw pump Flow Q2(mV h) 1 1 1.5~2.0 1.5-2.0 3.0~ 5.0 3.0-5.0
Lifth(m) 20 20 20 20 20 20
Power N3(KW) 1.1 1.1 1.5 1.5 2.2 2.2
Water Inlet Dia(mm) 20 20 25 25 32 32
Water outlet Dia(mm) 20 20 25 25 32 32
Installation B 900 1000 1000 1220 1220 1450
L 1500 1625 2440 2440 3200 3200
H 1650 1750 1800 1800 2000 2000
Hi 800 1050 1050 1050 1350 1350

Customer case
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
Real picture
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
5m3/H Integrated Chemical Dosing System Phosphate Dry Powder Automatic
Company Profile
Jiangsu Longdai Environmental Protection Group Co., Ltd. is an environmental protection equipment
manufacturer with 11 years of experience. It has provided a large number of sophisticated
environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment,
Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water
separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures
the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for
mutual benefit and win-win results.
FAQ
Q: How Can I Find The Suitable Model?

A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.

Q: Where Is Your Factory Located?

A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.

Q: Do You Provide OEM Service?

A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.

Q: How About The Production Capacity Of Your Company?

A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.

Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?

A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.

Q: Do You Offer After-Sales Service?

A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service.
