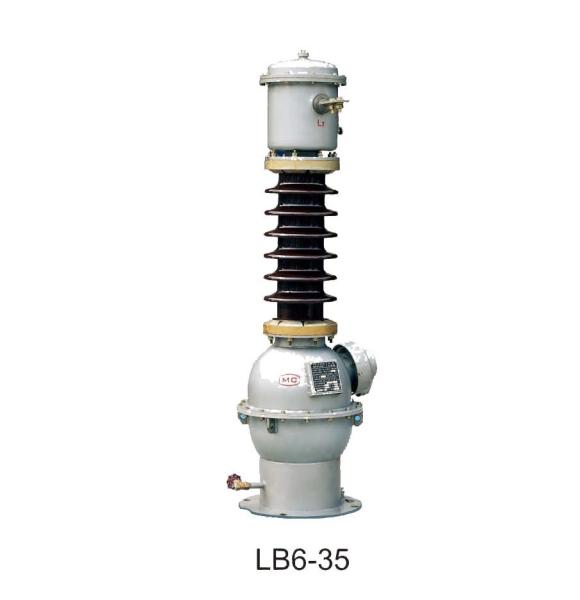

LB6-35KV 110KV High Voltage Oil Immersed Current Transformer
LB6-35KV 110KV High Voltage Oil Immersed Current Transformer
Specifications
Brand Name :
XG
Model Number :
LB6
Certification :
ISO,CCC
Place of Origin :
XIAN,CHINA
MOQ :
1-3 SET
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
2000SET
Delivery Time :
7-15 DAYD
Packaging Details :
WOODNE CASE
Rated voltage :
35kv 110kv
Phase :
three
Usage :
current and voltage protection
Coil Structure :
TOROIDAL
Coil Number :
AUTOTRANSFORMER
Rated Frequency :
50HZ/60Hz
application :
outdoor
type :
oil type
Description

1. LB6-35KV 110KV Single Phase High Voltage Oil Immersed CT Current Tranformer

33kV 35kV 36kV oil immersed Current Transformer
1.outdoor type
2.single phase
3.rated voltage :33kv , 35kv, Max.system voltage :36kv ,40.5kv

4.accuracy class: 0.2 , 0.5 , 1 , 10P , 5P10

5.Burden :from 30VA to 100VA

6.Rated primary curent : 5A to 1000A

7.Rated secondary current :5A or 1A

8.Rated insulation level : 36/70/170kv ; 40.5/80/200kv

9.Standard:IEC60044-1

2. Data

Rated Transformation

Ratio(A)

Accuracy Class

combination

Rated

output (VA)

1S Thermal

Current(KA/S)

Rated Dynamics

Current(KA)
5

0.2s/10P20/10P20

0.2/10P20/10P20

0.5/10P20/10P20

 15 30 40 40 30 0.5 1.28
10 1 2.55
15 1.5 3.83
20 2 5.1
30 3 7.65
40 4 10.2
50 5 12.75
75 7.5 19.13
100 10 25.5
150 15 38.3
200 20 51
300 30 76.5
400~2000/5 40 102

3. Drawings
LB6-35KV 110KV High Voltage Oil Immersed Current Transformer

LB6-35KV 110KV High Voltage Oil Immersed Current Transformer

4. Factory

LB6-35KV 110KV High Voltage Oil Immersed Current Transformer

5. FAQ

1. All our activities are accredited to ISO 14001:2015 and IEC standard.

2. Send the technical data, better for all useful information; we will make a good recommendation.

3. The lead time depend on quantity of order. Some standard type is on stock. Otherwise, it will take 3-15 days.
