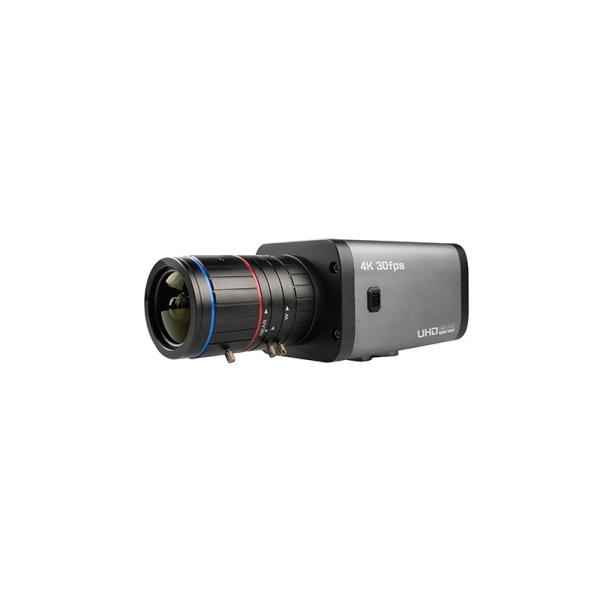

Broadcast-quality 4K 30fps / HD Camera
Broadcast-quality 4K 30fps / HD Camera
Specifications
Brand Name :
Snuke
Model Number :
LN330-4K30F
Certification :
CE
Place of Origin :
China
Description

Model Specification: LN330-4K30F
Image Sensor: 1/1.8" CMOS Sensor
Total Pixels (MP): 3840 (H) x 2160 (V) = 8.29M Pixels
Effective Pixels (MP): 3840 (H) x 2160 (V) = 8.29M Pixels
SDI Output Resolution: 1080p @ 50/60fps; 2160p@30/25fps
HDMI output resolution: 1080p @ 50/60 frames per second; 2160p@30/25fps
Output format: (Supports HD/EX-SDI in 1080p mode), (Only supports EX-SDI in 2160P mode)
Lens C-CS: Automatic aperture
Menu function: Supports key function menu
485/UART: One of two options / Default 485
Minimum illumination (LUX): Color 0.59 lux / Black and white 0.33 lux
Aperture mode/IRIS: Automatic aperture / Fixed aperture
Edge detection/DEGE DET: On/Off
Exposure: Brightness threshold adjustment / Electronic shutter mode / Frame accumulation threshold adjustment / Automatic gain threshold adjustment
Day/Night Switch: Automatic (ICR)/Color/Black and White/External trigger
Color: White balance (AWB) mode adjustment / Color concentration adjustment
Noise Reduction: Off/Low/Medium/High
Image: Sharpness/Gamma/Horizontal mirror/Vertical flip/Digital zoom/(ACE contrast)/(DEFOG dehazing)/Privacy masking
System: Communication protocol/Output frame rate/Video range/Color format/Audio format/Bar signal/Camera name/Reset/Language
Language: Chinese (Simplified & Traditional)/English/Japanese/Korean
Power (V): DC12V + 10%
Working current (mA): 620mA
Operating temperature (℃): -20°C to +80°C / 0% to 90% RH
Size (mm): 73(W) x 73(H) x 140(L) mm
Installation method: Front mounting/Back mounting/ (1/4" screw hole)
Weight (g): 0.42 Kg
