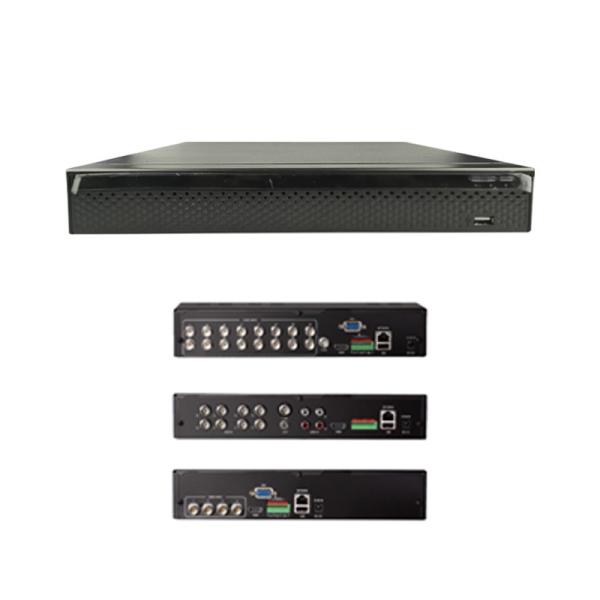

8CH HD SDI DVR Video Recorder 1080P@120fps 5-In-1 Industrial Recorder With Dual SATA And EX-SDI 2.0
8CH HD SDI DVR Video Recorder 1080P@120fps 5-In-1 Industrial Recorder With Dual SATA And EX-SDI 2.0
8CH HD SDI DVR Video Recorder 1080P@120fps 5-In-1 Industrial Recorder With Dual SATA And EX-SDI 2.0
8CH HD SDI DVR Video Recorder 1080P@120fps 5-In-1 Industrial Recorder With Dual SATA And EX-SDI 2.0
Specifications
Brand Name :
Snuke
Model Number :
LNE-704
Certification :
CE
Throughput :
120fps
Playback :
128x Speed
Input Flexibility :
6 Hybrid Protocols
Output Quality :
2K HDMI
Description

LNE-704 HD-SDI DVR - Quick Detail

✅ 8CH 1080P@15fps Sync Recording
✅ 5-in-1 Integration (DVR/Splitter/PTZ/Alarm/Network)
✅ H.264 Encoding (50% Storage Saving)
✅ Multi-Protocol Support: EX-SDI 2.0/TVI/AHD/CVI/IP

Product Description

Engineered as the nerve center for critical surveillance, the LNE-704 revolutionizes security management by integrating five core functions into a single 1U chassis.

Leveraging EX-SDI 2.0 technology, it delivers zero-latency 1920×1080 transmission while H.264 Main Profile encoding reduces storage needs by 50%.

Dual SATA bays support 8TB capacity for 90-day continuous operation in high-risk facilities.

Technical Specifications

Parameter Specification
Model LNE-704
Recording Capacity 1920×1080@15fps × 8 channels
Codec H.264 Main Profile
Playback Speed 1x to 128x Smart Scaling
Video Output HDMI (2560×1440) + VGA
PTZ Control RS-485 (Pelco-D/P Compatible)
Alarm I/O 1 In / 2 Out
HDD Support Dual SATA (4TB × 2 Max)
Protocols EX-SDI 2.0, TVI, AHD, CVI, 960H, IP

Core Applications

  • Bank Vaults: 8CH sync recording eliminates blind zones

  • Traffic Checkpoints: 128x playback accelerates license plate retrieval

  • Assembly Lines: Motion detection triggers incident logging

Key Features

Real-Time Processing

    • 120fps Total Bandwidth: Ensures fluid multi-camera monitoring

    • EX-SDI 2.0: 100m signal transmission without degradation

Competitive Edge

Feature LNE-704 Standard DVRs
Throughput 120fps ≤80fps
Playback 128x Speed 64x Max
Input Flexibility 6 Hybrid Protocols 3-4 Protocols
Output Quality 2K HDMI 1080p
