LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
LN-F001 SDI To AV Converter With Metal Housing ESD Protection 300m Distance
Specifications
Brand Name :
Lntech
Model Number :
LN-F001
Certification :
CE ISO
Place of Origin :
China
MOQ :
1
Price :
$58
Payment Terms :
T/T
Supply Ability :
2500
Delivery Time :
7-15 working days
Packaging Details :
Carton
Signal Conversion :
SDI to composite video (CVBS) + stereo audio
Signal Distribution :
SDI loop-through output for daisy-chaining
Transmission :
Up to 300m (SD-SDI), 200m (HD-SDI), 100m (3G-SDI)
Compatibility :
Supports all SDI standards; PAL/NTSC output
Operation :
Manual PAL/NTSC selection button
Build :
Metal housing, ESD protection, compact size
Description
LN-F001 SDI to AV+SDI Converter

Model: LN-F001

Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)

Outputs: 1× BNC (SDI out), 3× RCA (CVBS, L, R)

Video Output: PAL/NTSC

Max Distance: 300m

Professional SDI to composite video and audio converter with SDI loop-through output.

1.0 Key Technical Features
Section Key Attributes
Signal Conversion SDI to composite video (CVBS) + stereo audio
Signal Distribution SDI loop-through output for daisy-chaining
Transmission Up to 300m (SD-SDI), 200m (HD-SDI), 100m (3G-SDI)
Compatibility Supports all SDI standards; PAL/NTSC output
Operation Manual PAL/NTSC selection button
Build Metal housing, ESD protection, compact size
2.0 Technical Documentation
2.1 Overview

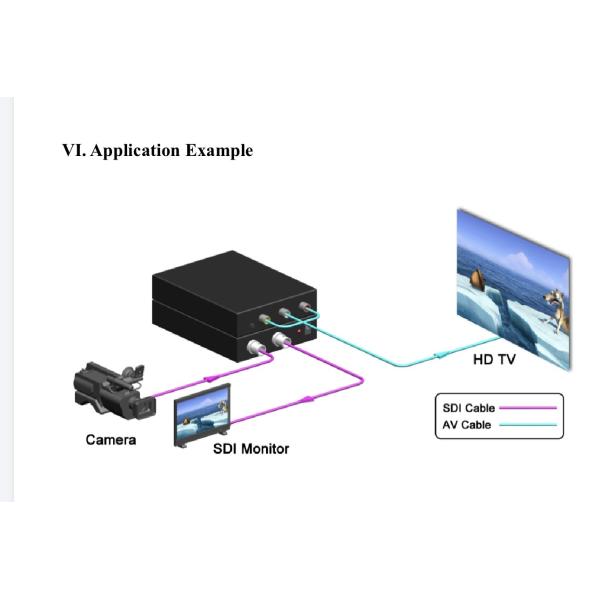

The LN-F001 converts digital SDI signals to analog composite video and stereo audio, allowing modern video sources to connect to legacy displays. An SDI loop-through output allows simultaneous connection to SDI monitors or recorders.

2.2 Signal Specifications
  • Input: 1× BNC (3G-SDI/HD-SDI/SD-SDI)
  • Outputs: 1× BNC (SDI loop), 3× RCA (CVBS, L, R)
  • Max Bitrate: 2.97Gbps
  • Resolutions: SD, HD, 3G-SDI
  • Output Format: PAL or NTSC (user-selectable)
  • Audio: 2CH analog stereo
2.3 Physical Specifications
  • Dimensions: 92mm × 67mm × 25mm
  • Weight: 180g
  • Power: DC 5V
  • Consumption: 5W max
  • Operating Temp: 0°C to 40°C
2.4 Included Accessories
  • 1× LN-F001 Converter
  • 1× 5V DC Power Adapter
  • 1× User Manual
3.0 Comprehensive Specification Table
Category Parameter Specification
General Model LN-F001
Input 1× BNC
Outputs 1× BNC, 3× RCA
Signal Max Bitrate 2.97Gbps
Resolutions SD, HD, 3G-SDI
Output Format PAL / NTSC
Audio 2CH analog
Distance 300m (SD), 200m (HD), 100m (3G)
Electrical Power DC 5V
Consumption 5W max
ESD Protection ±8kV (air), ±4kV (contact)
Physical Dimensions 92×67×25 mm
Weight 180g
Housing Metal
Environmental Operating Temp 0°C to 40°C
Storage Temp -20°C to 60°C
Humidity 20%–90% RH
4.0 Applications & Resources
4.1 Typical Applications
  • Broadcast studio monitoring on legacy displays
  • Live event video distribution to analog projectors
  • Education facilities with mixed digital/analog systems
  • Worship venues with older video systems
  • Security DVR monitoring with analog inputs
  • Retrofit installations with CRT displays
4.2 Package Contents
  • LN-F001 SDI to AV+SDI Converter
  • 5V DC Power Adapter
  • User Manual
4.3 Technical Resources
  • Datasheet (PDF)
  • User Manual (PDF)
  • Installation Guide
  • Application Notes

For technical support, customization, or bulk orders, contact our professional AV team.
