Automatic C Section Roll Forming Machine Hydraulic Cutting Steel
Automatic C Section Roll Forming Machine Hydraulic Cutting Steel
Specifications
Brand Name :
LIMING
Model Number :
LM-purlin12-3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
45set/Year
Delivery Time :
30 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production product specifications:Production product specifications :
C width (80-300mm),
Weight :
8.5t
Motor power :
22kw
Thickness :
1.5-3.0mm
Warranty :
1 years
Usage :
Beam and Support In Steel Construction
Material :
45#
Dimension(L*W*H) :
5000*1000*1000mm
Weight: :
14000kg
Description

Automatic purlin forming machine Hydraulic cutting C-shaped steel roll forming machine

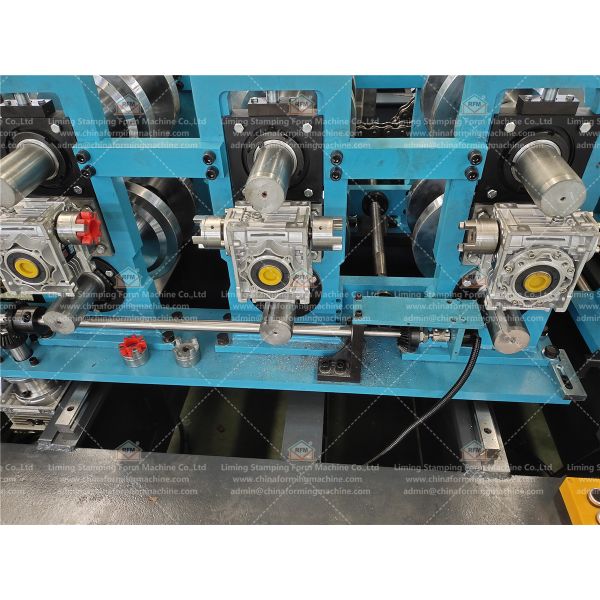

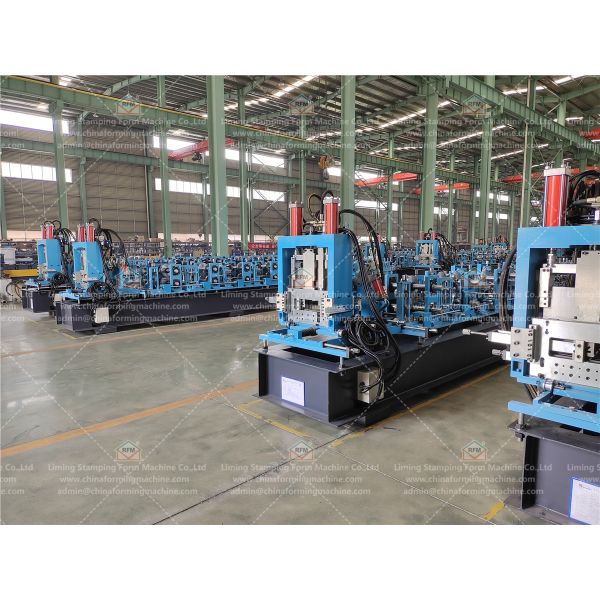

The C-shaped steel roll forming machine is a single-coil forming unit with a set of rolls that can produce various specifications of C-shaped purlin finished products. Automatic C-beam equipment is mainly composed of passive loading rack, leveling device, front shearing device, forming host, automatic punching device, forming shearing device, hydraulic station, computer control system, etc.

Technical parameters of Automatic purlin forming machine Hydraulic cutting C-shaped steel roll forming machine

Equipment size
11500*1350*1750mm
Weight
8.5t
Motor power
22kw
leveling rollers
4 up and 5 down leveling rollers
The diameter of the leveling shaft
100MM
Levelling roller material:
45# steel
Main motor type
Hydraulic motor
Hydraulic motor brand
TILORMS
Motor power :
22KW
Thickness of raw material:
1.5-3.0mm
Speed of forming
6-18m/min (according to punching)
Processing precision
within 2.0mm
Material of roller
GCr15
Main Roller stations:
15 groups
Material of main shaft:
40Cr
Diameter of main shaft:
Ø85mm
The thickness of the side plate:
30mm
Chain size:
2 inchv

C-shaped steel roll forming machine, C-shaped steel can be exchanged, quick change of any model of 80-300mm within one minute, to achieve the product change specification you need, the forming cutter can cut any model of 80-300, No need to change tools. The feeding port is automatically centered and adjusted, cut to a fixed length, and the molding speed is fast, 8-15m/min per minute, which saves labor costs and improves production efficiency.

Automatic C Section Roll Forming Machine Hydraulic Cutting SteelAutomatic C Section Roll Forming Machine Hydraulic Cutting SteelAutomatic C Section Roll Forming Machine Hydraulic Cutting Steel
