30m/Min Liming 2.5mm Solar Pv Bracket Roll Forming Machine
30m/Min Liming 2.5mm Solar Pv Bracket Roll Forming Machine
Specifications
Brand Name :
LiMing
Model Number :
LM-Solar 5.3
Certification :
CE、BV、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
450set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Production Capacity :
15m/min
Weight :
4500kg
Rolling thinckness :
2.5mm
Cutting blade material :
Cr12 Frequency Quenching
Cut blade material :
Cr12MoV
Description

Easy to install Solar panel mounting bracket forming machine 30m/min

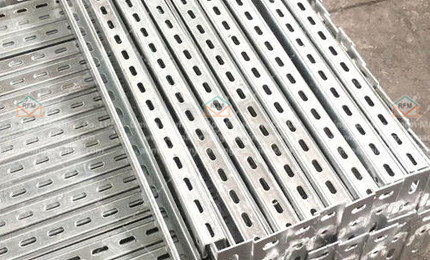

Solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in solar photovoltaic power generation systems. Generally, the solar bracket is made of carbon steel and stainless steel. The surface of the carbon steel is hot-dip galvanized, and it will not rust for 30 years in outdoor use. The characteristics of the solar photovoltaic bracket system are no welding, no drilling, 100% adjustable, 100% reusable. If you need to produce solar

item value
After Warranty Service Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service聽Location None
Showroom Location None
Condition New
Type Tile Forming Machine
Tile Type Colored Steel
Use ROOF
Production Capacity 15m/min with press step
Place of Origin China
Hebei
Brand Name LiMing
Voltage 220-450V according to customer
Dimension(L*W*H) 9000*1500*1200
Weight 4500kg
Certification CE
Warranty 13months
Key Selling Points Long Service Life
Rolling thinckness 2.5mm
Feeding width 130mm
Machinery Test Report Provided
Video outgoing-inspection Provided
Marketing Type New Product 2020

photovoltaic brackets, we can provide you with a solar panel mounting bracket forming machine Process flow of solar panel mounting bracket forming machine: Uncoiling-punching-roll forming-shearing-splicing The solar panel mounting bracket forming machine adopts the Panasonic PLC control system to automatically work and control. It only needs to manually enter the length and quantity of the required solar photovoltaic bracket to automatically complete the production, which can help you save a lot of labor costs. The solar panel mounting bracket forming machine needs to be customized. You only need to provide dimensions and drawings. Our professional design team can design your own solar panel mounting bracket forming machine and machine configuration. If you are not satisfied with our configuration , We can provide you with optional schemes for you to choose.
