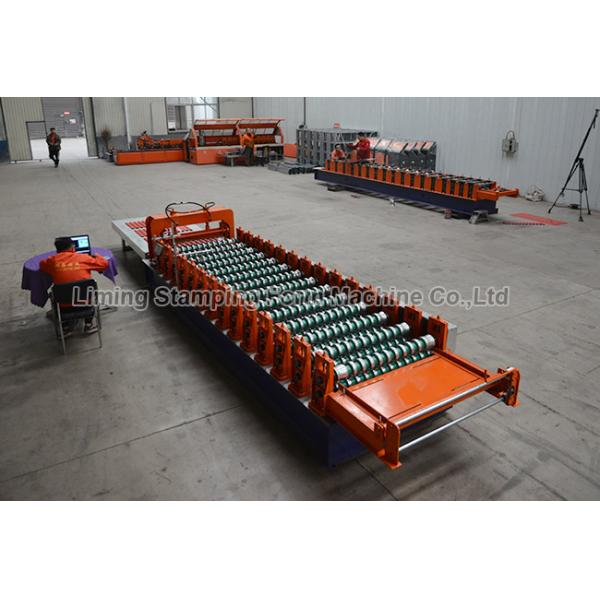

18m/min Corrugated Roll Former , 4.5tons Roof Tiles Making Machine
18m/min Corrugated Roll Former , 4.5tons Roof Tiles Making Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-CT1
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
The total length of the equipment :
Length 4.77m width 1.3m height 1.2m
Brand Name: :
Liming
Forming speed :
10~18m/min
Weight :
4.5tons
Wheel material :
45# steel hard chrome plating
Set of :
Galvanized pipe finishing, electrostatic spraying
Name :
Metal Step Tiles Roofing Sheets Roll Forming Machine
Color :
As Customers Requirement
Dimension(l*w*h) :
About 7.5m*1.5m*1.45m
Warranty :
24 months
Description

Automatic Corrugated Tile Roofing Sheets Roll Forming Making Machine

The Automatic corrugated tile roofing sheets roll forming making machine is mainly composed of a discharge machine, a feed introduction platform, a forming host, a punching device, a forming and shearing device, a hydraulic station, a computer control cabinet, etc. The whole machine adopts industrial computer PLC control, electric operation, Automatic material cutting, automatic counting, simple operation,The Automatic corrugated tile roofing sheets roll forming making machine used for processing light steel structure roof panels, the formed panels produced are flat, solemn and elegant, beautiful and novel, uniform corrugated, high utilization rate, and high strength, and are highly praised by many users .The Automatic corrugated tile roofing sheets roll forming making machine can meet the different needs of customers and has the characteristics of simple operation, easy maintenance, and automatic operation. The Automatic corrugated tile roofing sheets roll forming making machine is suitable for the internal and external walls of industrial and civil buildings. Laying is non-directional, easy to install, quick to construct, and can be used as a horizontal mounting board.

Technical parameters of Automatic Corrugated Tile Roofing Sheets Roll Forming Making Machine

The total length of the equipment Length 4.77m width 1.3m height 1.2m
The motor power Motor 5.5Kw pump station 4Kw working voltage 380V or customized
Production speed 10- 18 m/min
The transmission way 1 inch chain drive
rack Large frame: 350H section steel
shaft 9 row of axis, diameter 70 axis
The thickness of the plate 14 mm
Set of Galvanized pipe finishing, electrostatic spraying
Wheel material 45# steel hard chrome plating
The molding part Divided into precision wheel rotation forming, forming effect is good, reduce the friction between wheels and raw materials, debugging convenient, fast.
Numerical control system Easy control, letter press the button screen, counter
shear Welded iron frame, hydraulic cylinder automatic shear
The thickness of the plate 0.3- 0.8 mm
Into the plate width 1000 mm
accessories Instruction book feeding rack a set
Warranty period 24months
