3kw Light Keel Roll Forming Machine C Z U L W Shape
3kw Light Keel Roll Forming Machine C Z U L W Shape
Specifications
Brand Name :
LIMING
Model Number :
LM-light 18
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type :
Roll Forming Machine
Applicable Industries: :
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising C
Production Capacity: :
15-20m/min
Dimension(L*W*H): :
7.5*1.5*1.5m
After-sales Service Provided: :
Online support, Field installation, commissioning and training, Video technical support, Engineers available to service machinery overseas
Core Components: :
Motor, Bearing, Pump, PLC
Structure: :
Column type
Shaft Diameter: :
75mm
Cutting System: :
Hydraulic cutting
Driving System: :
Gear box or chain
Description

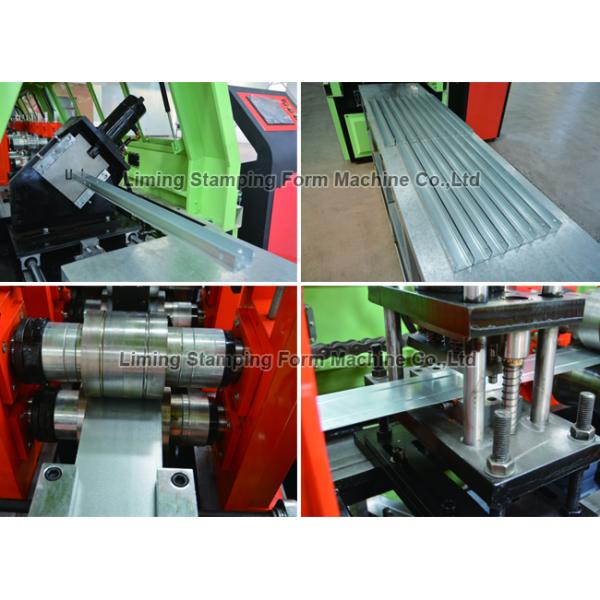

Steel C Channel Roll Forming Machine C Z U L W Shape Profile Section Light Steel Keel Machine

"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " is equipped with high-quality 45 steel forming wheels and accurate measuring counters.

"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine ", the hydraulic station and transmission system are placed in the automatic high-speed U-shaped keel forming machine, which can effectively protect and save space.

"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " has high structural stability, fast production speed and accurate product size. This is a necessary equipment for quality contour processing.

"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine ", the fierce discharge unloading is made of cast steel integral forging, the vertical plate thickness of the frame is 40mm, and the overall CNC CNC processing makes the size accuracy of the whole machine consistent.

"Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " can produce various specifications of high-precision U-shaped keel.

When you place an order and need to transport it, we will provide you with detailed machine accessories instructions and operating instructions for "Steel c channel roll forming machine C Z U L W shape profile section light steel keel machine " to facilitate your inspection and operation.

Technical Parameters of Steel C Channel Roll Forming Machine C Z U L W Shape Profile Section Light Steel Keel Machine

1 Name of commodity & specification light gauge steel machine
2 Main motor power 3kw, 3 phase
3 Hydraulic motor power 3kw
4 Hydraulic Pressure 10-12MPa
5 Voltage 380V /3phase/ 50 HZ (or as your requirement)
6 Control System PLC Delta Inverter
7 Main Frame 300mm H-Beam
8 Backboard Thickness 14mm
9 Chain Size 20mm
10 Feeding Material color steel coils
11 Feeding Thickness 0.3-1.2mm
12 Productivity 8-12m/min
13 Roll Station 11
14 Roller Diameter 70mm
15 Roller material 45# steel
16 Cutter material Cr12 , quenched
17 Cr-Plating Size 0.05mm
18 Overall Size 3000×800×1000mm
19 Total Weight 2T
