Specifications
Model Number :
QYPV-32S
Supply Ability :
5000 pcs/week
Certification :
CE
Brand Name :
LLH
MOQ :
1 pcs
Packaging Details :
Box
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Delivery Time :
5-8 work days
Place of Origin :
China
Description

QY Series

AC Fuse 690VAC/DC Fuse 1000VDC

QY series fuse holder is made of refractory material,and meets the standard of IEC 60947-3.The maximum rated voltage is 1000V and the maximum current is32A.As a short circuit and over-current protector,it is widely used in the high and low voltage distribution system,control system,and electrical equipments,like distribution box and inverter.

Product Benefits

1.DIN35 Rail lnstallation,Easy to Install

2. Adjustable terminal block, Wiring firm

3.Fire-retardant shell,high temperature resistance

4.Flexible installation,Easy to replace

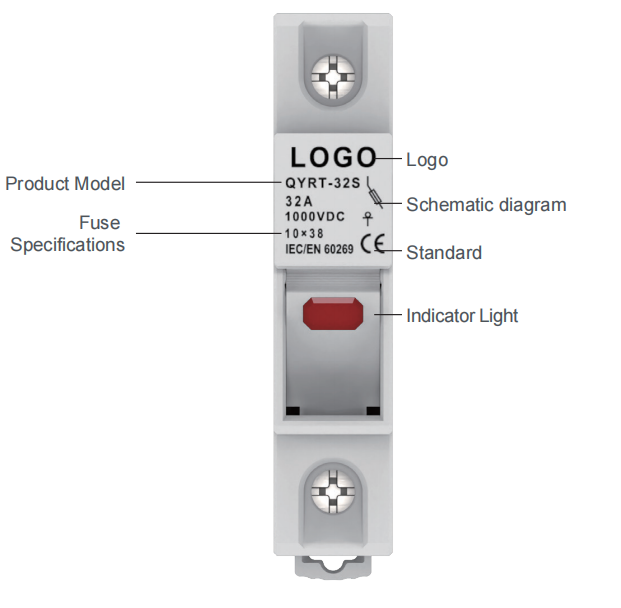

Appearance Introduction
1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

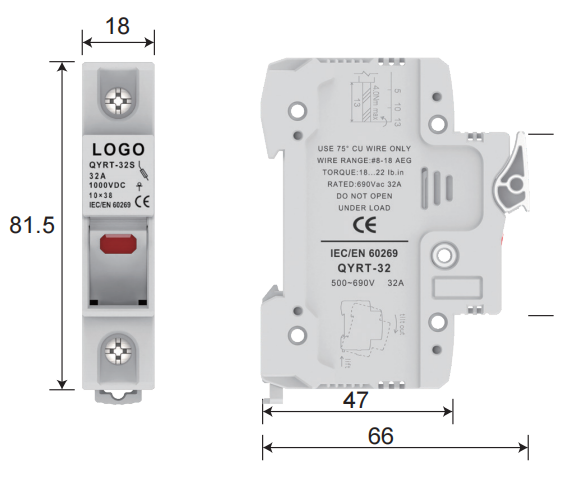

Dimensions (mm)

1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

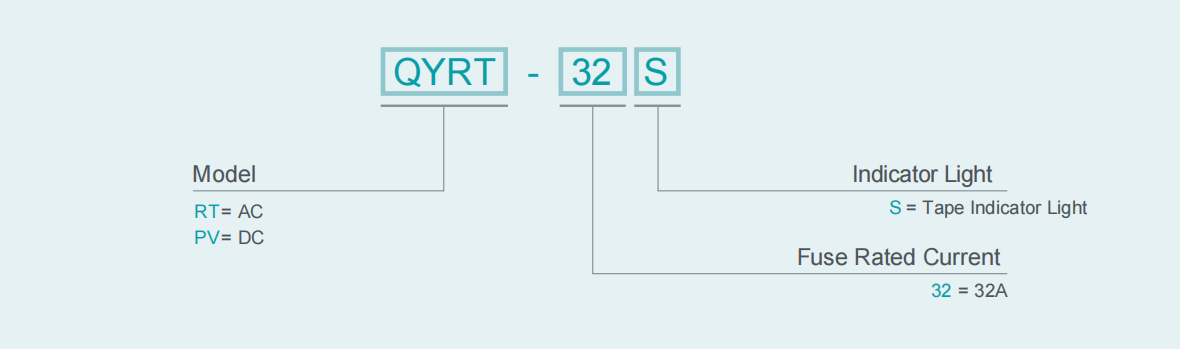

Meaning and Classification Models

1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System


Technical Data

QYPV-32S

According to

IEC60947-3

Electrical Characteristics

Rated Working Voltage

690VAC/1000VDC

Rated Current

32A

Breaking Capacity

20kA

Max Power Dissipation

 DC 5W /AC 3W

Control and Indication

Connection and lnstallation Wire

 2.5 -6mm 2

Terminal Screws

M3.5

Torque

0.8~1.2N·m

Degree of Protection

IP20

Installation Environment

Fuse Size

10×38mm

Operating Temperature Range

-30~+70°C

Mounting

DIN rail IEC/EN 60715

Pollution Degree

3

Relative Humidity

+20°C ≤ 95%,

+40°C ≤ 50%,

Installation Class

III

Weight

0.07 kg Per pole

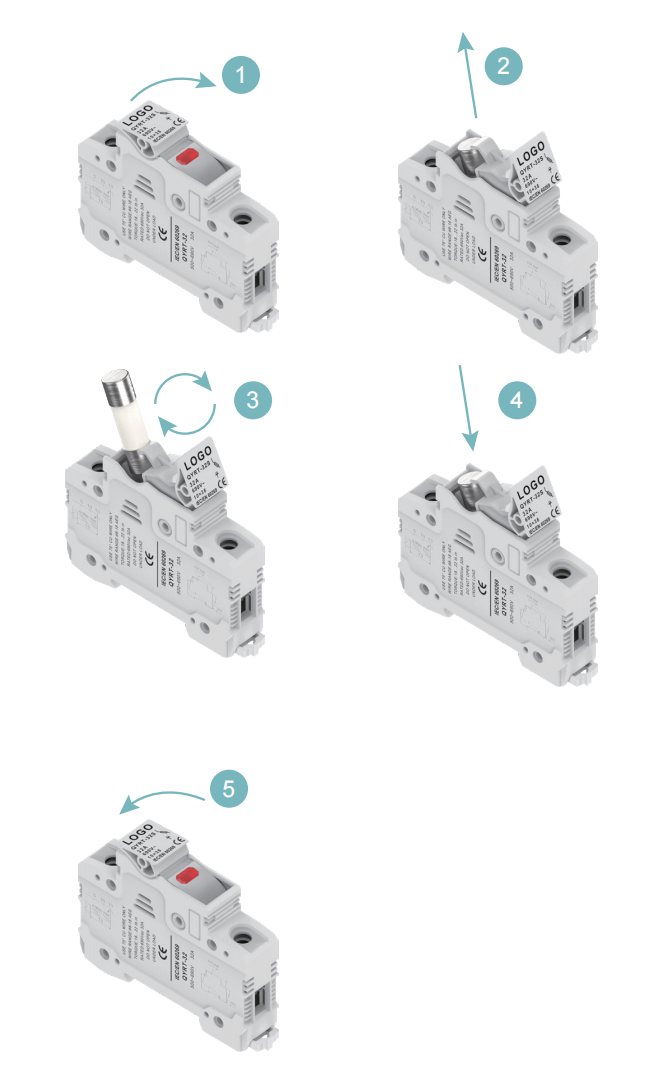

Replacement Fuse
1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System

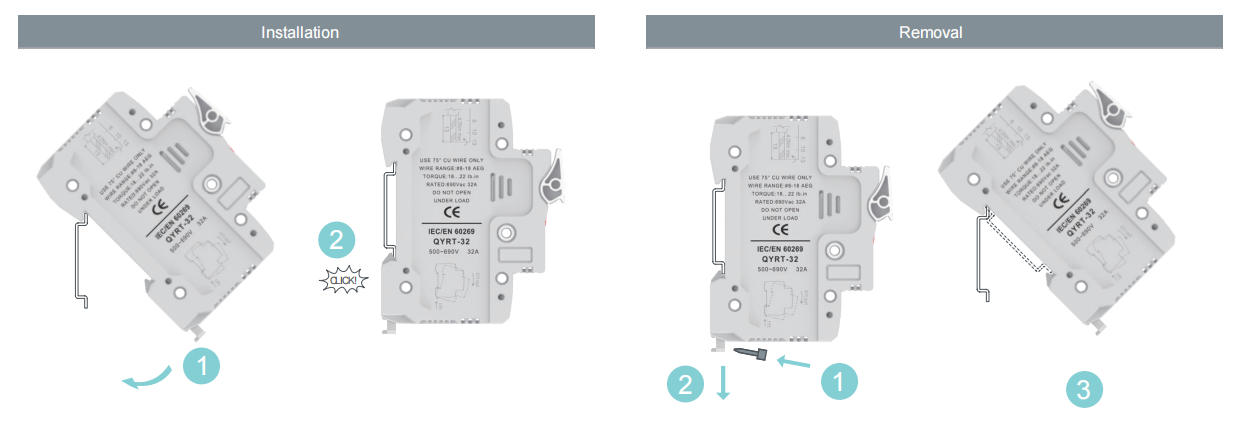

Installation
1000V DC PV Fuse Holder with Indicator Light 32A Overload Protection for Solar Power System
