ISO14001 Protective Industrial Coil Springs Heavy Duty Carbon Steel
ISO14001 Protective Industrial Coil Springs Heavy Duty Carbon Steel
Specifications
Brand Name :
Liyu
Payment Terms :
L/C,T/T
Model Number :
Sheath spring
Packaging Details :
Standard export packaging
Spring Type :
Sheathed Compression Spring / Encapsulated Spring
Structure Type :
Spring with Protective Sleeve / Covered Spring
Tolerance :
±0.01mm
Place of Origin :
China
Custom Service :
Available
MOQ :
1 set
Manufacturing Process :
CNC Spring Coiling / Assembly
Product Type :
Sheath Spring
Price :
Negotiation
Spring Material :
Stainless Steel / Carbon Steel / Alloy Steel
Certification :
ISO14001；ISO13485；IATF16949
Description

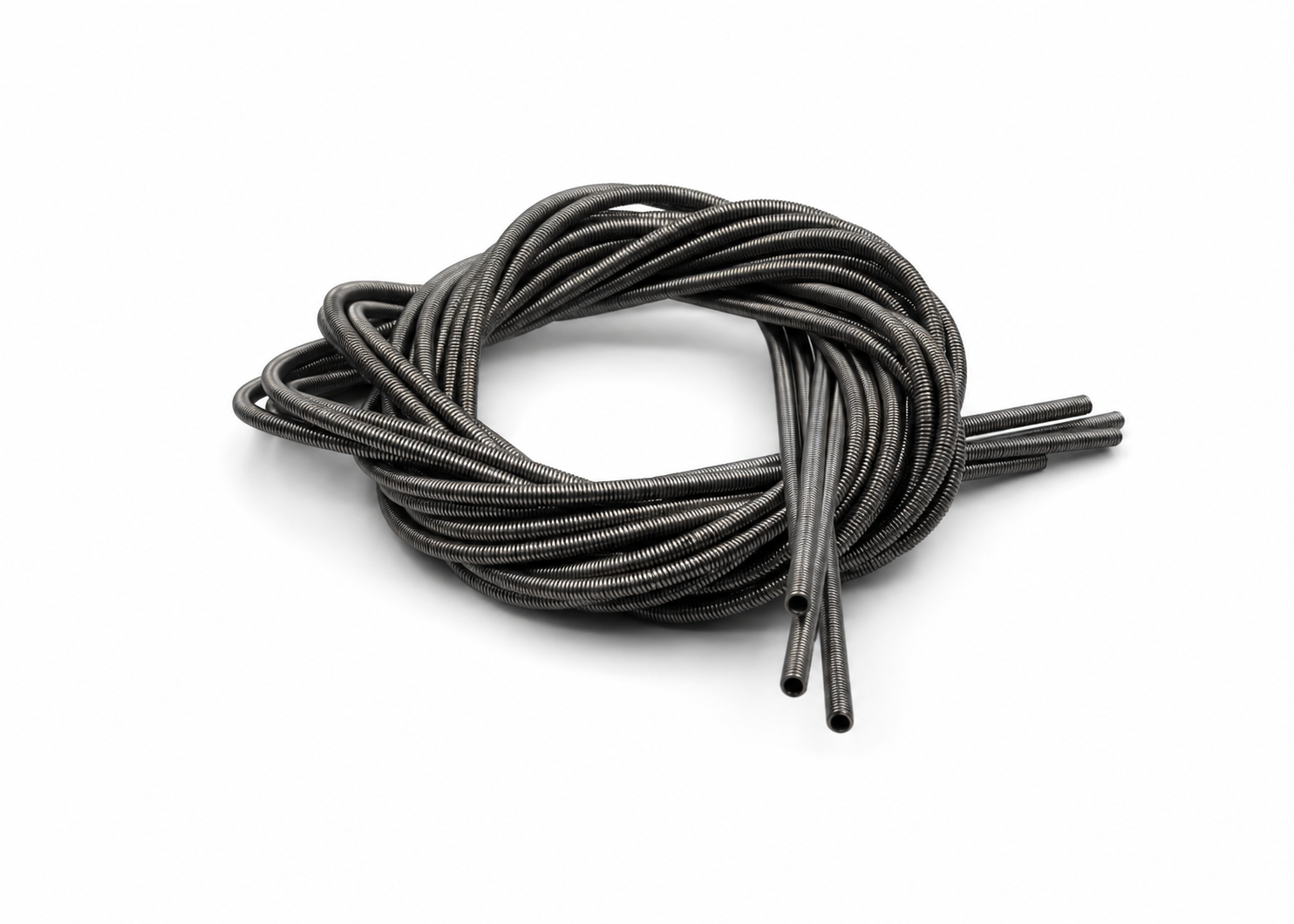

Protective Spring·CUSTOMIZATION

Protective Springs are designed to protect cables, wires, hoses, and connection points from excessive bending, abrasion, crushing, and mechanical damage. They help extend service life and improve reliability in demanding applications.
Manufactured from high-quality spring steel or stainless steel, our protective springs provide excellent flexibility, durability, and resistance to wear.

To customize the sheath spring, you need to provide the following necessary parameter information:
Wire diameter d: mm (Note: the diameter of the spring wire)

ISO14001 Protective Industrial Coil Springs Heavy Duty Carbon Steel
Outer diameter D2: mm (Note: the diameter of the outer circle of the spring)
Pitch t: mm (Spacing between two adjacent circles)
Number of circles Na: circle (Note: the total number of turns of the spring)
To customize the sheath spring, you also need to provide the following technical requirements:
turn around: (Description: Left-handedRight-handed)
Material requirements: (Such as: stainless steel wire SUS, carbon steel wire SWC, piano wire SWP, copper wire... etc.)
Surface treatment: (Explanation: blackening/galvanizing/nickel plating/chrome plating/baking paint/powder spraying/electrophoresis/shot peening/dacromet/electrolytic polishing...etc.)
Strength requirements: (Note: Elastic performance, other technical requirements, etc.)
End form: (Explanation: TightenGrindTightly polish)

Spring end characteristics

ISO14001 Protective Industrial Coil Springs Heavy Duty Carbon Steel

Characteristic Parameter

Surface treatment

 Blackening
Shot Peening
Apply anti-rust oil
Zinc plating
Polishing
Electrolytic polishing
Nickel plating
Dacromet
Teflon spray

Materials

 Carbon spring steel wire SWC
Piano wire SWPB
Stainless steel wire SUS301, SUS302, SUS304, SUS316, SUS631
65Mn
82B
55CrSi (SWOSC-V)
Nickel-plated wire, galvanized wire
Copper wire, phosphor copper wire, beryllium copper wire
Square wire, flat wire, semicircular wire
Alloy material wire
Other special specifications steel wire

ISO14001 Protective Industrial Coil Springs Heavy Duty Carbon SteelISO14001 Protective Industrial Coil Springs Heavy Duty Carbon Steel
