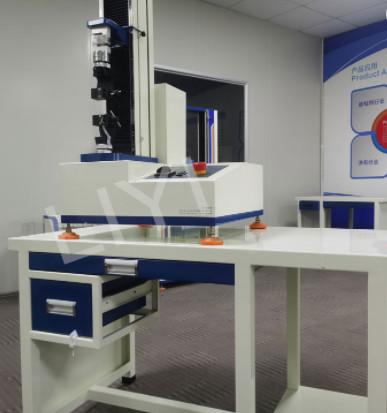

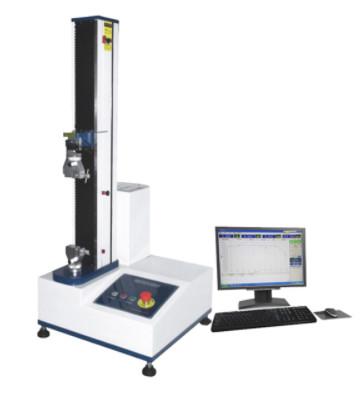

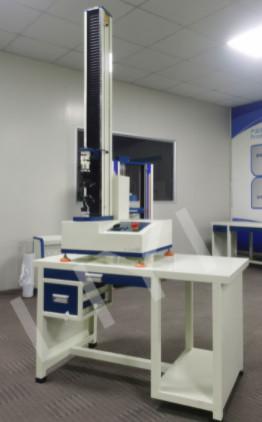

Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Electronic Universal Tensile Testing Machine With Extensometer
Specifications
Brand Name :
Liyi
Model Number :
LY-1065/LY-1068
Certification :
ISO, CE
Place of Origin :
Guangdong, China
MOQ :
1 Set/Sets
Price :
$2,850.00 - $5,680.00/ Set
Payment Terms :
T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
1 sets needs 15 days,>1 sets to be negotiated
Packaging Details :
Standard export wooden case
Power :
Electronic, 1PH,AC220V,50/60HZ
Weight :
About 70 kg
Accuracy level :
0.5%
Effective testing space :
1200mmMAX
Capacity :
1,2,5,10,20,50,100,200,500,1000,2000,5000KG optional
Dimention :
50*50*107cm
Operation method :
Windows operation
Optional accessories :
Stretcher,air clamp
Description

LIYI Universal Tensile Testing Machine With Extensometer

Product information

This machine also known as a materials testing machine , it is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, ect.

Specifications

Model LY-1065 LY-1068
Range of speed 0.1~500mm/min 50~500 mm/min
Motor Panasonic sevor motor AC motor
Resolution 1/250,000 1/150,000
Capacity choice 1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke 850 mm (can be customized)
Accuracy ± 0.5 %
Force relative error ± 0.5 %
Displacement relative error ± 0.5 %
Test speed relative error ± 0.5 %
Effective testing space 120 mm
Accessories Computer, printer, system operation manual

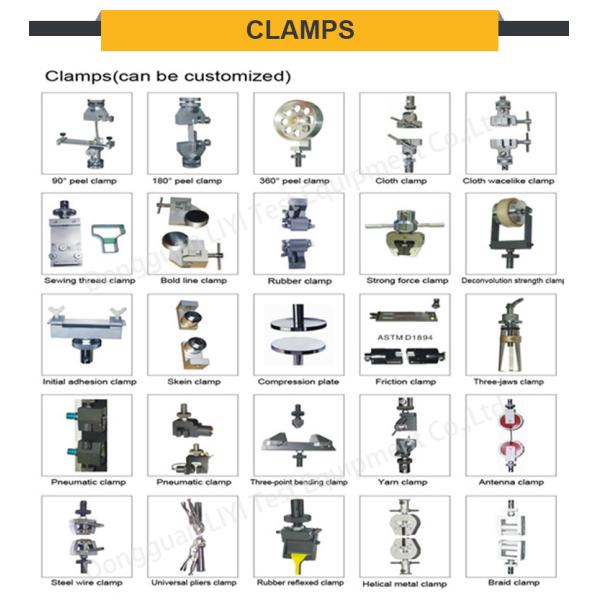

Optional accessories Stretcher, air clamp
Operation method Windows operation
Weight 70 kg
Dimension (W * D * H) 58 * 58 * 145 cm
Power 1 PH, AC 220 V, 50/60 Hz

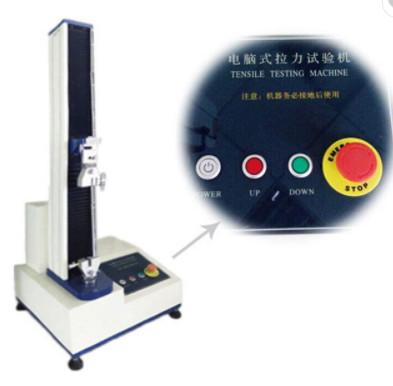

Safety Device:

Stroke protection Machinery, computer double protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies
Product Effects

Electronic Universal Tensile Testing Machine With ExtensometerElectronic Universal Tensile Testing Machine With ExtensometerElectronic Universal Tensile Testing Machine With Extensometer
