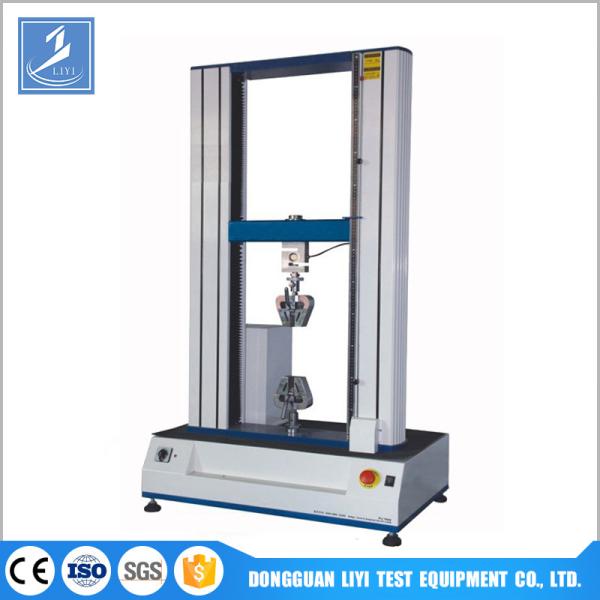

LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
Specifications
Brand Name :
LIYI
Model Number :
LY-1066B
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000
Delivery Time :
5-20 days
Packaging Details :
Standard export wooden case
Weight :
About 145 kg
Power :
Electronic, 220V/50HZ
Capacity :
5,10,20,50,100,200,500,1000,2000,5000KG optional
SenorDimention :
50*50*120cmcy sensor
Resolution :
1/50000
Display :
Force and elongation display
Certificate :
CE ISO
est space :
120mmMAX
Description

LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine

Brief Introduction:

Electronic Tensile Testing Machine is suitable for all kinds of textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials and products industry to do tensile, compression, bending, shear, peel (90 degrees and 180 degrees), tearing, two extensions (need to reprovision extensometer ) and other tests to determine product quality.

Application Industries:

Universal tensile strength test equipment widely used in wire and cable, hardware, electronics, packaging, printing, medical equipment, auto parts, textiles and leather, clothing footwear, rubber products, institutions of higher learning; research laboratories; inspection of arbitration, and technical supervision departments and other industries, is quality management, basic equipment character test.

Characteristics:


1. Good design. My company has been great emphasis on product appearance and development of many models with comparable foreign products are aluminum alloy surface, and electrostatic spray chart.
2. Force value digital LCD display, a discernible tension or pressure, LCD interface, easy to read.
3. Three types of units: N-Kgf-Lbf optional and can automatically swap.
4. LCD liquid crystal display with backlight, can be used in low-light environment.
5. Single determination, you can read the tension and compression peaks in both directions, and automatic and manual reset;
6. With travel limit and the overload stop function.
7. Desktop single-column structure is beautiful and delicate, seating operation, easy and natural.

Specifications:

Model LY-1066B LY-1066B
Range of speed 0.1~500mm/min 50~500 mm/min
Motor Panasonic sevor motor AC motor
Resolution 1/250,000 1/150,000
Capacity choice 1, 2, 5,10, 20, 50,100, 200, 500 kg optional
Stroke 1250 mm (can be customized)
Accuracy ± 0.5 %
Force relative error ± 0.5 %
Displacement relative error ± 0.5 %
Test speed relative error ± 0.5 %
Effective testing space 850 mm
Accessories Computer, printer, system operation manual
Optional accessories Stretcher, air clamp
Operation method Windows operation
Weight 125 kg
Dimension (W * D * H) 58 * 58 * 155 cm
Power 1 PH, AC 220 V, 50/60 Hz

Safety Device:

Stroke protection Machinery, computer double protection, prevent over preset
Force protection system setting
Emergency stop device Handling emergencies


LIYI 2000KG Automatic Mechanical Universal Tensile Testing MachineLIYI 2000KG Automatic Mechanical Universal Tensile Testing MachineLIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine

LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine

LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine

LIYI 2000KG Automatic Mechanical Universal Tensile Testing Machine
