Specifications
Brand Name :
KXD
Model Number :
KXD-03
Certification :
CE、ISO、SGS
Place of Origin :
Qingdao，China
MOQ :
1 set
Price :
USD 20,000.00-100,000.00
Payment Terms :
L/C,T/T
Supply Ability :
10000 Houses/Year
Delivery Time :
25 days
Packaging Details :
steel pallet
Surface treatment :
Hot Dip Galvanised,Blast Cleaning,Ball blasting or Painting,Galvanized,Anti-rust painting
Design Style :
Modern/Contemporary
Additionalfeatures :
Optional Automatic Feeding and Watering Systems
Curtain :
Manual Operated One and Motorized One
Durability :
Corrosion Resistant
Application :
Broiler and Layer Chicken
Description
High Quality Full Automatic Poultry House Machinery

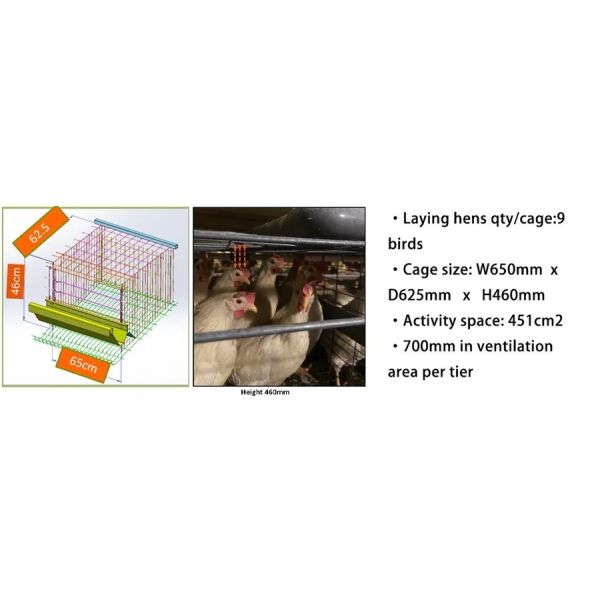

Layer Cage Design
Reasonable area per bird for optimal comfort and productivity.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

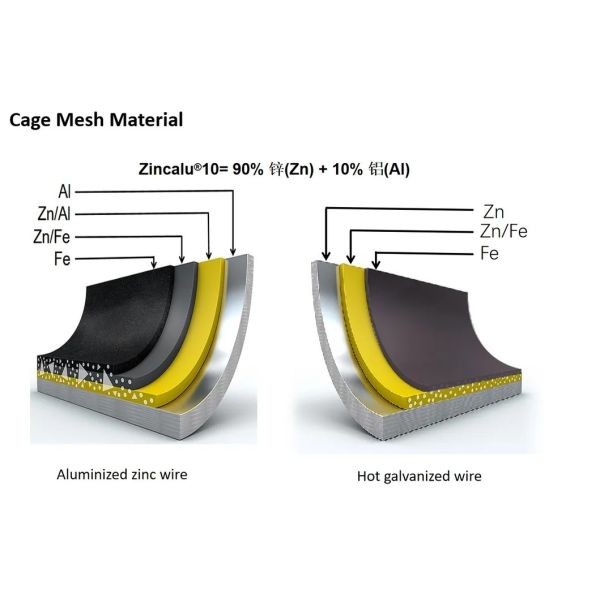

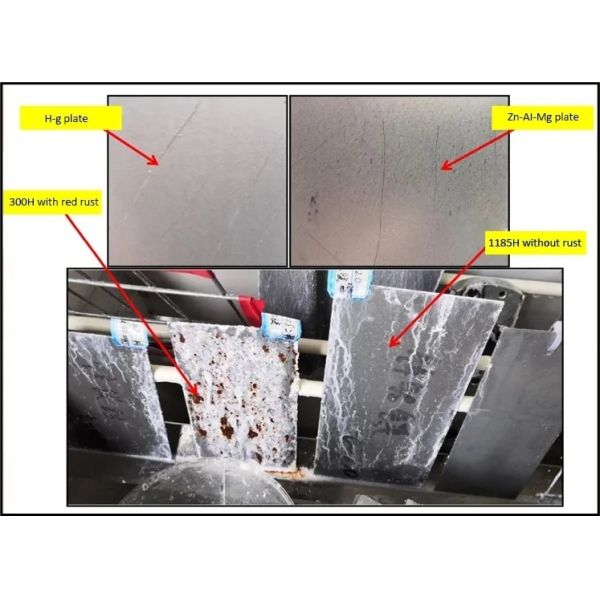

Cage Body Material Specifications
The cage body is primarily assembled using metal plate and welded wire mesh. Constructed from 275g/m² galvanized sheet and aluminized magnesium-zinc steel plate for high corrosion resistance and extended service life.
Component KXD Others Others
Cage leg 2.0mm (Zn-Al-Mg) 2.0mm 1.5mm
Feed trough 1.0mm (Zn-Al-Mg) 0.8mm 0.8mm
Chicken Deflector Board 0.8mm 0.8mm 0.5mm
Connection Plate 1.0mm 1.0mm 0.8mm
Manure Belt Support 1.0mm 1.0mm 0.8mm
Egg collector side plate 2.0mm 2.0mm 1.5mm
Top wire mesh H1.8 V2.0mm H1.8 V2.0mm 1.65mm
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

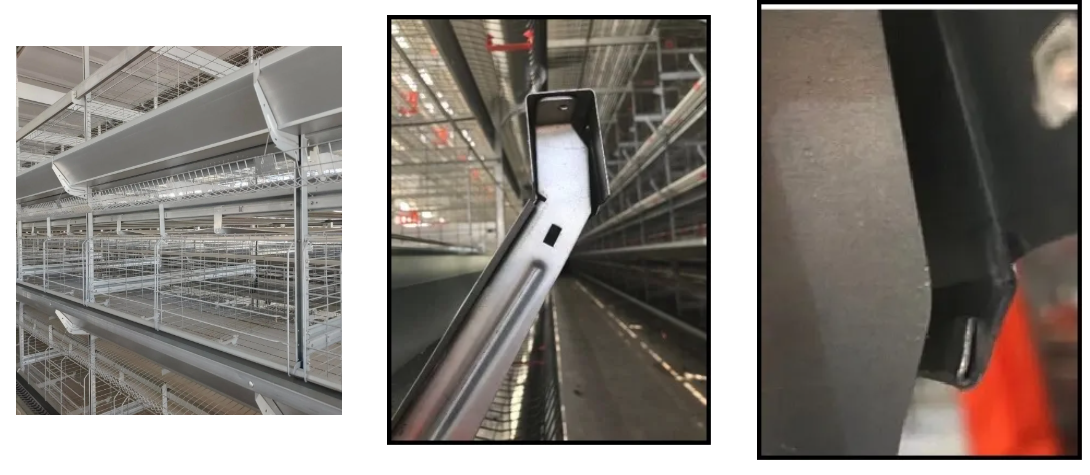

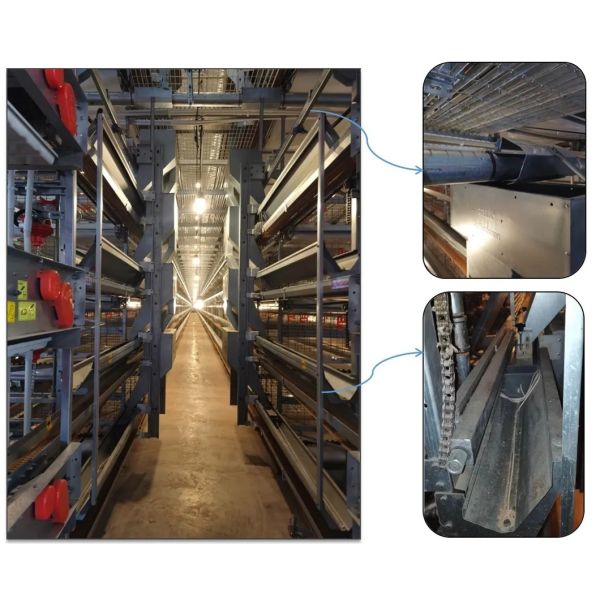

Feed Trough System
Constructed from Zn-Al-Mg plate for superior anti-corrosion and wear-resistant properties.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
V-Shallow design with reinforced structure featuring anti-spill and anti-clogging capabilities to minimize waste and prevent mold growth. Track design incorporates humanized protection, balancing trampling resistance and safety across all tiers.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

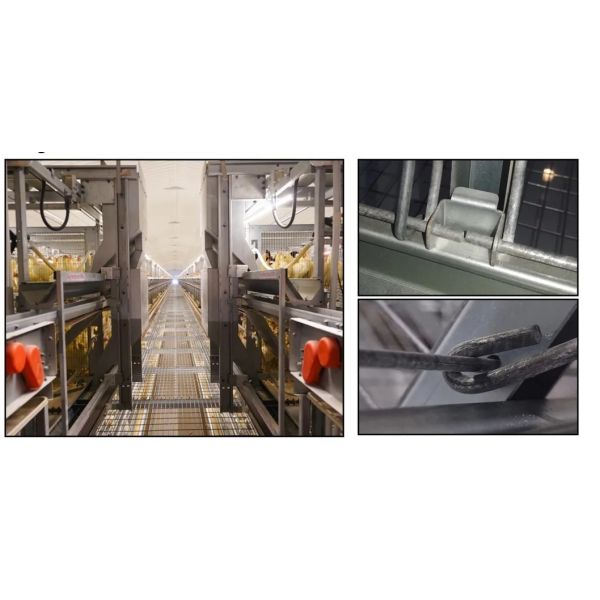

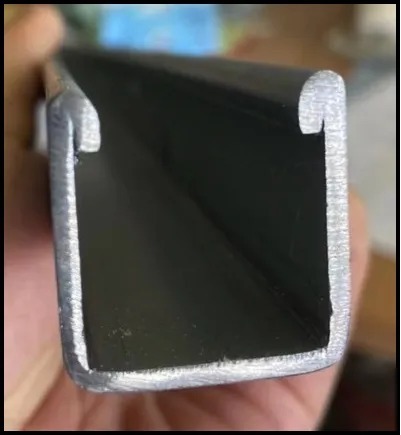

Cage Leg Design
Ruffled edge design effectively prevents rusting at cross-sections.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

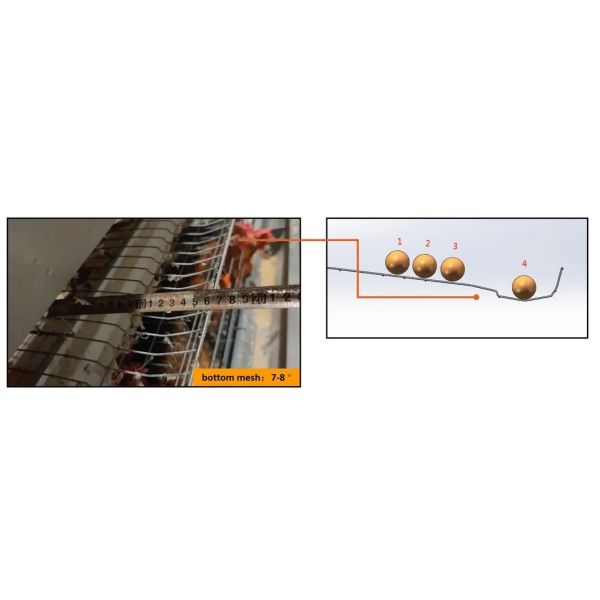

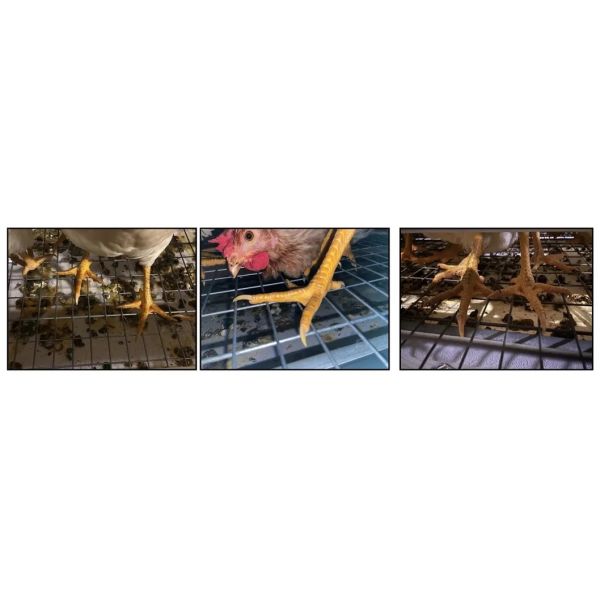

Bottom Mesh
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Features a 7-9° slope gradient with smooth, burr-free surface to ensure bird comfort and effectively reduce cracked eggs.
Cage Door System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Sliding door design allows comfortable feeding for birds while facilitating easier operation during the breeding process.

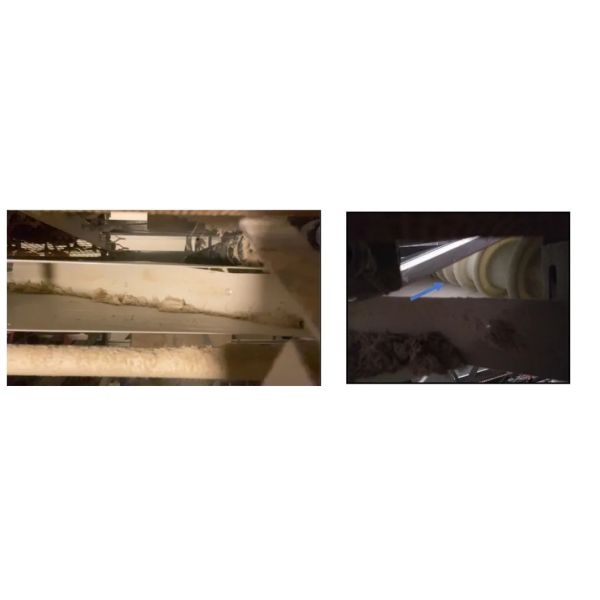

Manure Conveying System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Front-end internal scraper: Heightened design blocks chicken feathers, which are exported by the spiral roller.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Feeding System
Feed card system for precise feeding control.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

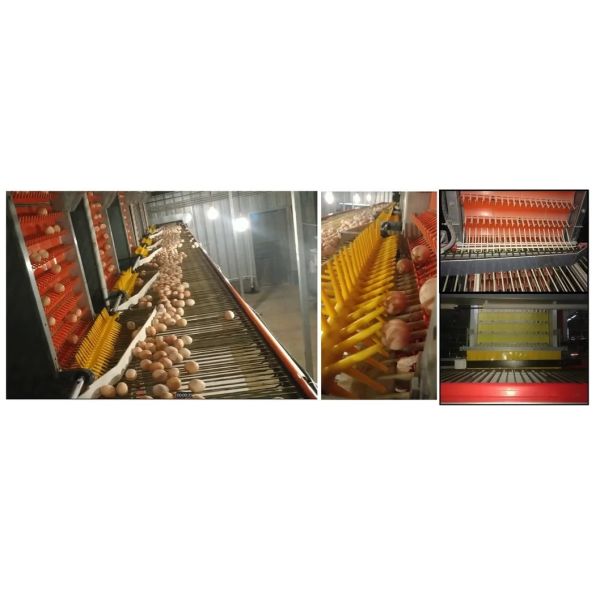

Egg Collection System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Continuous improvement in egg-breaking rate through meticulous design details. The 7° sloped bottom mesh ensures gentle egg rolling onto the collection belt, significantly reducing breakage.

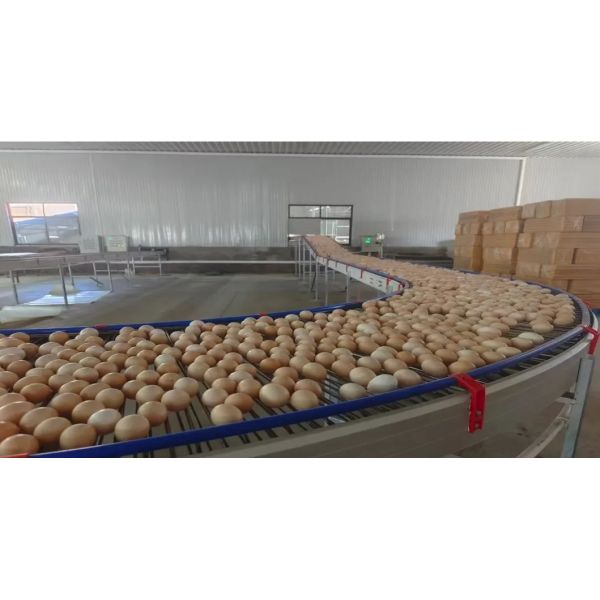

Egg Picker Technology
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Central egg conveying line with silicone dividers that reduce egg cracks by 1% through smooth elevator transfer, ensuring near-perfect collection. 90° large corner design allows smooth egg transitions with minimal breakage.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

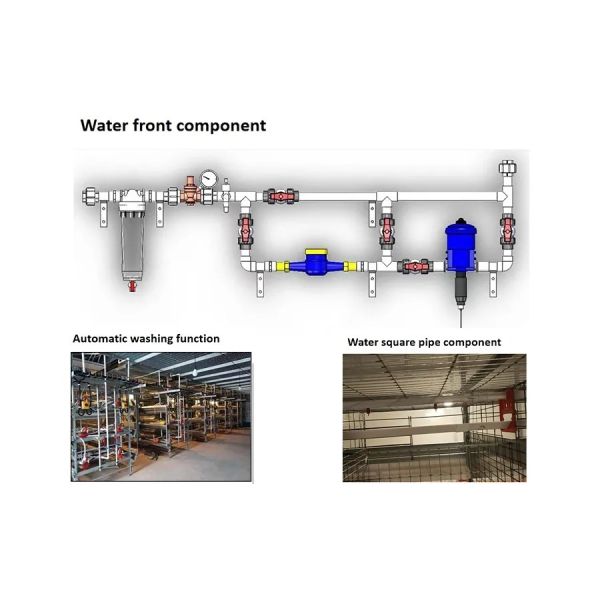

Drinking System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Stable, reliable system designed without leakage. Water line end part includes display, draining, and water shortage alarm devices for optimal monitoring.

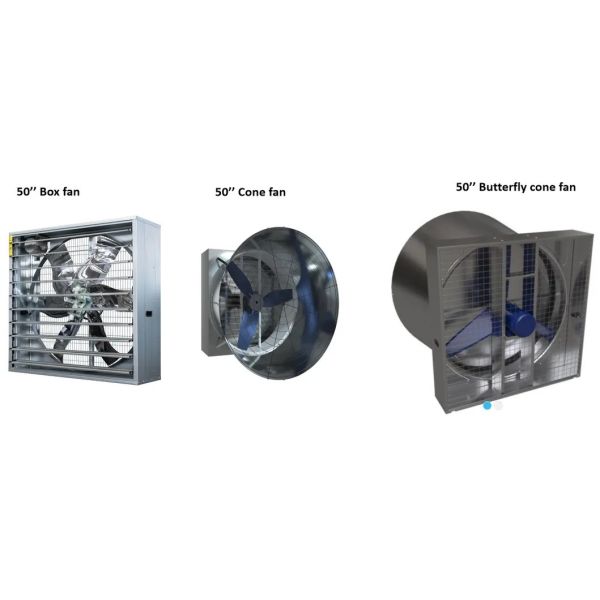

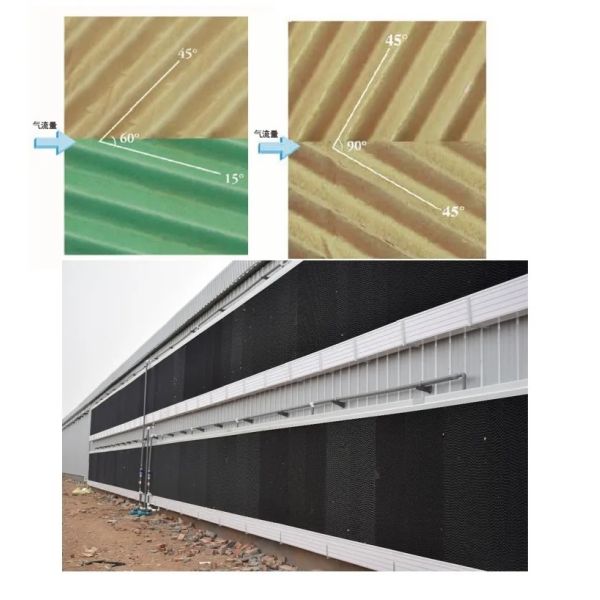

Ventilation System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Cooling pad: Utilizes 7060 paper with black coating. Compared to 7090, 7060 provides smaller negative pressure and greater wind speed across the curtain. System includes water reusing and automatic water replenishing devices, saving customer costs on water reuse system investments.
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

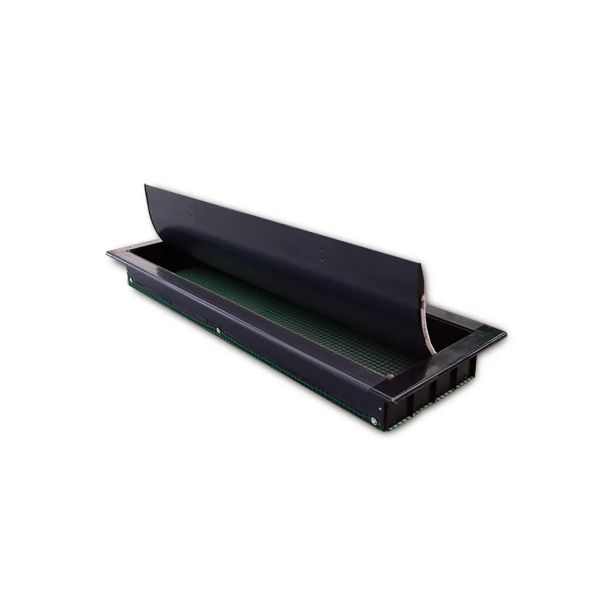

Air Inlet System
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System
Size: 1100mm x 330mm. Curve inlet flap directs airflow for uniform ventilation and prevents stress reactions from cold air. Air inlet opening is automatically controlled by environmental controller.

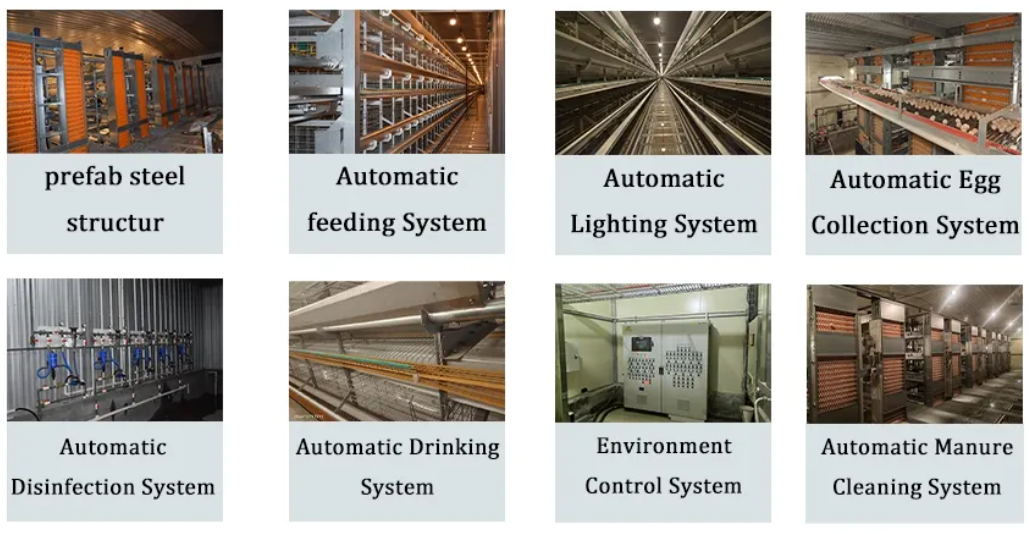

Our Products
High Quality Full Automatic Poultry House Machinery with Corrosion Resistant Hot Dip Galvanised Steel and Automatic Feeding System

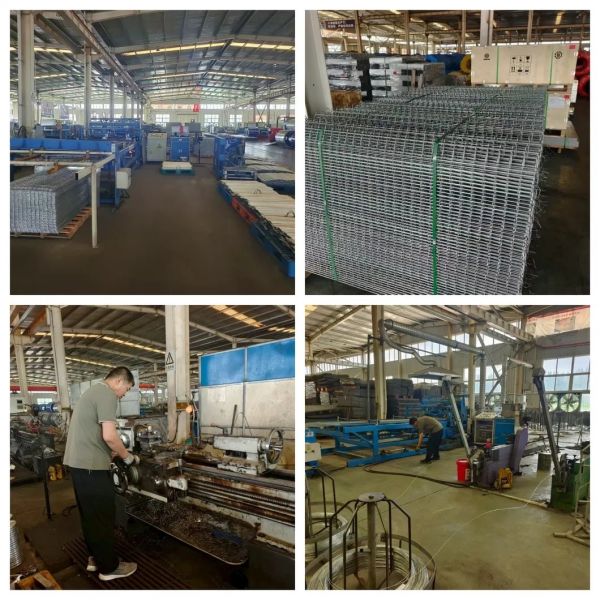

Our Workshop
