Specifications
Brand Name :
KXD
Model Number :
KXD-SS78
Certification :
CE、ISO、SGS
Place of Origin :
Qingdao，China
MOQ :
1 set
Price :
USD 20,000.00-100,000.00
Payment Terms :
L/C,T/T
Supply Ability :
10000 Houses/Year
Delivery Time :
25 days
Packaging Details :
steel pallet
Beam :
H Section Steel
Windows :
Double Glazed
Interior Finishes :
Customizable
Eave Height :
3m - 5m
Weight :
Varies by model
Structural Frame :
Steel Column, Steel Beam, Steel Truss
Description
Automatic Galvanized Chicken Poultry Battery Cage Steel Egg Layers Cage

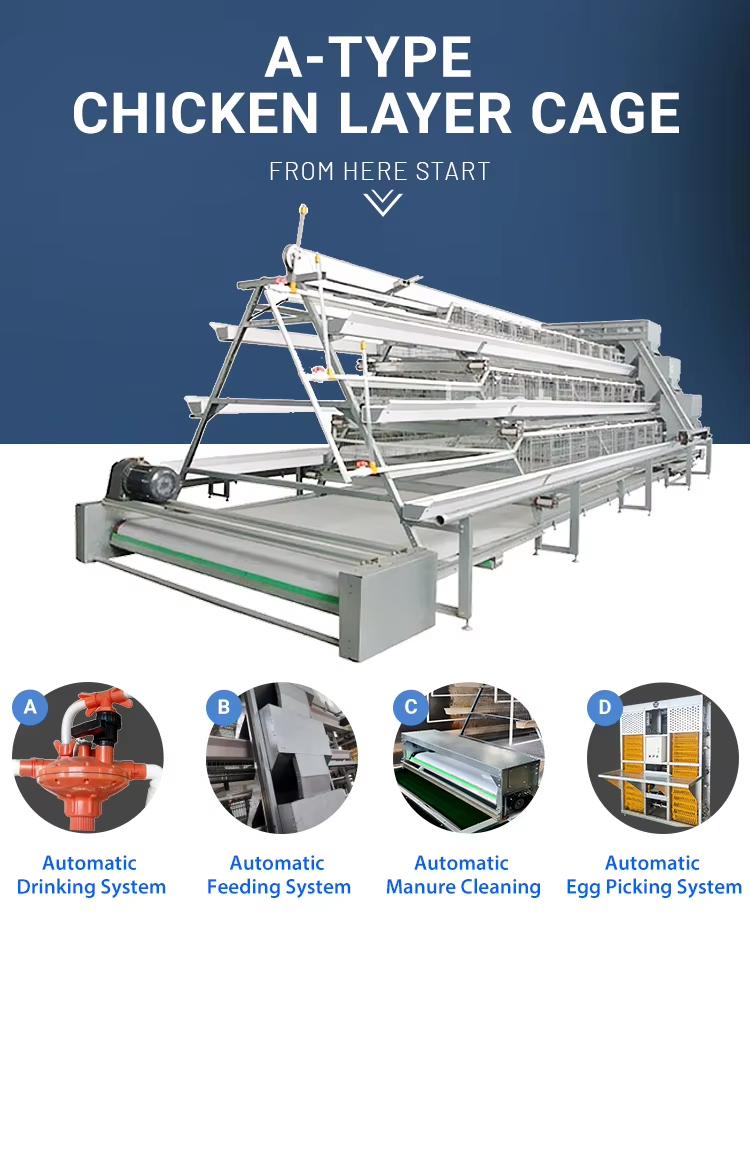

Professional A-Type chicken layer cage system designed for efficient poultry farm operations with automated features for optimal egg production.
Product Specifications
Item 3 tiers 4 doors 4 tiers 4 doors 3 tiers 4 doors 4 tiers 4 doors
Number 6 × 4 8 × 4 6 × 4 8 × 4
Capacity (Set) 96 chickens 128 chickens 120 chickens 160 chickens
Frame size (L×W×H) 1.91×1.89×1.38m 1.91×2.37×1.83m 1.91×2.09×1.46m 1.91×2.60×1.94m
Materials & Construction
  • Materials: Low carbon steel wire, Q235 steel wire
  • Surface Treatment Options:
    • Cold Galvanization
    • Hot Dip Galvanization
    • PVC Coated
  • Lifespan:
    • Cold Galvanization: 7-10 years
    • Hot Dip Galvanization: 15-20 years
    • PVC Coated: 15-20 years
Packaging Options
  • Full container loading: Cage and cage frame are no package, some fittings are in plastic bags and carton box
  • Less container loading: Packed in wooden box and pallet
Key Features

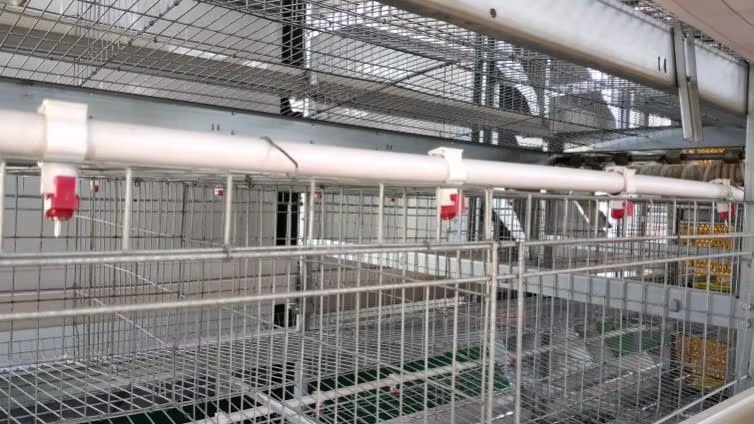

Nipple Drinker System
Each door with 2 drinkers, one drinker close to the spacer wire. In case the drinkers fails in one door, chickens can drink water by the neighboring drinker.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

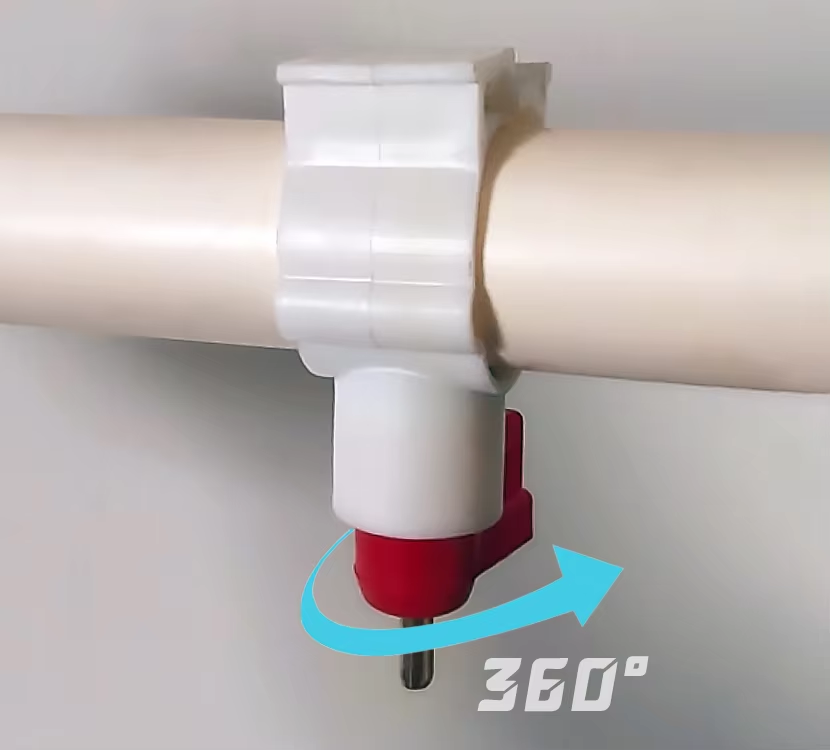

Stainless Steel Nipple Design
Stainless steel design for internal components, to avoid leakage. 360 degree rotatable, convenient for drinking.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

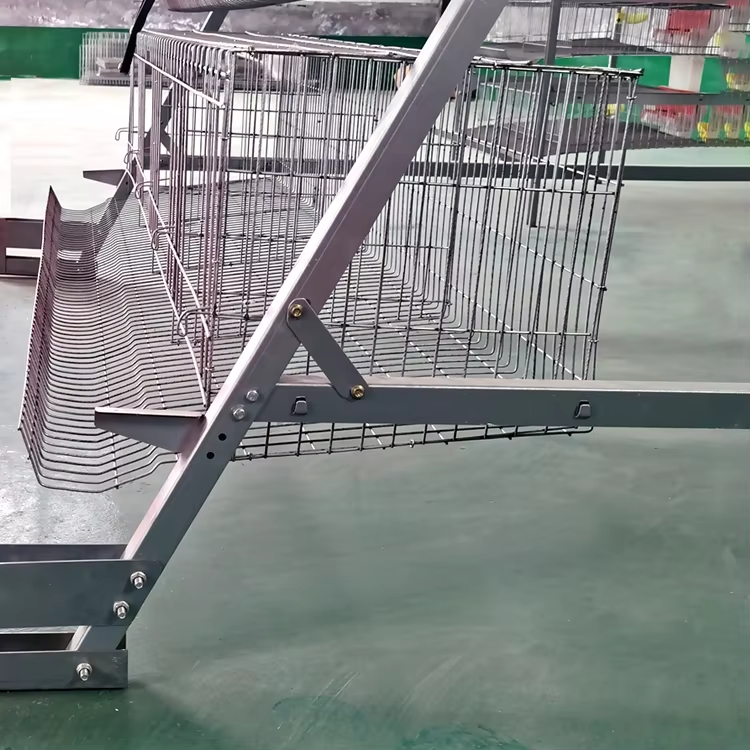

Reinforced Cage Wire
Different wire diameters: bottom mesh upper/crosswise wire: 2.5mm for good elasticity and reduced broken egg rate; bottom/lengthways wire: 3.0mm for cage strength.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

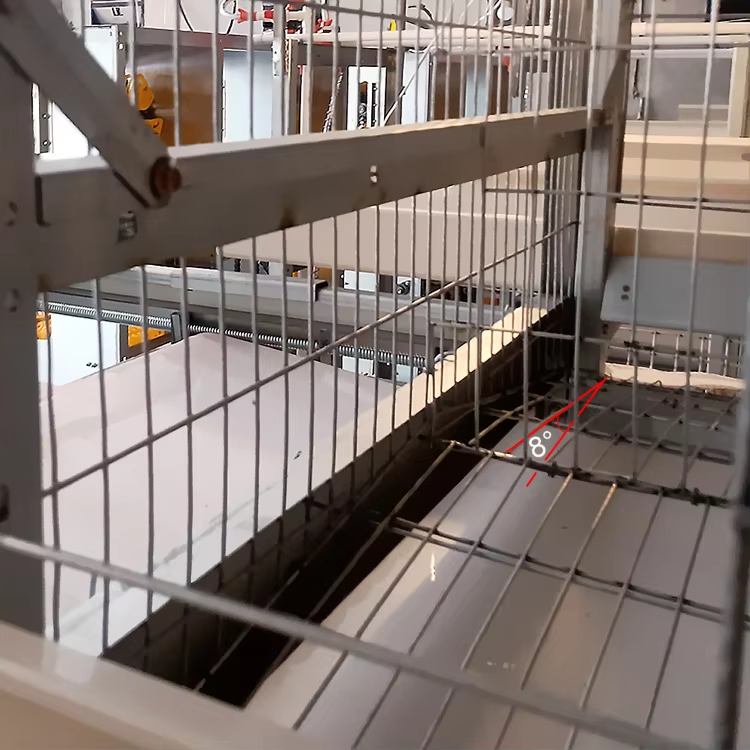

Premium Wire Construction
Q235 material, hot galvanized for strength, elasticity and anti-corrosion. Unique bottom propping wire improves support without affecting elasticity. 8 degree pitch minimizes broken egg rate.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

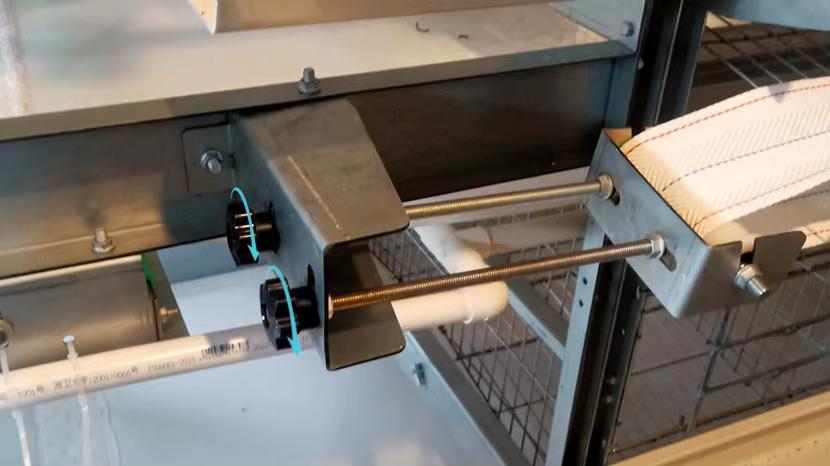

Durable Egg Collecting Belt
Uses latest nylon material, strong and durable. Unique tightening design to adjust tightness of the egg belt.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

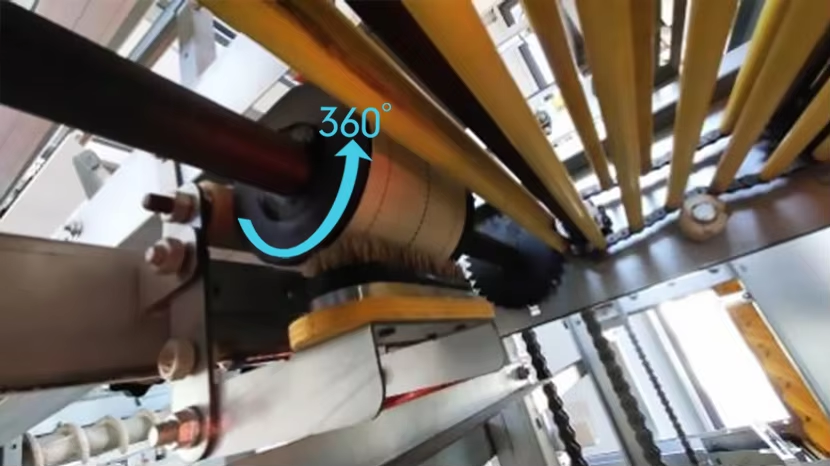

Self-Cleaning Egg Belt
Unique brush design to clean the egg belt incessantly while eggs are being collected.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

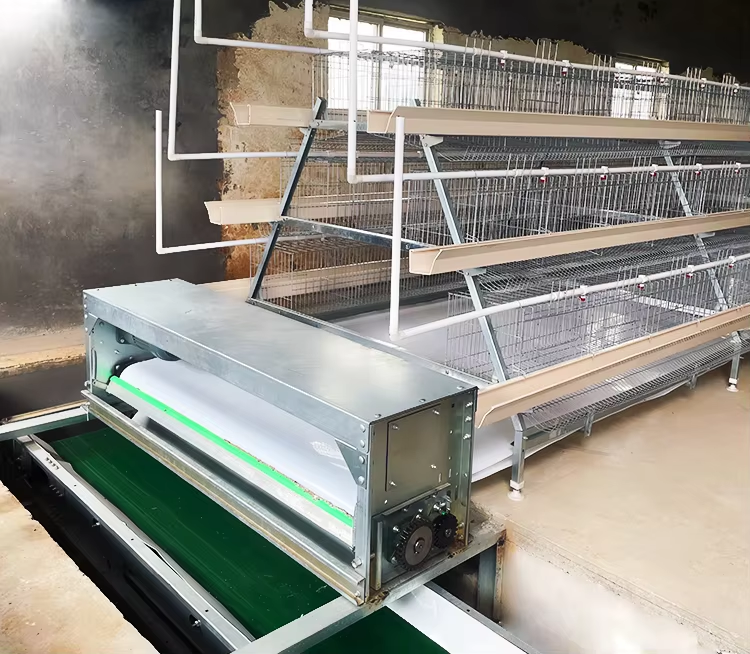

Efficient Manure Removal System
Nylon material, strong and durable, can realize secondary manure scraping. Motor driven for stronger power and smooth operation. Interlock design for thorough manure clearing.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes

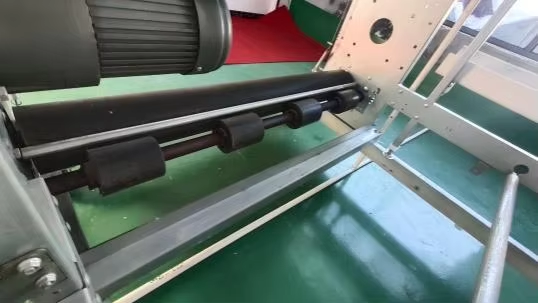

Advanced Manure Belt Design
When released, clears sundries between scraper and rubber roller. Rubber roller at rear end adjusts belt tightness using rubber property to prevent manure belt deviation.
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes
Automatic Galvanized Steel Chicken Poultry Battery Cage with Manure Removal and Customizable Finishes
Company Information
About Us
Based in Shandong, China, established in 2003. Exporting to Africa (20%), Southeast Asia (10%), Mid East (10%), Domestic Market (10%), South America (8%), Oceania (8%), South Asia (8%), Eastern Europe (5%), Eastern Asia (5%), Central America (5%), Northern Europe (5%), Western Europe (4%), North America (2%). Total staff: 11-50 people.
Quality Guarantee
  • Always a pre-production sample before mass production
  • Always final inspection before shipment
Product Range
Chicken Cage, Quail Cage, Floor Feeding System, Incubator, Fan
Services Provided
  • Delivery Terms: FOB, CFR, CIF, EXW
  • Payment Currency: USD, EUR, CNY
  • Payment Methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow
  • Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
