Specifications
Model Number :
KXD-SS78
Payment Terms :
L/C,T/T
Operation :
Fully-Automatic
Cooling Pad Color :
Standard,Black /Red/Green Coated
Price :
USD 20,000.00-100,000.00
Voltage :
380V/220V/415V
Supply Ability :
500000 tons/month
Power Source :
Electric
Drinker Capacity :
10-12 Birds/PCS
MOQ :
1 set
Delivery Time :
25 days
Fan Type :
50'' Cone Fan/Box Fan,54'' Glass Fiber Fan 36''fan
Place of Origin :
Qingdao，China
Packaging Details :
steel pallet
Certification :
ISO/CE/SGS
Brand Name :
KXD
Description
Automatic Poultry Chicken Farm Equipment Floor Bird Feeding Raising Equipment

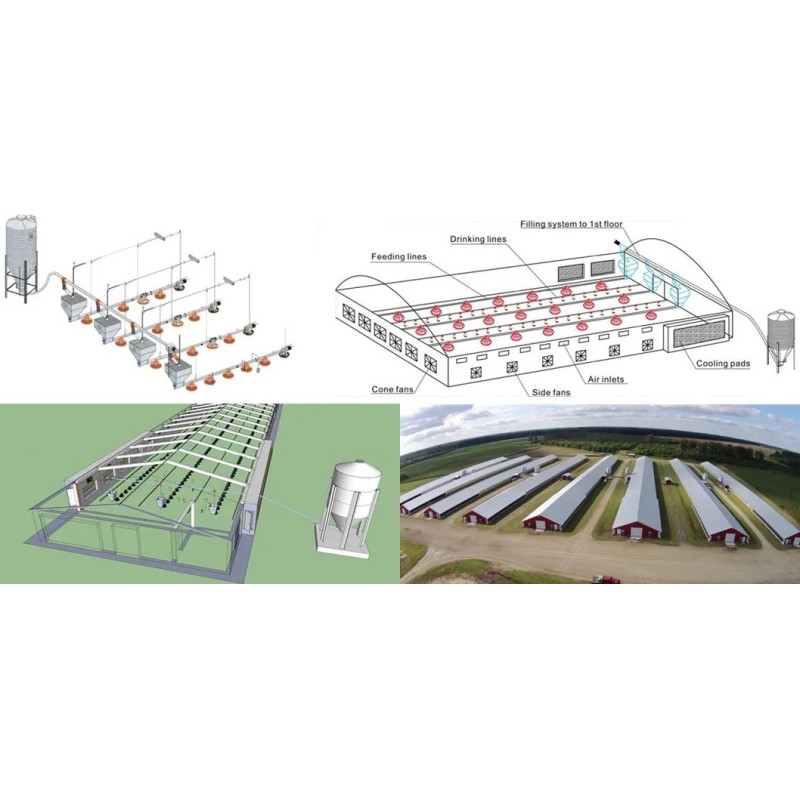

Our prefabricated steel flat poultry house is designed for broilers and breeding chickens, supporting three rearing systems: litter floor rearing, slat net rearing, and mixed rearing.
The main frame utilizes hot-dip galvanized anti-corrosion steel to withstand ammonia corrosion inside the chicken house. Insulated sandwich panels maintain stable indoor temperatures, while the large-span column-free interior maximizes space for automatic feeding and drinking lines.
Complete Automation: Feed silo, pan feeding system, nipple drinking line, ventilation & cooling systems, manure removal, and intelligent temperature control
Animal Welfare: Free movement on litter or slat nets, low disease rate, high survival rate
Easy Installation: Factory prefabricated components, simple shipping and fast assembly
Global Applications: Ideal for poultry farm projects in Burkina Faso, Africa, and Southeast Asia
Complete Poultry Equipment Package
  • Automatic main stock line system
  • Automatic pan feed line system
  • Nipple drinking line system
  • Ventilation system
  • Automatic environment control system
  • Cooling pad system
  • Fogging system
  • Heating system
  • Curtain system for open type chicken sheds
1. Automatic Main Feeding Line System
The automatic feeding system includes feed silos or manual hoppers, drive units, augers, feed level sensors, and other components. When integrated with enclosed poultry houses, it significantly enhances farm management efficiency, reduces cross-contamination risks, and enables full automation of poultry operations.
Feed Silo
Each silo consists of a silo tank, top cover, and support legs. The tank body is constructed with double-sided 275g/m² hot-dip galvanized steel sheets, featuring a viewing port on the conical bottom for monitoring residual feed levels. Multiple silo capacities are available to accommodate various farming scales.
Silo Advantages: High structural strength, superior corrosion resistance, simple on-site assembly, and long service lifespan.
Volume (m³) Feed Capacity (Ton) Diameter (m) Tank Layers Cone Plate Thickness (mm) Leg Plate Thickness (mm) Total Weight (kg) Tank Body Thickness (mm) Overall Height (m)
10.0 5 2.45 1 1.0 2.0 420 1.0 4.7
14.1 8 2.45 2 1.0 2.0 470 1.0 5.6
17.7 10 2.75 2 1.0 2.0 600 1.0 5.6
21.5 15 3.10 2 1.0 2.0 640 1.0 5.6
23.2 16 2.80 3 1.0 2.0 655 1.0 6.5
28.2 20 3.10 3 1.0 2.0 755 1.0 6.5
Manual Hopper
  • Spray-painted surface for wear resistance, corrosion resistance, and elegant appearance
  • Fully detachable structure for space-saving transportation and storage
  • Four standard sizes available with customization options
Volume (m³) Feed Load (kg) Overall Dimension (m) Body Plate Thickness (mm) Support Leg Thickness (mm) Total Weight (kg) Overall Height (m)
0.6 390 2.45 2 2.0 420 1.055
0.8 520 2.45 2 2.0 470 1.055
1.2 780 1.4×1.36 2 3.0 600 1.255
1.4 910 1.4×1.36 2 3.0 640 1.455
Auger and Main Feed Line Pipe
Spring Auger: Imported from South Africa and manufactured with premium spring steel for long service life and strong anti-deformation performance.
Conveying Pipe Diameter Pipe Thickness Pipe Material Auger Model Feeding Capacity Max Conveying Length
75 mm 3.6 mm PVC 75/227 1400 kg/h 60 m
90 mm 4.5 mm PVC 75/322 2400 kg/h 40 m
Drive Motor
  • Die-cast aluminum alloy housing with input and output flanges
  • Excellent heat dissipation, rust-free construction, stable and reliable operation
  • Split-type gearbox design for fast, convenient replacement
Feed Level Sensors
Two types of imported sensors available:
  • Germany IFM feed level sensor (2-wire type)
  • Israel Agrologic feed level sensor (3-wire type)
Fully-Automatic Poultry Farm Equipment with Hot-Dip Galvanized Steel and Negative Pressure Ventilation

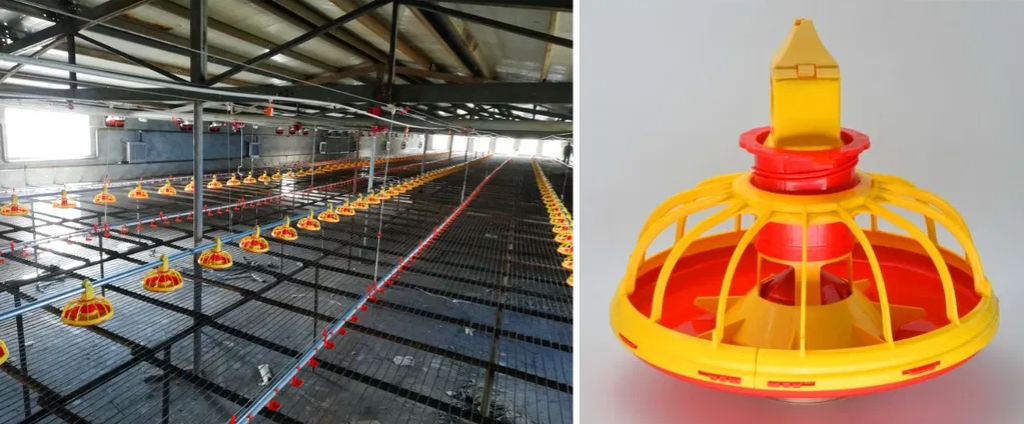

2. Automatic Chicken Pan Feeding Line System
This system delivers feed via rotating helical spring augers, consisting of main feed lines and pan feeding branches. The main feed line starts from either a feed silo or manual hopper, with a feed level sensor installed at the terminal end to automatically control drive motor operation.
Pan Feeding Line
Each independent pan feeding branch includes an end feed sensor to control motor operation and enable automatic feeding.
Branch Hopper
  • Knock-down detachable design saves shipping volume and protects galvanized surface coating
  • Plate thickness: ≥1.2 mm
  • Material: Double-sided 275g/m² hot-dip galvanized steel sheet
Feed Level Sensors
  • Germany IFM feed level sensor (2-wire type)
  • Israel Agrologic feed level sensor (3-wire type)
Drive Motor
  • Housing & flanges: Die-cast aluminum alloy with superior heat dissipation
  • Rust-free construction for stable and durable operation
  • Split gearbox design for fast, simple replacement
Total Equipment Length 0-60 m 60-80 m 80-100 m 100-120 m 120-150 m
Single Phase Power 0.37 kW 0.75 kW 0.75 kW 1.1 kW 1.5 kW
Three Phase Power 0.37 kW 0.37 kW 0.75 kW 0.75 kW 1.1 kW
Feed Pans
Manufactured from virgin plastic blended with anti-aging and anti-UV additives, ensuring a service life over 10 years. Engineered based on global advanced poultry feeding design concepts, suitable for broilers at all growth stages. Multiple pan models and colors available for customized selection.
Turbo Feeding Pan: Upgraded new design featuring user-friendly feeding operation, effortless cleaning, and neat appearance.
Auger & Conveying Pipe
Spring Auger: Imported from South Africa and crafted from premium spring steel. Features long service life and consistent running performance, compatible with both powder feed and pellet feed transport.
Feed Pipe:
  • Standard pipe: Hot-dip galvanized steel pipe with double-sided zinc coating ≥275 g/m² for outstanding anti-corrosion performance
  • Upgraded flanged-edge pipe: Special raised edge design provides better protection for feed pans and extends service life
Fully-Automatic Poultry Farm Equipment with Hot-Dip Galvanized Steel and Negative Pressure Ventilation

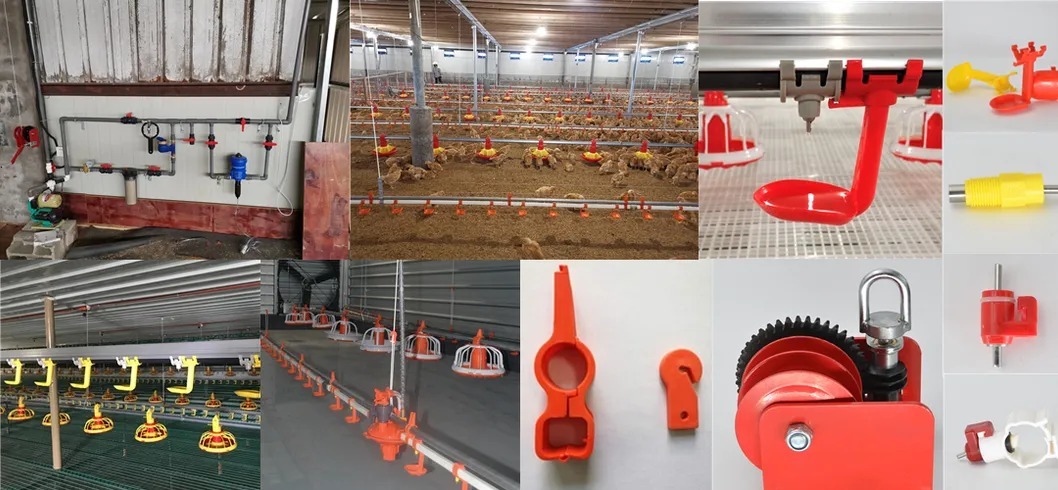

3. Poultry Equipment - Nipple Drinking Line System
The automatic nipple drinking system includes: front system, main water supply system, water inlet system, pressure regulator, nipple drinking line, lifting winch, suspension and lifting system, and anti-perching system.
Water Supply
The front system comprises water filtration, metering, water pressure display, water pressure regulation, and dosing device. Water supply pressure supply and storage devices are optional.
Pressure Regulator
  • Integrated pressure regulation, recoil and water level display
  • Easy operation with quick response
  • Internal valve made of pure raw material, soft and anti-aging
Lifting Winch
Gear undergoes wear-resisting and strength processing. Overall surface is sprayed for attractive appearance and long service life.
Square Water Pipe Drinking Line
  • Lubing type nipple with POM shell and stainless steel components
  • Double-sealed cone valve for excellent sealing effect and strong stability
  • 22x22 pure raw material PVC square tube with light blocking agent to reduce bacterial and moss growth
  • Galvanized tube and aluminum alloy triangle options available
Round Water Pipe
  • Plasson type with aluminum alloy support for enhanced corrosion resistance
  • Round water pipe ensures smooth water flow
  • Snap-in type installation for convenience and speed
  • Improved double-sealed cone nipple for better performance
  • Hollow designed water cup for increased stability
Fully-Automatic Poultry Farm Equipment with Hot-Dip Galvanized Steel and Negative Pressure Ventilation
4. Automatic Environment Control System
Healthy poultry growth depends on a stable environment with fresh air, comfortable temperature, and proper humidity. A reliable, well-designed environmental control system is essential to maintain ideal indoor conditions inside poultry houses.
We offer two optional imported environment controllers: Israel Agrologic series and Rotem AC2000 series.
Control Cabinet
Customized cabinets available to match client requirements. Internal wiring is configured based on actual equipment load. Features elegant appearance, solid construction, and stable reliable operation.

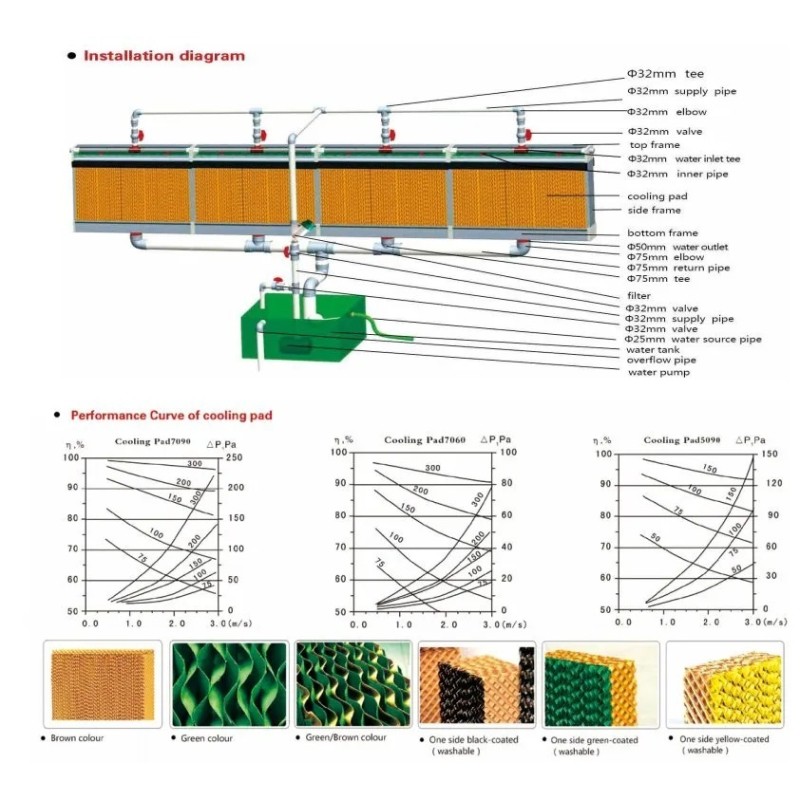

6. Cooling Pad System
Our cooling pads utilize new materials and advanced cross-linking technology, offering high water absorption, excellent water resistance, mildew resistance, and long service life.
Enhanced with high-performance surfactants, the pads provide natural water absorption and fast water diffusion. A single drop of water fully spreads within 4-5 seconds, with water absorption reaching 60-70 mm in 5 minutes and 200 mm in 1.5 hours, complying with international standards.
Manufactured under strict standard procedures, the 600 mm cooling pad contains 85 layers of corrugated sheets. Constructed with imported kraft paper (100g/m², thickness 0.18-0.2 mm, tensile resistance 70 N, water absorption height 45 mm/10 min, moisture 5-8%, humidity resistance 18 N).
The cooling pads contain no phenol or skin-allergic chemicals. They are non-toxic and harmless during installation and usage - safe, energy-saving, environmentally friendly, and cost-effective.
Fully-Automatic Poultry Farm Equipment with Hot-Dip Galvanized Steel and Negative Pressure Ventilation
Global Market Presence
KXD chicken farm equipment serves markets worldwide including: China, Philippines, Indonesia, Australia, Fiji, Pakistan, Uzbekistan, Mozambique, South Africa, Namibia, Zimbabwe, Sudan, UAE, Bahrain, Saudi Arabia, Lebanon, Palestine, Ukraine, Algeria, Nigeria, Kenya, Paraguay, Colombia, Peru, Costa Rica, Honduras, Dominica, and more.
