Specifications
Model Number :
KXD-SS7
Payment Terms :
L/C,T/T
Coating :
Hot-dip galvanized steel
Steel Type :
Carbon Structural Steel
Price :
USD 20,000.00-100,000.00
Lighting :
LED Lighting System
Supply Ability :
500000 tons/month
Specification :
SGS, ISO, BV
Purlin :
C/Z section steel
MOQ :
1 set
Delivery Time :
20 days
Main Structure :
Galvanized Light Steel Frames
Packaging Details :
steel pallet
Place of Origin :
Qingdao,China
Certification :
ISO/CE/SGS
Brand Name :
KXD
Description

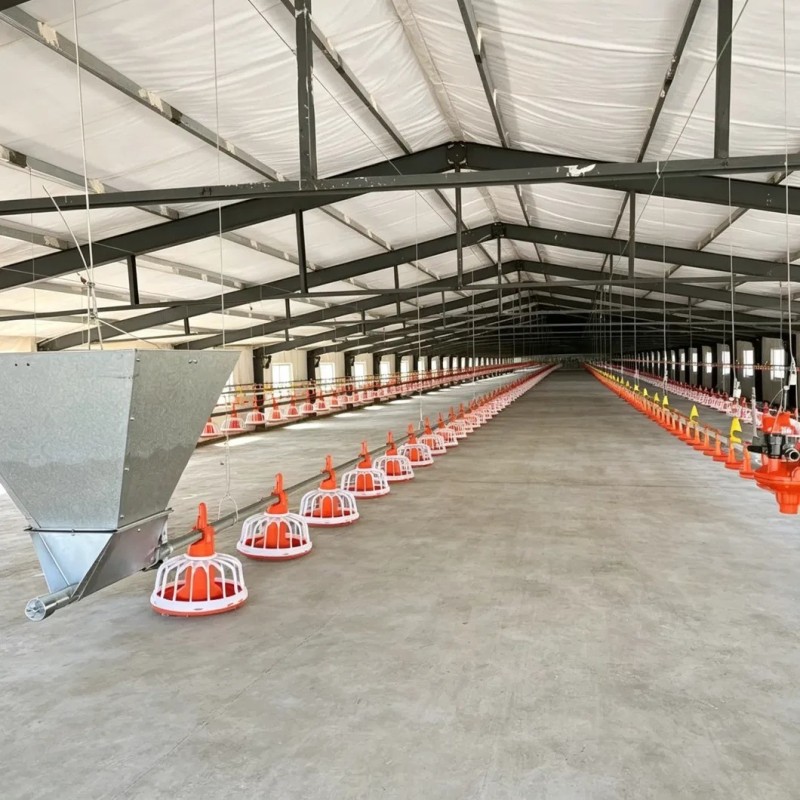

Automatic Poultry Raising System For Chicken Broiler Farm Ground Floor Feeding And Watering Equipment
Company Overview

Qingdao KXD Steel Structure Co., Ltd is located in Qingdao City, China, with convenient access to Qingdao Port. Our company is one of the leading manufacturers of poultry farming equipment. Supported by advanced management systems and strong engineering teams, we specialize in designing and producing high-quality, energy-saving and eco-friendly products.

Our factory mainly produces poultry farm equipment including silo systems, automatic pan feeding systems, automatic nipple drinking systems, ventilation systems, cooling pad systems, heating systems, fogger spraying and disinfection systems, environmental control systems and curtains.

We keep striving to provide better products and services for customers worldwide. Our company always adheres to the philosophy: Survive by Quality, Manufacture with Value, Develop by Products, Benefit by Management.

Global Experience & Certifications

We have completed many modern poultry farming projects across the globe, covering Sudan, Saudi Arabia, Algeria, Nigeria, Zimbabwe, Mozambique, South Africa, Tanzania, Zambia, Philippines, Indonesia, India, Uzbekistan, Bahrain, Bangladesh, UAE, Lebanon, Palestine, Qatar, Kosovo, Peru, Colombia, Honduras, Dominican Republic, Paraguay, Ecuador, Costa Rica, Argentina, Greece, Spain, Australia, Fiji and other countries.

We have CE certification and relevant product certificates. Our high-quality chicken farm equipment at competitive prices is well received by clients all over the world. We are committed to supplying premium poultry farming equipment.

We aim to become one of the most influential and valuable suppliers of animal husbandry equipment solutions worldwide. We sincerely welcome customers to visit our factory and establish business cooperation. We will consistently provide top-quality products and professional services at all times.

Silo System Specifications

Silo and manpower hopper are the beginning part of main feed line system. There is a feed sensor at the end of main feed line which controls the motor on or off to achieve automatic feed delivery.

Model Volume Height (No foundation) Diameter
MRS-4.0T 6.2M³ 4.9M 1.833M
MRS-7.3T 11.2M³ 4.9M 2.75M
MRS-10.6T 16.4M³ 5.68M 2.75M
MRS-14T 21.6M³ 6.8M 2.75M
MRS-20.8T 32M³ 6.9M 3.66M
MRS-27.3T 42M³ 7.9M 3.66M
Manpower Size: 600KG, 800KG
Material: Dip-hot galvanized sheet
Driving Motor Power: 0.75Kw
Voltage: 220V/380V
Frequency: Three-phase/Single-phase
Feed Conveying Pipe Diameter of conveying pipe: 75*3.6mm
Material: PVC
Helical spring auger: Import from South Africa
Feeding ability: 1400KG/H
Conveying length: 60m
Radius of bending Pipe: R1500-2000
Sensor Brand: Germany IEF feed level sensor
Silo Features
Silo with standard ladder and guard railing is safe and reliable
Silo connection and good sealing performance
Steel sheet double-layer galvanized ensure a service life of more than 10 years
FRP (Fiber reinforced plastics) silo has a good performance of water-proof, moisture-proof, and insulation, which ensure a long service life

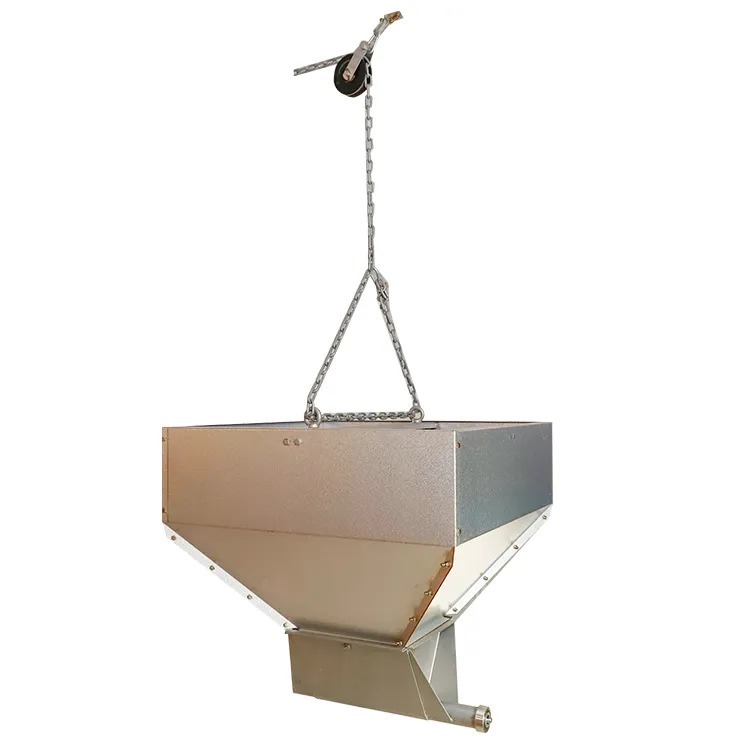

Pan Feeding Line System
Hopper Size: 70KG/90KG
Material: hot-dip galvanized sheet, thickness: 1mm
Automatic Poultry Raising System with Galvanized Light Steel Frames and Hot-dip Galvanized Steel for Chicken Broiler Farm Equipment
Pan Feeding Line Conveying pipe: Holes: 4 pans/3m, 3 pans/3m, Diameter: 45mm, Material: galvanized steel pipe, zinc coating amount: 275g/m², thickness: 1.2mm
Feed Pan: Material: pure engineering plastic, Grille: 14 grilles/16 grilles, Weight: 580g/pc, Color: Orange, Red, Yellow, Raising ability: 50~55 broilers/pc
Spring Auger: Imported from South Africa, Diameter: 36mm
Feeding ability: 400Kg/h
Automatic Poultry Raising System with Galvanized Light Steel Frames and Hot-dip Galvanized Steel for Chicken Broiler Farm Equipment
