Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Specifications
Certification :
ISO
Rearing :
on Cage or Floor
Supply Ability :
15000 tons Per Month
Delivery Time :
20-30 working days
Warranty :
50 Years
Drawing :
CAD, TEKLA, 3D Model, PKPM, BIM
Production Capacity :
30000ton/Year
Place of Origin :
China
MOQ :
600sqm
Galvanization Type :
Hot-dip galvanized
Mobility :
Easy
Trademark :
KXD
Rooftype :
Sloped Roof
Assembly :
Prefabricated Components
Tiers :
4
Packaging Details :
seaworthy packing
H Beam Length :
4000-15000mm
Payment Terms :
L/C,T/T,Western Union
Specification :
Prefab steel buildings
Model Number :
6
Price :
40~100 usd/sqm
Usage :
Poultry Farming
Connection Form :
Bolt Connection
Brand Name :
KXD
Installation :
Easy Assembly
Description
Prefabricated Commercial Poultry Farming Equipment | Modern Chicken Farm Cage System with Automatic Feeding & Ventilation
Investing in high-efficiency, commercial-grade poultry farming equipment is the cornerstone of maximizing egg production and broiler growth rates. Our integrated poultry farming solutions are engineered to deliver precise climate control, automated feeding, and optimal biosecurity for modern poultry operations worldwide.
Whether you are expanding an existing poultry house or establishing a turnkey commercial chicken farm, our systems are customized to comply with international livestock standards, ensuring long-term structural durability and high return on investment (ROI).
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Key Systems & Technical Specifications
Automatic Cage Systems (H-Type & A-Type)
Our cage systems are manufactured using hot-dip galvanized steel wire, providing exceptional corrosion resistance and a service life of over 15-20 years.
  • Layer Cage System: Designed to minimize egg breakage rates (below 0.5%) and optimize bird density per square meter.
  • Broiler Cage System: Features adjustable feed troughs and floor meshes to accommodate chicks from day-old to maturity.
Automatic Feeding and Drinking System

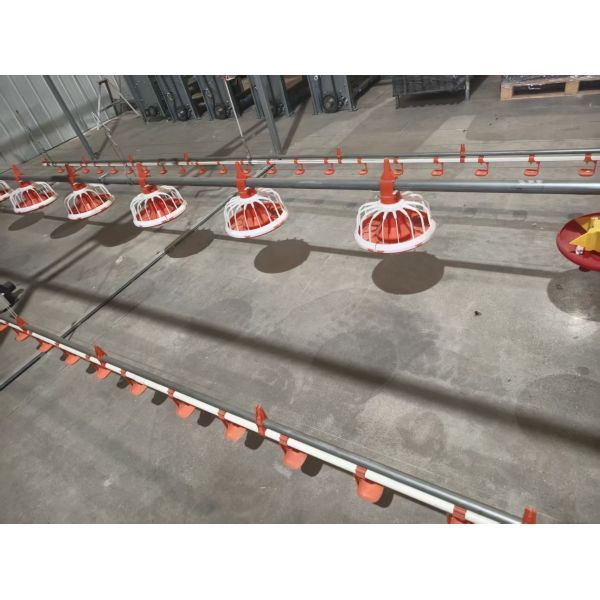

  • Feeding Line: Silo-fed auger systems distribute feed evenly across all tiers, preventing feed wastage.
  • Drinking Line: High-quality 360-degree nipple drinkers paired with water pressure regulators ensure constant clean water supply without leakage, keeping the manure dry.
Intelligent Environmental Control System
To maintain optimal internal temperatures in various climate zones—from high-temperature tropical areas to colder regions—we provide a fully synchronized ventilation setup:
  • Exhaust Fans & Cooling Pads: Utilizing high-volume cone fans and evaporative cooling pads to reduce temperatures by 5-10°C efficiently.
  • Air Inlets: Automated air inlets controlled by the environment controller (e.g., Israel Agrologic or similar high-standard microcomputer systems) to manage airflow and static pressure.
Technical Data Sheet
System Component Material / Specification Key Feature / Advantage
Main Frame Structure Hot-Dip Galvanized Steel (275g/m² zinc coating) High corrosion resistance, structural stability in high-humidity houses
Feeding Method Traveling Hopper / Auger Driving System Uniform distribution, adjustable feed volume, low maintenance
Manure Removal PP Manure Belt System (Thickness: 1.0mm - 1.2mm) Regular automatic cleaning, reduces ammonia level to <10ppm
Egg Collection System Nylon Belt with Lift & Collector Smooth transportation, prevents micro-cracks, saves manual labor
Ventilation Fans 50-inch / 36-inch Exhaust Fans (Stainless steel blades) Low noise, high air volume, energy-saving frequency motor
Cooling Pad System Cellulose Paper (7090 / 5090 model) with Alu Frame High water absorption efficiency, rapid temperature drop
Hot-Dip Galvanized Steel Poultry Farming Equipment with Automatic Feeding and 4 Tiers Chicken Farm Cage System
Advantages of Our Poultry Infrastructure
  • High Land Utilization: Compared to floor-raising systems, H-type cage systems increase the stocking density per square meter by 3 to 4 times, maximizing your land investment.
  • Strict Biosecurity: Automated manure removal and independent feeding zones drastically decrease the risk of disease transmission, reducing mortality rates.
  • Energy and Labor Efficiency: A single poultry house of 30,000 birds can be easily managed by just one operator, significantly lowering operational overhead.
  • Customized Layout Design: Our engineering team provides detailed CAD layout drawings based on your specific land dimensions and local wind/snow load parameters.
Global Project & Shipping Logistics
We have extensive experience in global B2B supply chains and bulk equipment export. All mechanical parts, steel structures, and electrical controllers are packed using standardized sea freight methods.
  • Packaging: Heavy parts are secured on steel pallets; sensitive electrical components and motors are wrapped in moisture-proof wood cases to ensure safe transit during long-distance ocean shipping.
  • Container Loading Optimization: Our logistics team calculates the precise loading volume (40ft HQ containers) to reduce ocean freight costs for our clients.
Frequently Asked Questions
Q1: How do I choose between H-type and A-type chicken cages for my project?
H-type cages are fully automated, ideal for large-scale, high-density commercial farms (usually above 25,000 birds) where land cost is high and manual labor is expensive. A-type cages are simpler in structure, offer excellent ventilation natural light, and are highly cost-effective for small-to-medium operations or regions with stable manual labor.
Q2: Can your poultry farming equipment handle extreme tropical climates?
Yes. For hot and humid regions, we configure a specialized heavy-duty ventilation system using thick evaporative cooling pads and high-velocity exhaust fans. The system creates a wind-chill effect that keeps the internal house temperature at an optimal 22-25°C even when outside temperatures exceed 38°C.
Q3: What is the estimated lifespan of your hot-dip galvanized cage systems?
Our cage meshes and frames utilize heavy hot-dip galvanizing technology (275 g/m² zinc coating). This standard ensures high resistance to the corrosive ammonia gasses inside the poultry house, extending the physical lifespan of the equipment to 15-20 years with proper maintenance.
Q4: Do you provide layout design and technical guidance for installation?
Absolutely. Once the house dimensions and bird capacity are confirmed, our technical team provides free layout designs and structural spacing diagrams. We provide comprehensive installation manuals, step-by-step videos, and remote engineering support to ensure your local team can assemble the equipment correctly.
Q5: How does the automatic manure removal system help in disease control?
The PP manure belt removes waste out of the poultry house daily or every two days. By separating the birds from their droppings immediately, the system keeps ammonia (NH₃) levels below 10ppm and hydrogen sulfide (H₂S) to a minimum, drastically reducing respiratory diseases and increasing flock livability.
