5500mAh CP783970 Primary Lithium Pouch Cell
5500mAh CP783970 Primary Lithium Pouch Cell
Specifications
Brand Name :
HCB
Model Number :
CP783970
Certification :
UN/CE/UL/RoHS
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
two million unit per month
Delivery Time :
15 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Self-Discharge :
≤2%
Operating Temperature :
-40℃ ~ +70℃
Model :
CP783970
Max Size(mm) :
8.0×40×71
All-up weight :
37.0g
Nominal Capacity :
5500mAh
Maximum Continuous Current :
2000mA
Maximum Pulse Discharge Current :
3000mA
Description

5500mAh CP783970 Primary Lithium Soft Batteries 3V for Military Defence

Nominal Capacity 5500mAh
Battery discharged at continuous current 5mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.0 V
Maximum Continuous Current 2000mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 3000mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -40℃ to +70℃

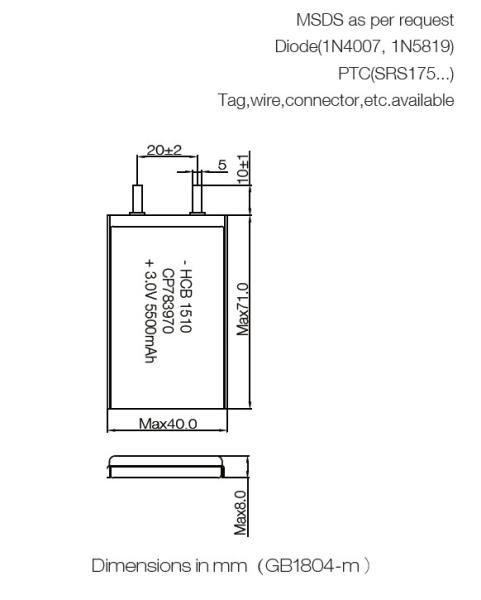

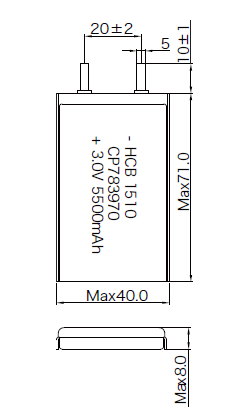

Battery Dimension See drawing on pag
Max Weight 37.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1.CP783970 Lithium MnO2 Primary Soft Battery Characteristic

  • High Voltage

Nominal voltage up to 3.0 V

  • High Energy Density

Energy density up to 450Wh/kg

  • Wide Operating Temperature Range

-40°C to +70°C

  • Long Shelf Life

Self discharge rate is less than 2% per year at room temperature
No passivation effect, instant install-and-use, maintenance free
Ultra thin

  • Variable Design

Battery of variable dimensions can be selected to fit in the customer’s design
Custom batteries and battery packs are also available

  • Greater Safety

The structure of the battery offers greater safety to meet customer’s requirement for special applications

2. CP783970 Lithium MnO2 Primary Soft Battery Main Applications

  • Internet of Things

Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

  • Monitoring

Animal health monitoring system,forest fire alert, smart irrigation system, etc.

  • Marine & Lifesaving

Life jacket, signal light, buoy, etc.

3. HCB Lithium Primary Battery Manufacturing Advantages

  • HCB can make good quality Soft Pack Li-MnO2 Battery with 9 years experience;
  • There are nearly 60 available models for Soft Pack Li-MnO2 Battery;

4. HCB Lithium Primary Battery Company Advantages

  • HCB quality management meets the standard GB/T19001-2008/ISO9001:2008;
  • HCB Environment Management System meets the standard GB/T24001-2004/ISO14001:2004;
  • CE Standard is workable for HCB Battery;
  • Rosh Standard is workable for HCB Battery;
  • UL Standard is workable for HCB Battery;
