A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V
A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V
A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V
A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V
Specifications
Brand Name :
HCB
Model Number :
ER17505/ A model
Certification :
UN/CE/RoHS/UL
Place of Origin :
China
MOQ :
1K pcs
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
Two millions units per month
Delivery Time :
35 work days
Packaging Details :
Special design for Air/Sea/Courier transportation
Classification :
Bobbin
Max Pulse Current(mA) :
260
Energy Density :
510Wh/Kg
Nominal Capacity :
3600mAh
Maximum Continuous Current :
130mA
Open Circuit Voltage :
≥3.6V
Description

A Model 3600mAh Primary Lithium Thionyl Chloride Li-SOCl2 Batteries ER17505 3.6V

Nominal Capacity 3600mAh
Battery discharged at continuous current 1.7mA until voltage reaches cut-off voltage 2.0V at ambient temperature 23±2℃
Nominal Voltage 3.6 V
Maximum Continuous Current 100mA
Battery with minimum 50% rated capacity discharged at ambient temperature 23±2℃
Maximum Pulse Discharge Current 250mA
Battery with minimum 50% rated capacity discharged at max pulse for 3 seconds after 27seconds break. Ambient temperature 23±2℃
Storage Condition

Temperature ≤ 30℃

Humidity ≤ 75%RH
Operating Temperature -55℃ to +85℃
Battery Dimension See drawing on pag
Max Weight 24.0g
Self-discharge Rate 2%
Max self-discharged rate at ambient temperature 23±2℃
Shelf Life 10 years
Ambient temperature 23±2℃

1. Battery Characteristic

  • High Voltage

We provide the rated voltage is 3.6V, the working voltage varies with the load, generally between 3.3V ~ 3.6V

  • High Energy Density

Specific energy density up to 510Wh/kg

  • Wide Operating Temperature Range

We provide a wide operating temperature range, from -55℃ to +85℃

  • Stable Operating Voltage

Stable operating voltage, more than 90% of the capacity could be output with a fixed voltage

  • Long Shelf Life

Under the condition of normal temperature, the battery self -discharge rate of no more than 2% per year

Hermetic welding sealing to reduce the leakage for extending the shelf life to more than 10 years

2. Main Applications

  • Internet of Things

Asset tracking toll-gate transponders smart home bike-sharing IC cards GPS, TPMS, RFID, etc.

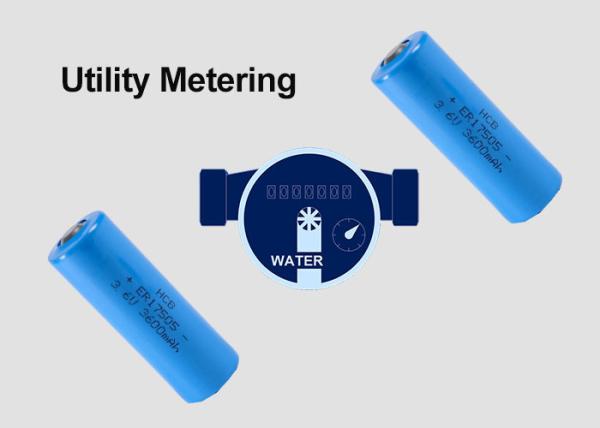

  • Monitoring

Animal health monitoring system,forest fire alert, smart irrigation system, etc.

3. Manufacturing Advantages

  • The technology in HCB is advanced and automatic;
  • The cathode manufacturing process in HCB is advanced and unique;
  • The main solutions are high power, high capacity(hermetic & semi sealing). Low temperature etc;
  • Combing suggestions and multiple cascade and parallel connecting ways are workable for HCB;

4. Use Warning

  • This battery is a non-rechargeable battery.
  • DO NOT CHARGE THE BATTERY!
  • Do not use if the battery casing is damaged.
  • Please discharge the battery for a few minutes with 100mA.
  • Don't use different models of battery in series.
  • This is not a high drain battery, please don't use it for any applications with discharging current > 200 mA!
  • The storage area should be clean, cool (not exceeding +30 Deg C), dry and ventilated.

A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V

A Model Li-SOCl2 Battery 3600mAh Primary Lithium Thionyl Chloride ER17505 3.6V
