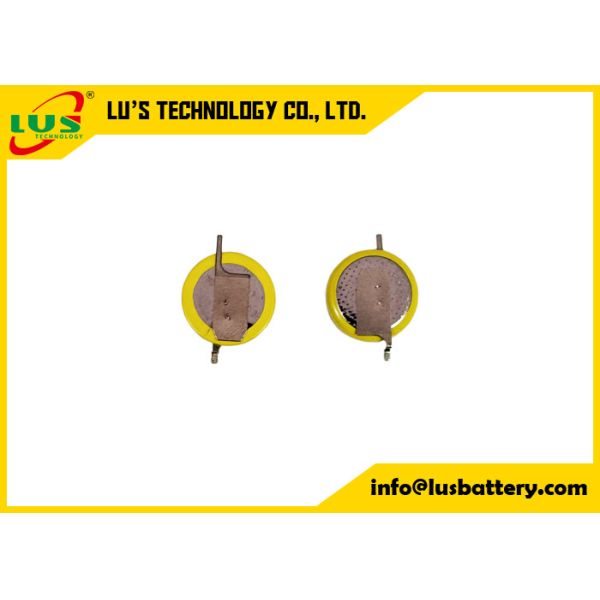

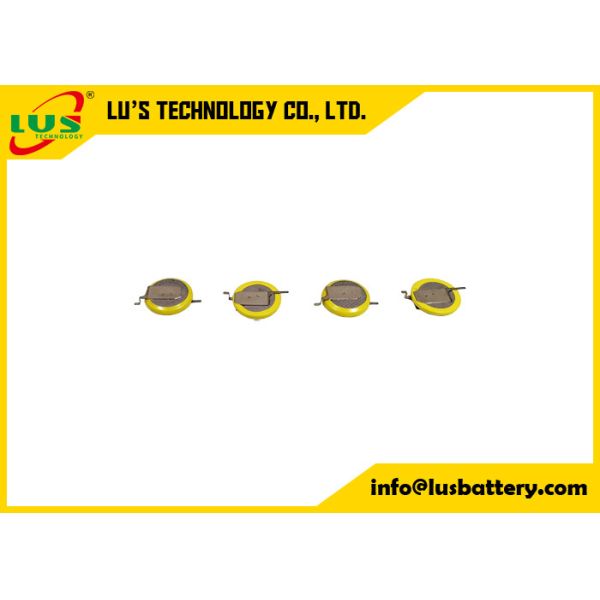

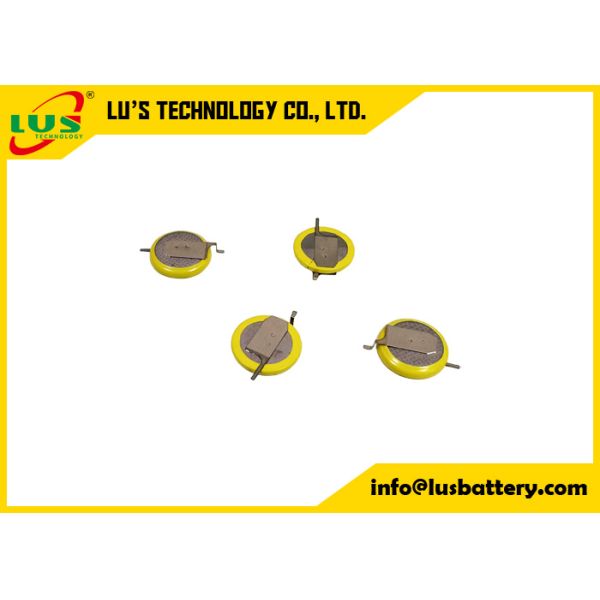

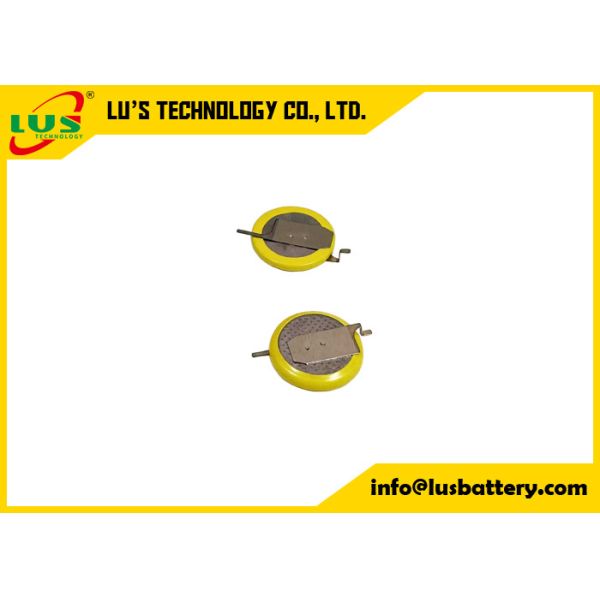

3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery
Specifications
Brand Name :
OEM
Model Number :
ML1220 lithium battery 18mah 3V battery
Place of Origin :
China
MOQ :
100pcs
Price :
Bargain
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100000 pcs/Month
Delivery Time :
5-7 working days
Packaging Details :
Cartons
Type :
Limno2 Coin Cell battery
Battery PN :
ML1220
Voltage :
3.0V
Capactiy :
18mah
Package :
Cartons
Terminals :
Pins, wires, connector or Customized
Description

3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery factory

ML1220 Rechargeable Lithium Battery 3V CoinCell battery MI1220 lithium battery MI1220 3V Battery ML1220 Recharageable limno2 battery ML1220 3Volt battery ML1220 18mah Battery ML1220 Coin limno2 battery 12.5mm 3 V Lithium Battery Rechargeable button battery ML1200 Secondary 18mAh rechargeable lithium coin type batteries Ml1220 small rechargeable cion battery ML1220 battery is commonly used in electronic devices such as notebook and laptop computers, PDAs, tablet PCs, digital cameras and more

ML1220 Technical

ML1220 3V Rechargeable cion size battery ML1220 CMOS RTC BIOS Back Up Battery 3.0 volt Lithium-aluminum button battery ML1220 3V Rechargeable lithium battery 3V 18mah Manganese Lithium Coin Batteries Manufacturer luS battery

Battery type Li-mno2 cion type rechargeable battery

Battery seires button type rechargeable battery

Voltage 3.0 vdc

Capacity 17mah 18mah small size rechargeable battery

CLASSIFICATION MANGANESE DIOXIDE LITHIUM RECHARGEABLE BATTERY
BATTERY SYSTEM COIN TYPE MANGANESE DIOXIDE LITHIUM BATTERY
BATTERY TYPE ML1220
NOMINAL VOLTAGE 3.0V
NOMINAL CAPACITY 18mAh
(ON CONTINUOUS DISCHARGE UNDER 30kΩ load to 2.0V end-point)
STANDARD DISCHARGE CURRENT 0.1mA
MASS APPROX. 0.85g
SIZE Φ12.5(+0/-0.3)mm
2.0(+0/-0.2)mm
USABLE TEMPERATURE RANGE -20ºC~+70ºC
STORAGE TEMPERATURE RANGE 0ºC~30ºC
STORAGE HUMIDITY RANGE 35%~75%

ML1220 lithium battery 3VDC rechargeable limno2 battery ML1220 batteris

3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery

ML1220 Application

This small rechargeable ML1220 battery is commonly used in

electronic devices

such as notebook and laptop computers, PDAs, tablet PCs, digital cameras

and communications equipment.

It is commonly used as a backup clock battery in many timer equipped home electronics

devices.

3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery

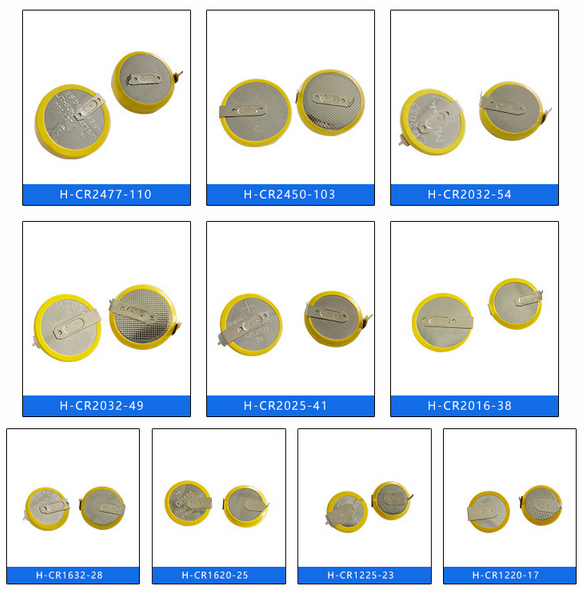

Coin cell list

Mode

 Voltage(V) Capacity(mAh) Dimension(mm) Weight(g) Chargeable or Non
CR2032 3 220 20.0*3.2 3 Non
CR2032 3 240 20.0*3.2 3 Non
CR1220 3 35 12.5*2.0 0.8 Non
CR1225 3 50 12.5*2.5 0.9 Non
CR1616 3 50 16.0*1.6 1.1 Non
CR1620 3 70 16.0*2.0 1.3 Non
CR1632 3 120 16.0*3.2 1.8 Non
CR2016 3 83 20.0*1.6 1.7 Non
CR2025 3 150 20.0*2.5 2.5 Non
CR2450 3 600 24.5*5.0 6.2 Non
CR3032 3 550 30.0*3.2 7 Non
ML1220 3 17 12.5*2.0 0.8 Yes

3.0Volt 18mah Cmos Battery ML1220 lithium rechargeable battery ML1220 cion cell battery

Model Nominal Voltage (V) Nominal Capacity (mAh) Max. Discharge Current (mA) Resistance (mΩ) Diameter (mm) Height (mm) Weight Approx (g)
LIR1025 3.6 6±2 1C 　 10.0 -0.15 2.5 +0.15 1.1±0.2
LIR1220 3.6 8±2 1C 　 12.5 -0.2 2.0 +0.35 0.8±0.3
LIR1254 3.6 65±5 1C ≤600 12.0 -0.2 5.4 +0.2 1.8±0.2
LIR1620 3.6 16±2 1C ≤2000 16.0 -0.2 2.0 +0.35 1.2±0.3
LIR1632 3.6 25±2 1C ≤2000 16.0 -0.2 3.2 +0.35 1.7±0.3
LIR1654 3.6 120±5 1C ≤600 16.0 -0.2 5.4 +0.2 2.4±0.2
LIR2016 3.6 18±2 2C ≤2000 20.0 -0.2 1.6 +0.35 1.7±0.3
LIR2025 3.6 25±5 2C ≤2000 20.0 -0.2 2.5 +0.25 2.3±0.3
LIR2032 3.6 40±5 2C ≤600 20.0 -0.2 3.2 +0.35 2.8±0.3
LIR2050 3.6 80±5 2C ≤600 20.0 -0.2 5.0 +0.2 3.8±0.2
LIR2430 3.6 60±5 2C ≤500 24.5 -0.2 3.0 +0.35 3.8±0.3
LIR2450 3.6 120±10 2C ≤450 24.5 -0.2 5.0 +0.35 5.0±0.3
LIR2477 3.6 180±10 2C ≤400 24.5 -0.2 7.7 +0.3 7.0±0.3

LUS battery welcome any lithium battery 3V coin size battery 3.0V rechargeable battery customization
