3V 800mah lithium battery CR14250 cylindrical primary lithium battery customized factory CR14250 battery factory

CR14250 3V Lithium Manganese Dioxide Battery 800mah Lithium Manganese Dioxide Battery 3V Li MnO2 battery CR14250 3V 800mah CR14250 1/2AA size battery 1/2AA Lithium Manganese Dioxide 3 V Battery CR14250 Non-Rechargeable battery 3.0volt Primary battery CR14250 3V Batteries CR14250 Battery CR14250 PLC Industrial Control Motherboard lihtium battery CR 1/2 AA 3V Lithium Battery CR14250 CR1/2AA 3V 800ma Lithium Battery CR14250 non-rechargeable lithium battery 1/2AA

Lithium battery CR14250 data sheet:

CR14250 primary lithium battery 3Volt battery 800mah limno2 batteris

Cautions in use

To ensure proper use of the battery please read the manual carefully before using it.

Handling

Do not expose to, dispose of the battery in fire.

Do not put the battery in a charger or equipment with wrong terminals connected.

Avoid shorting the battery

Avoid excessive physical shock or vibration.

Do not disassemble or deform the battery.

Do not immerse in water.

Do not use the battery mixed with other different make, type, or model batteries.

Keep out of the reach of children.

Storage

Store the battery in a cool, dry and well-ventilated area.

Disposal

Regulations vary for different countries.

Dispose of in accordance with local regulations.

Note

Any other items which are not covered in this specification shall be agreed by both parties.


Lithium Primary Batteries Li mno2 3V Key Features

1. High Energy Density

It is about 3 to 10 times more energy density than any other secondary battery. The energy

density of Li MnO2 battery is up to 370Wh/kg and above.

2. High and Stable Operating Voltage

CR Series >2.7V (OCV 3.0V)

3. Wide Operating Current Range

To ensure the ten year service life, the cell operating current is merely at a few microamperes.

On the other hand, Forte also offers a wide range of options for varied needs; we can also

provide the cells with pulse current up to several amperes.

4. Wide Operating Temperature Range

For different cell types and under different operating current and applications, the operating

temperature endures from -40℃ to +70℃.

5. Long Shelf Life

Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly

capacity loss of the CR series less than 1% .

6. Outstanding Service Life

Up to 10 years operating life for some application based on different current.

7. Ultimate Safety

All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test

requirement.

Hermetically glass to metal sealed.

Blast resistant construction to assure the safety.

Non-flammable electrolyte

8. Green Energy

Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of

the wastes are naturally degradable and no long-term pollution to environment.

Lithium Manganese batteires 3V APPLICATION:
　
Utility meters (water, electricity, gas meters and AMR)

Alarm or security equipment (smoke alarm systems and detectors)

GPS tracking

Teal time clocks

Remote monitoring systems

Car electronics

Photo cameras

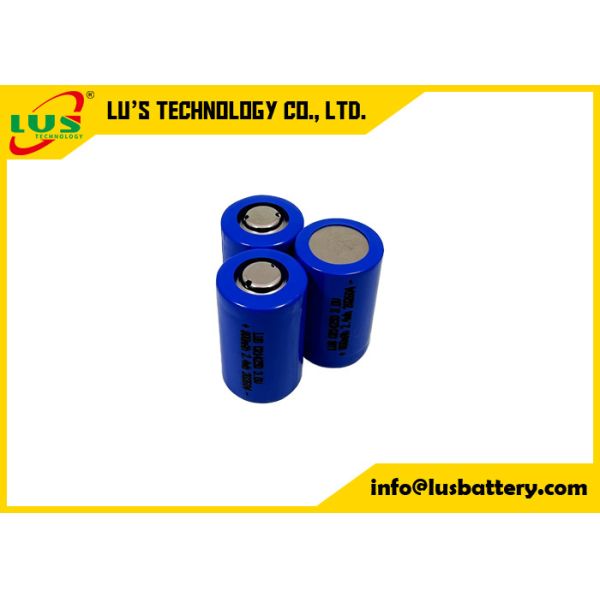

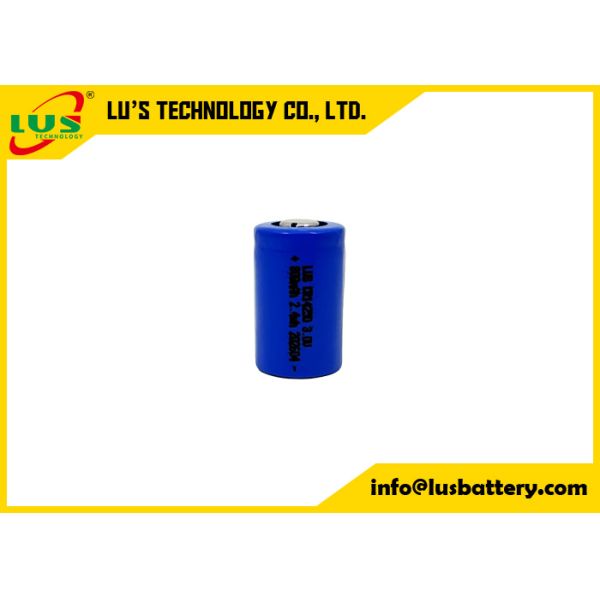

2*CR14250 lithium battery pack Product Picture:
