Specifications
Payment Terms :
L/C, T/T, Western Union
Part number :
CR2450
Battery type :
Primary coin cell battery
Model Number :
disposable cion cell battery CR2450
Battery pack OEM :
Welcome
MOQ :
10pcs
Delivery Time :
5-7 working days
Capacity :
600mah single cell
Terminals :
Wires/Pins/Connector or customized
Packaging Details :
Cartons
Brand Name :
OEM
LOGO :
Welcome customized
Place of Origin :
China
Price :
Bargain
Jacket :
Yellow / Blue or customized logo PVC
Supply Ability :
1000000 pcs/Month
Voltage :
3.0V
Certification :
UL/CE/UN
Description

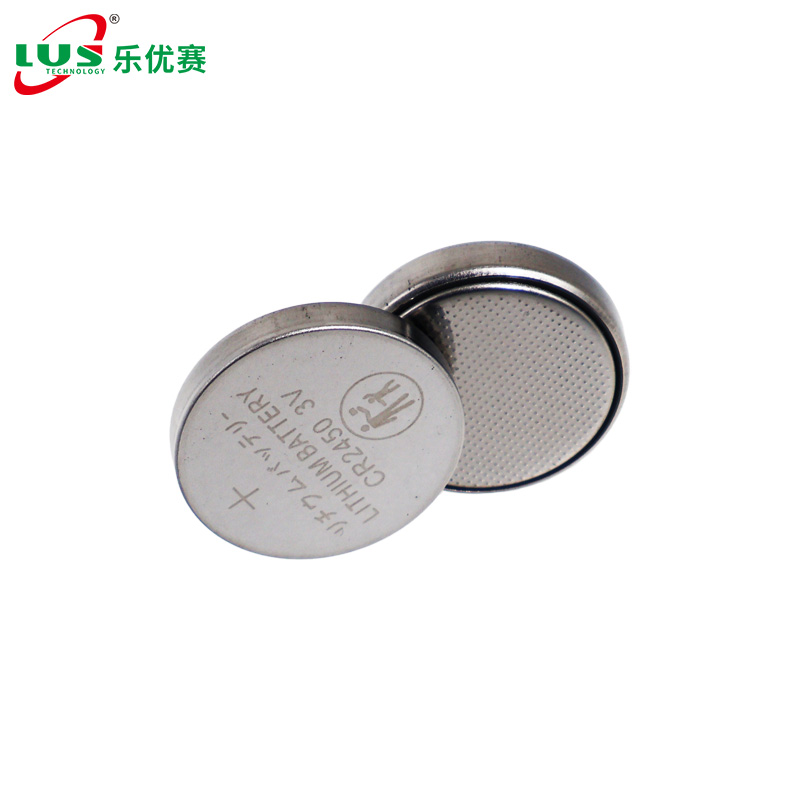

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery

CR2450 3-Volt Lithium Coin Battery CR2450 battery 3.0Volt non-rechargeable lithium battery 3V coin battery 600mah button cell battery CR2450 Coin Lithium Batteries CR2450 Battery 3v Lithium Button Cell battery 3V 600mah Coin 2450 Batteries CR2450 3V Lithium Coin Cell Button Battery Replaces DL2450, ECR2450 & 2450 3V coin cell batteries

CR2450-1P Limno2 Battery Pack IMOS1p1-A1 3V

ITEM UNIT SPECIFICATIONS CONDITIONS
Nominal voltage V 3.0 Standard discharge
Nominal capacity mAh 600(single cell) Standard discharge
Instantaneous short–circuit current mA ≥250 Time≤0.5 second
Off-load voltage V ≥3.30
Storage temperature ℃ 0~35
Standard weight g 7g Unit cell

CR2450 lithum battery 600mah 3V battery:

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery

Coin cell list

Non rechargeable limno2 button battery 3.0Volt button cell batteris

Mode

Voltage(V) Capacity(mAh) Dimension(mm) Weight(g) Chargeable or Non
CR2032 3 220 20.0*3.2 3 Non
CR2032 3 240 20.0*3.2 3 Non
CR1220 3 35 12.5*2.0 0.8 Non
CR1225 3 50 12.5*2.5 0.9 Non
CR1616 3 50 16.0*1.6 1.1 Non
CR1620 3 70 16.0*2.0 1.3 Non
CR1632 3 120 16.0*3.2 1.8 Non
CR2016 3 83 20.0*1.6 1.7 Non
CR2025 3 150 20.0*2.5 2.5 Non
CR2450 3 600 24.5*5.0 6.2 Non
CR3032 3 550 30.0*3.2 7 Non
ML1220 3 17 12.5*2.0 0.8 Yes

Rechargeable cion cell battery 3.6V cion lithium ion battery

Model Nominal Voltage (V) Nominal Capacity (mAh) Max. Discharge Current (mA) Resistance (mΩ) Diameter (mm) Height (mm) Weight Approx (g)
LIR1025 3.6 6±2 1C   10.0 -0.15 2.5 +0.15 1.1±0.2
LIR1220 3.6 8±2 1C   12.5 -0.2 2.0 +0.35 0.8±0.3
LIR1254 3.6 65±5 1C ≤600 12.0 -0.2 5.4 +0.2 1.8±0.2
LIR1620 3.6 16±2 1C ≤2000 16.0 -0.2 2.0 +0.35 1.2±0.3
LIR1632 3.6 25±2 1C ≤2000 16.0 -0.2 3.2 +0.35 1.7±0.3
LIR1654 3.6 120±5 1C ≤600 16.0 -0.2 5.4 +0.2 2.4±0.2
LIR2016 3.6 18±2 2C ≤2000 20.0 -0.2 1.6 +0.35 1.7±0.3
LIR2025 3.6 25±5 2C ≤2000 20.0 -0.2 2.5 +0.25 2.3±0.3
LIR2032 3.6 40±5 2C ≤600 20.0 -0.2 3.2 +0.35 2.8±0.3
LIR2050 3.6 80±5 2C ≤600 20.0 -0.2 5.0 +0.2 3.8±0.2
LIR2430 3.6 60±5 2C ≤500 24.5 -0.2 3.0 +0.35 3.8±0.3
LIR2450 3.6 120±10 2C ≤450 24.5 -0.2 5.0 +0.35 5.0±0.3
LIR2477 3.6 180±10 2C ≤400 24.5 -0.2 7.7 +0.3 7.0±0.3

Main Application

1.RFID lable

2.Electrical scale

2.Camera, Computer

3.Home security devices

4.Electronic products:meters, clock&watch, calorimeters, electronic car keys, electronic dictionary

5.Memery backup power

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery

1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy density of Li/MnO2 battery is up to 370Wh/kg and above.


2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)


3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes. On the other hand, Forte also offers a wide range of options for varied needs; we can also provide the cells with pulse current up to several amperes.


4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating temperature endures from -40℃ to +70℃.


5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly capacity loss of the CR series less than 1% .


6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.


7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test requirement.
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Non-flammable electrolyte


8.Green Energy
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of the wastes are naturally degradable and no long-term pollution to environment.

Welcomed ANY BUTTON CELL BATTERY PACK BY OEM CR2450

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery

OEM non rechargeable lithium coin cell battery CR2450 3V 600mah li/mno2 button battery
