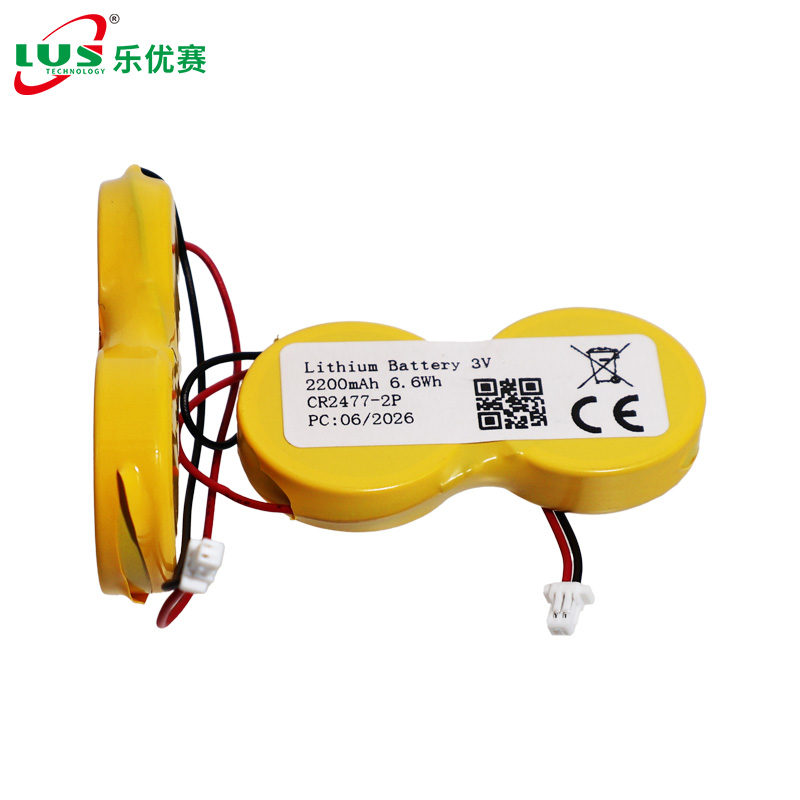

Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
Specifications
Payment Terms :
L/C, T/T, Western Union
Combination :
1S2P battery
Name :
Lithium cion type battery
Price :
Bargain
Capactiy :
2200mah
Supply Ability :
1000000 pcs/Month
Part number :
CR2477-2P
Certification :
UL/CE/UN
Brand Name :
OEM
Bulk order :
Welcome
Place of Origin :
China
Model Number :
3VCR2477 battery pack 2200mah CR2477T-2P battery
LOGO :
Welcome customized
MOQ :
100pcs
Delivery Time :
10-15 working days
Terminals :
Pins, wires, connector or Customized
Voltage :
3.0volt
Packaging Details :
Cartons
Description

Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery

3v lithium 2/cr2477 non-rechargeable Lithium battery CR2477-2P industrial battery pack 3V 2Ah non-rechargeable lithium coin cell battery 3 Volt 950 Mah Lithium Battery 3-volt, lithium manganese dioxide LiMnO2 coin cell battery CR2477 3V Lithium Cell Battery CR2477/F2N 3V Lithium Coin Cell Battery CR2477 1000mah 3V battery 1100mah 3.0volt primary battery CR2477

CR-2477/VCN 3-volt lithium battery CR2477 coin battery CR2477/BN Battery CR2477 lithium coin battery CR2477 3V 1000mAh button battery CR2477 3V coin-type Lithium Battery CR 2477 H2B disposable battery 3V 1000mAh Coin Cell Battery w/ 2 PC Pins or wires custom lithium cion button batteries

ITEM UNIT SPECIFICATIONS CONDITIONS
Model number CR CR2477 or CR2477T button cell
Nominal voltage V 3.0 Standard discharge
Nominal capacity mAh 1000 - 1100 singe cell Standard discharge
Combination 1S2P
Capacity mAh 2000-2200mah battery pack
Off-load voltage V ≥3.30
Storage temperature 0~35
Standard weight g 25 1S2P
Terminals wires and connectore Can be customized

CR2477 3V 1100mAh Button Cell battery Replacement 2477 battery BR2477 lithium battery CR2477N coin cell battery CR2477T button battery DL2477 primary battery ECR2477 non recahrgeable battery KCR2477 primary lithium battery LM2477 Industrial lithium battery pacfk in Bulk Tray

Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery

How to order:
1. Inquiring
2. Discussion
3. Offer and PI
4. Deposit
5. Final Drawing confirmation.
6. Start production -push production -follow production-finished production.
7. Take a movie or photo of the product and share it with the buyer.
8. Rest Payment
9. Ready to ship out.
10. Send out to carrier/forwarder.
11. Follow the shipping things.
12. After-sales service. ( Life Service support)

CR2477 single cell specification:

ITEM UNIT SPECIFICATIONS CONDITIONS
Nominal voltage V 3.0 Standard discharge
Nominal capacity mAh 1000 Standard discharge
Instantaneous short–circuit current mA ≥250 Time≤0.5 second
Off-load voltage V ≥3.30
Storage temperature ℃ 0~35
Standard weight g 9.5 Unit cell
Service output Initial Standard 500 h Continuous discharge with load 1.5kΩ, till 2.0v end-voltage
Minimum 480 h
After 12 months storage Standard 475 h
Minimum 470 h

TABLE Ⅱ:

ITEM CONDITIONS CHARACTERISTICS
Self-discharge rate Stored for 12 months at normal temperature, then continuously discharged with 1.5kΩ load till 2.0v end-voltage ≤5%


Coin Cell Battery Application:

Widely used in watches,computers, laptops, music card;

Voice table,hearing aids, electroni cnotepads, dict;

Cameras, medical devices, flashing lights;

Shoes, lamps and other electronic products.

Such as:

Vacuum cleaner, shaver, MP3, MP4, Digital camera, portable computer,

Lighting, electrical toys, electronic game Machine and electrical vehicles,

Cordless Phones, interphones, and all kinds of Cell phones.

Advantage for Button Cell Battery Lithium Limno2:

High capacity and long cycle life

Long service lifespan

Excellent life cycle

Enviromental friendly

High energy density

Excellent overcharge performance


Rapid charge performance


Lower inner resistance and low self-discharge


Safety and reliability


Wide temperature range, specially design battery can used in high and low temperature


Good quality with competitive price and best service

Suggestions And Cautions

1 Install batteries correctly.

2 Ensure the contact points to be clean and conductive.

3 Do not mix different types, different brands batteries to serve together.

4 Do not heat, recharge the batteries.

5 Do not dispose of the batteries in fire.

6 Keep away from the small children, if swallowed promptly see doctor.

7 Pay attention to the producing date.

Coin Cell Lithium Battery List:

Mode Voltage(V) Capacity(mAh) Dimension(mm) Weight(g) Chargeable or Non
CR2032 3 220 20.0*3.2 3 Non
CR2032 3 240 20.0*3.2 3 Non
CR1220 3 35 12.5*2.0 0.8 Non
CR1225 3 50 12.5*2.5 0.9 Non
CR1616 3 50 16.0*1.6 1.1 Non
CR1620 3 70 16.0*2.0 1.3 Non
CR1632 3 120 16.0*3.2 1.8 Non
CR2016 3 83 20.0*1.6 1.7 Non
CR2025 3 150 20.0*2.5 2.5 Non
CR2450 3 600 24.5*5.0 6.2 Non
CR3032 3 550 30.0*3.2 7 Non
ML1220 3 17 12.5*20 0.8 Yes

Rechargeable cion cell Lithium Battery Product:

Model Nominal Voltage (V) Nominal Capacity (mAh) Max. Discharge Current (mA) Resistance (mΩ) Diameter (mm) Height (mm) Weight Approx (g)
LIR1025 3.6 6±2 1C 　 10.0 -0.15 2.5 +0.15 1.1±0.2
LIR1220 3.6 8±2 1C 　 12.5 -0.2 2.0 +0.35 0.8±0.3
LIR1254 3.6 65±5 1C ≤600 12.0 -0.2 5.4 +0.2 1.8±0.2
LIR1620 3.6 16±2 1C ≤2000 16.0 -0.2 2.0 +0.35 1.2±0.3
LIR1632 3.6 25±2 1C ≤2000 16.0 -0.2 3.2 +0.35 1.7±0.3
LIR1654 3.6 120±5 1C ≤600 16.0 -0.2 5.4 +0.2 2.4±0.2
LIR2016 3.6 18±2 2C ≤2000 20.0 -0.2 1.6 +0.35 1.7±0.3
LIR2025 3.6 25±5 2C ≤2000 20.0 -0.2 2.5 +0.25 2.3±0.3
LIR2032 3.6 40±5 2C ≤600 20.0 -0.2 3.2 +0.35 2.8±0.3
LIR2050 3.6 80±5 2C ≤600 20.0 -0.2 5.0 +0.2 3.8±0.2
LIR2430 3.6 60±5 2C ≤500 24.5 -0.2 3.0 +0.35 3.8±0.3
LIR2450 3.6 120±10 2C ≤450 24.5 -0.2 5.0 +0.35 5.0±0.3
LIR2477 3.6 180±10 2C ≤400 24.5 -0.2 7.7 +0.3 7.0±0.3

Bulk CR 2477 3V lithium coin cell battery pack CR2477-2P with connector 2200mah 3V battery
