Specifications
Brand Name :
OEM
Model Number :
ER10/28
Certification :
UL
Place of Origin :
China
MOQ :
10pcs
Price :
Bargain
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000pcs/days
Delivery Time :
5-7 working days
Packaging Details :
cartons
Material :
Lisocl2
Life :
10 years
Weight :
6g
Diameter :
10.5mm
Height :
28 mm
Nominal Discharge Current :
0.5mA
Description

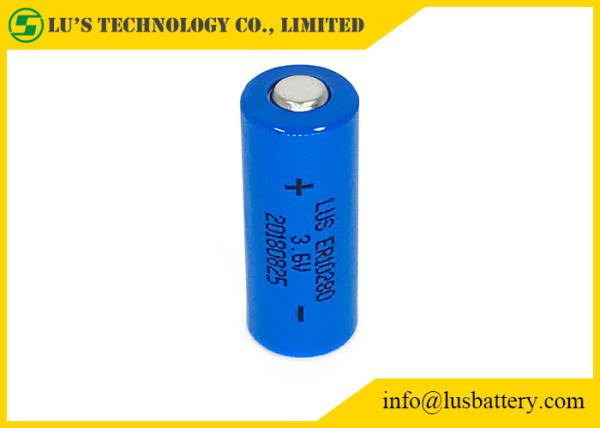

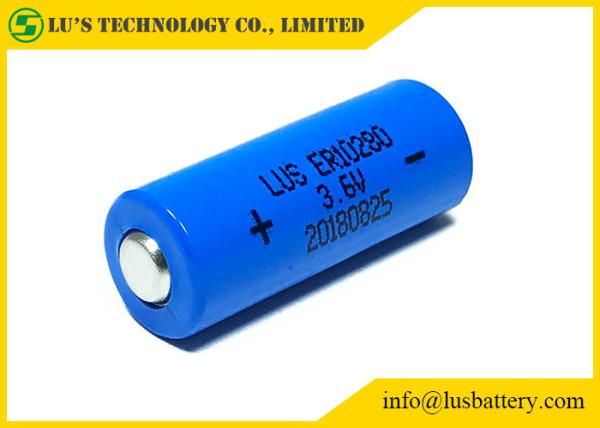

ER10280 Battery 3.6V 2/3AAA Size ER10/28 non-rechargeable lithium battery with PTC

ER10/28 ER10280 Replacement FX2NC-32BL lithium battery for programmable logic controllers

ER10/28 (ER10280) Applicable to Mitsubishi PLC FX2NC-32BL

ER 10280 lithium batteriesTechnical data:

Name Primary lithium batteries
Model ER10280
Size 10.5*28mm
Nominal capacity (2mA~2V) 450mAh - 500mah
Rated voltage 3.6 V
Max constant current of discharge 10 mA
Max discharge current(pulse) 20 mA
Weight 5 g
Operating temperature range -55~85℃
OEM and ODM Welcome
Shipping Air/Sea/Express and customized
Package PVC or customized

Important Notes:

Do not short or charge the battery.

Over-discharging, crushing, incinerating, and disassembling the battery are prohibited.

Do not heat/use the battery beyond the permitted temperature range.

Characteristics:

1. High energy density (620Wh/Kg); which is the highest among all lithium batteries.


2. High open circuit voltage (3.66V for single cell), high operating voltage (varying with load, normally ranging from 3.3V to 3.6V).


3. Wide range of operating temperature(-55C~+85C).


4. Stable voltage and current, over 90% of the cell capacity is discharged at high plateau voltage.


5. Long operating time (over 8 years) for continuous low current discharge with medium current pulses.


6. Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).

Application:

Utility Metering,

Automatic Meter Reading,

Medical Electronics,

Memory Backup,

Tracking Systems,

Law Enforcement (RFID),

Earthquake Detectors,

Digital Control Devices,

Remote Monitory Systems,

Electronic Toll Tags,

Scientific Instruments,

Portable Communication

Equipment,

Military Radio Stations,

And other electric powered devices requiring small size,

High power batteries.

Er10280 3.6 Volt Lithium Battery 2/3 Aaa Size Er10/28 Non Rechargeable With Ptc

LUS batteries

LiSOCL2 energy type and power type:


ER10250, ER10280,ER10450, ER13150, ER13170, ER14250, ER14335, ER14505, ER17335, ER17505, ER18505, ER20505,ER26500, ER34615, ER341245,ER9V and more ...


LiMnO2 energy type and power type:


CR10250, CR10450, CR14335, CR14505, CR17285, CR17335, CR17450, CR17505, CR10450, CR18505, CR20505, CR26500, CR26600, CR34615, CR123A, CR2,CR9V...


Soft pack LimnO2 battery type:


CP042922 CP042345 CP0453730 CP263638 CP265040 CP092142 CP104848 CP142828 CP153030 CP155050 CP2012120 CP202850

CP224035 CP223045 CP224147 CP265045 CP264558 CP305050

CP401720 CP401922 CP405050 CP451728 CP502525 CP502440

CP503742 CP504644 CP505050 CP602026 CP701725 CP783970

CP7839109 CP802060 CP952434 CP1003742 CP383040 CR9V

LU's battery is an experienced supplier of batteries specialized in the production of rechargeable and primary Lithium batteries.

We welcome to OEM and ODM orders.Thanks.

Work shop:

Er10280 3.6 Volt Lithium Battery 2/3 Aaa Size Er10/28 Non Rechargeable With Ptc

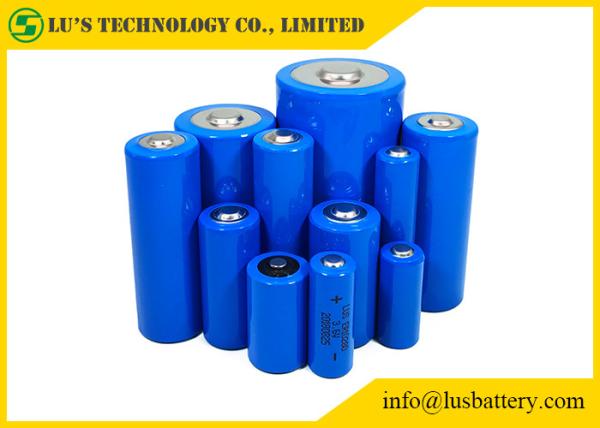

Lithium Thionyl Chloride cells:

Model voltage (v) capacity(mAh) demension(mm) Nominal Discharge Current(mA) weight (g)
Diameter Height
　
ER10250 3.6 400 10.5 25 0.5 5
ER10280 3.6 450 10.5 28 0.5 6
ER10450 3.6 700 10.5 45 1 8
ER14250 3.6 1200 14.5 25.4 1 10
ER14335 3.6 1600 14.5 33.5 1 12
ER14505 3.6 2400 14.5 50.5 2 19
ER17335 3.6 1800 17.5 34 3 18
ER17505 3.6 3200 17.5 50.5 3 26
ER18505 3.6 3600 18.7 50.5 3 28
ER26500 3.6 9000 26.2 50 4 52
ER34320 3.6 8000 34.2 32.5 4 58
ER34615 3.6 19000 34.2 61.5 5 100
ER341245 3.6 36000 34.2 124.5 10 195
ER14250M 3.6 800 14.5 25.4 2 10
ER14335M 3.6 1300 14.5 33.5 3 13
ER14505M 3.6 2200 14.5 50.5 4 19
ER17505M 3.6 2800 17.5 50.5 5 27
ER18505M 3.6 3200 18.7 50.5 5 28
ER26500M 3.6 6500 26.2 50 10 52
ER34615M 3.6 14000 34.2 61.5 15 100
ER13150S 3.6 300 13.2 15 0.5 6
ER14250S 3.6 750 14.5 25.2 1 10
ER14505S 3.6 1600 14.5 50.5 2 20
ER26500S 3.6 4100 26.2 50 4 60
ER34615S 3.6 10500 34.2 61.5 5 106
ER2450 3.6 500 24.5 5.9 1 9
ER32100 3.6 1700 32.9 10 1 25
ER3265 3.6 1000 32.9 6.5 1 17
ER9V 10.8 1200 17*26.3*48.5 1 30
EF651615 3.6 400 16.8*15.8*6.8 1 5
EF651625 3.6 750 16.8*25.8*6.8 1 8
Remark: 1)"M"-Power Type; 2)"S"-High Temperature;
