Cylindrical Cell 3V Lithium Manganese Dioxide Lithium Primary Batteries
Lithium/Manganese Dioxide (LiMnO2) Battery CR2 also called CR15270
It is Non-Rechargeable Cell .
1.The battery with laser and hermetic glass-to-metal welding sealed
that keep the CR2 battery with unique
performance in wet environment.
2.Extra longer battery life. 5-year leak-free shelf life,
Fast flash performance consistent, very short recovery time
3. Superior drain capability 800mA and 1500mA pulse discharge
Stable discharge characteristics
4. OEM&ODM customized battery pack service ,Supports various battery pack design configurations
5. Low self-discharge( (less than 2% after 1 year of storage at room temperature)
6. Full official certificate to overseas market and delivery via courier sea or air delivery door to door service

| NO | Battery Type | primary lithium battery CR2 |
| 1 | Model No. | Li-MnO2 CR2 CR15270 |
| 2 | Nominal Voltage | 3.0V |
| 3 | Nominal Capacity@0.2C | 800mAh |
| 4 | Open Circuit Voltage | 3.10V |

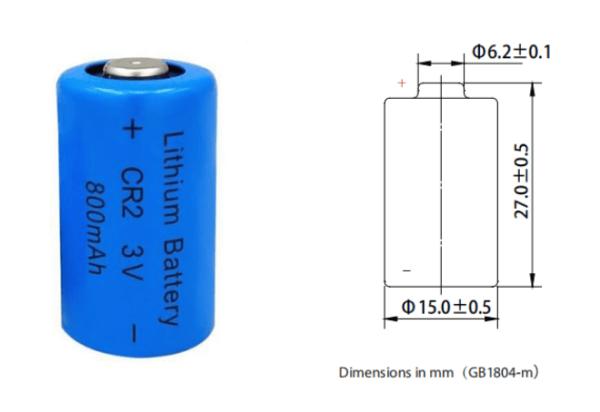

| 5 | Dimension | Diameter: 15.5X Height :27mm |
| 6 | Max. Continuous Current | 800mA |
| 7 | Max. Pulse Current | 1500mA |
| 11 | Weight | 13g |
| 12 | Working temperature | -40℃~85℃ |
| 13 | Battery HS Code | 8507600090 |
| 14 | Quality Guarantee | 12months |
| 15 | Self-discharge Rate | Less than 1% per year |
| 16 | Battery Certificate | MSDS KC CE CB IEC62133 UL PSE |


Contact us directly for quotation and data sheet :
Lucy@maxpowersz.com
Whatsapp: 0086-13714669620
| Rechargeable or not | non-rechargeable Primary lithium battery |
| Service | OEM ODM accept customized battery pack |
| Place of Origin | China |
| Sample Lead Time | 5-7 days |
| Bulk order L/T | Within 20-25 days |

Li Mno2 CR2 battery cell Packing compactly and shipping safely
Inner box+carton box,or as customzied requirement

Cylindrical Li-MnO2 Battery With High Power
| Model | Specification | Size φmm*mm | Weight(g) | Voltage V | Capacity/Current(mAh/mA) | Max. discharge Current(mA) | working temprature ℃ | Cut off Voltage V |
| CR14250E | 1/2AA | φ14.5*25.2 | 8.5 | 3 | 650/ 5 | 250 | -40~+70 | 2.0 |
| CR14505E | AA | φ14.5*50.5 | 17 | 3 | 1400/ 5 | 1000 | -40~+70 | 2.0 |
| CR17335E | 2/3A | φ17.0*33.5 | 17 | 3 | 1500/ 5 | 1000 | -40~+70 | 2.0 |
| CR17450E | AG | φ17.0*45.0 | 26 | 3 | 2200/ 10 | 1000 | -40~+70 | 2.0 |
| CR17505E | A | φ17.0*50.5 | 30 | 3 | 2400/ 10 | 1000 | -40~+70 | 2.0 |
| CR26500E | C | φ26.2*50.5 | 55 | 3 | 5000/ 10 | 1000 | -40~+70 | 2.0 |
| CR34615E | D | φ34.0*61.5 | 125 | 3 | 12000/ 10 | 2000 | -40~+70 | 2.0 |
| CR14250H | 1/2AA | φ14.5*25.2 | 12 | 3 | 900 | 7 | -40~+70 | 2.0 |
| CR14250B | 1/2AA | φ14.5*25.2 | 12 | 3 | 800 | 7 | -40~+70 | 2.0 |
Li-MnO2 123A Batteries
| model | Size φmm*mm | Weight(g) | Voltage V | Capacity/Current(mAh/mA) | Max. discharge Current(mA) | working temprature ℃ | Cut off Voltage V |
| CR2 | φ15.5*27.0 | 13 | 3 | 850/ 5 | 800 | -40~+70 | 2.0 |
| CR-P2 | φ35*19.5*36 | 42 | 6 | 1500/ 5 | 1000 | -40~+70 | 4.0 |
| CR123A | φ17.0*34.5 | 16 | 3 | 1500/ 5 | 1000 | -40~+70 | 2.0 |
| 2CR5 | φ34*17*45 | 39 | 6 | 1500/ 5 | 1000 | -40~+70 | 4.0 |
More CR battery model list ,Contact maxpower Lucy directly for quotation and catalogue.
