30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
Specifications
Brand Name :
MaxPower
Model Number :
512V 200Ah
Certification :
UN38.3 MSDS CE CB UL
Place of Origin :
China
MOQ :
5PKS
Price :
Negotiation
Payment Terms :
L/C, Western Union, T/T,Paypal
Supply Ability :
30000PCS PER Day
Delivery Time :
5-8 working days
Packaging Details :
Standard export carton , Export Pallet
Battery Type :
Lithium LiFePo4 Battery
Voltage :
512V
Capacity :
200Ah
Dimension :
600*1000*2000(mm)*2
Weight :
1300kg
Guarantee :
2 years
rated energy :
102.4kWh
inner resistance :
<80mΩ
Communication :
RS485/CAN/LAN
Display :
7 inches touch LCD screen
Description

30kW all-in-one energy storage cabinet with LiFePO4 battery, on/off-grid compatible, IP55,

C3 anti-corrosion. Ideal for commercial & industrial peak shaving, backup power & solar self-consumption.

30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System

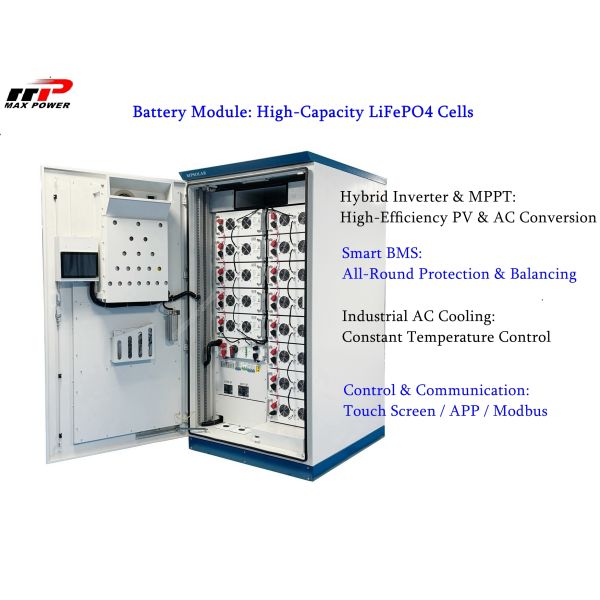

Why This Cabinet?

ONE CABINET. FULL SYSTEM. All-In-One Industrial ESS Solution

  • LiFePO4 Battery + Hybrid Inverter + MPPT + BMS + Air Conditioning Cooling
  • 30kW Output • 45kW PV Input • Up To 99.84kWh Capacity
  • On-Grid & Off-Grid Compatible • IP55 • C3 Anti-Corrosion
  • -30℃ ~ 55℃ Ultra-Stable • Industrial-Grade Reliability

Our 30kW all-in-one energy storage cabinet integrates a high-performance LiFePO4 battery pack, hybrid inverter, MPPT controller, BMS, and industrial air conditioning cooling system into one cabinet.

It supports both on-grid and off-grid operation, with high safety, long cycle life, stable output, and easy installation.

This system is widely used for :

commercial peak shaving, industrial load shifting, solar self-consumption optimization, emergency backup power,

and microgrid applications.

30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System

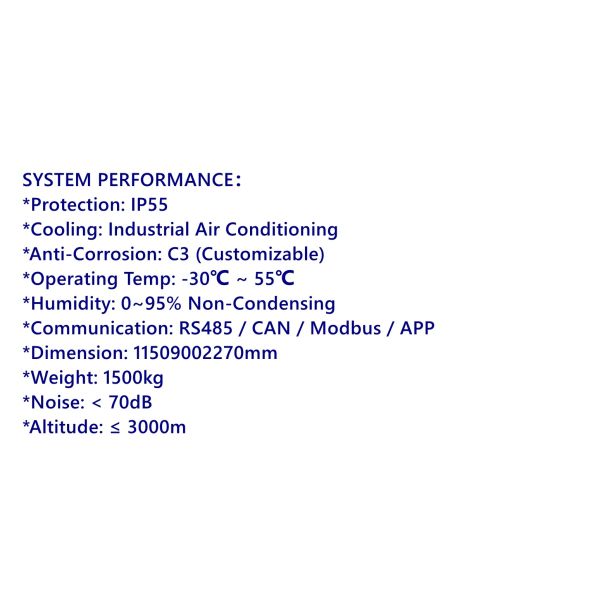

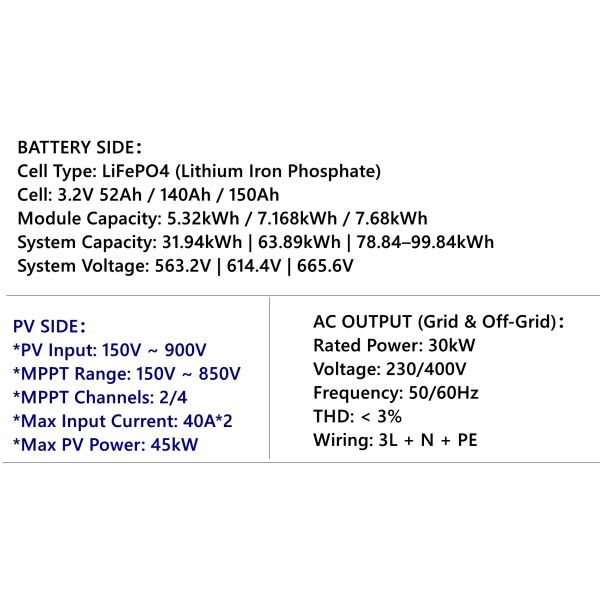

TECHNICAL SPECIFICATIONS:

30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System

30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System

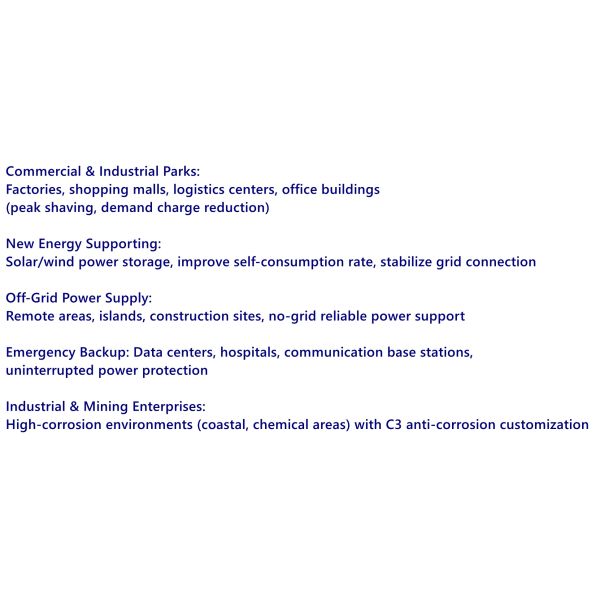

Application Scenarios

30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System

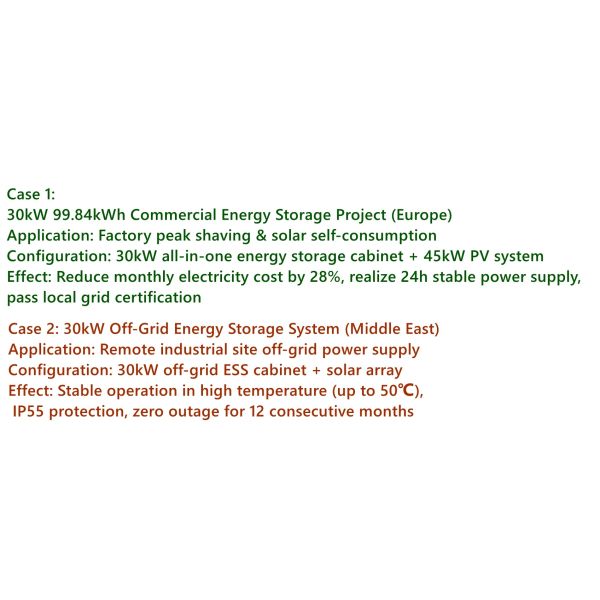

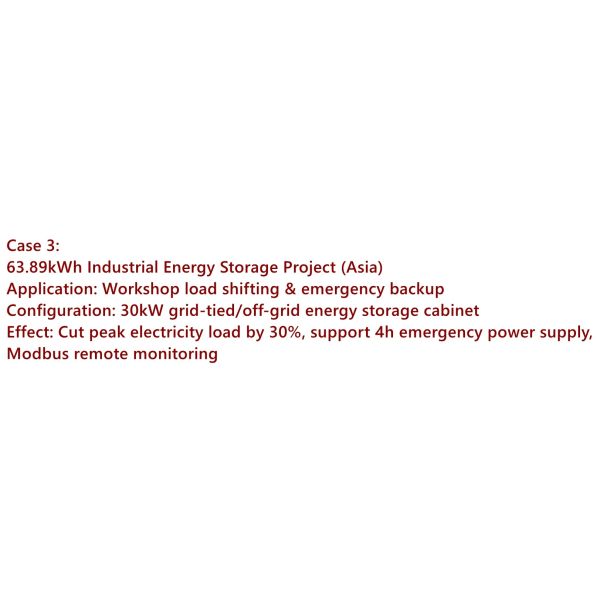

Project Cases
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
30kW All-in-One LiFePO4 Energy Storage Cabinet | C&I Solar Battery System
【Similar Energy Storage Cabinet Models】
Model Rated Power Battery Capacity Application:
10kW All-in-One ESS Cabinet 10kW 20kWh/30kWh/50kWh Small business, residential backup
20kW All-in-One ESS Cabinet 20kW 50kWh/60kWh/80kWh Medium commerce, small factory
30kW All-in-One ESS Cabinet 30kW 31.94kWh/63.89kWh/99.84kWh C&I, factory, off-grid system
50kW All-in-One ESS Cabinet 50kW 100kWh/150kWh/200kWh Large factory, industrial park
100kW Containerized ESS 100kW 215kWh/280kWh/344kWh Large C&I, microgrid, utility
【Why Choose Us】
✅ Premium LiFePO4 Cells: High safety, 6000+ cycles, long service life
✅ All-in-One Design: Save space, easy installation & maintenance
✅ On/Off-Grid Compatible: Flexible application, strong adaptability
✅ IP55 & C3 Anti-Corrosion: Suitable for harsh environments
✅ Global Certification: CE, ISO, IEC certified, safe & reliable
✅ Customization Support: Capacity, voltage, communication, anti-corrosion customizable
【Contact Us】
Inquire now for product catalog, quotation and customized solution!
We provide global delivery, on-site commissioning and after-sales support.
