EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
Specifications
Brand Name :
EVE
Model Number :
LF105
Certification :
UN38.3/CE/UL/IEC62133
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100Kpcs/M
Delivery Time :
5-8 work days
Packaging Details :
16pcs/carton
Type :
LiFEPO4
Safety Protection :
Over Charging/Over Discharging
Application :
Energy storage Battery Pack
Voltage Range :
2.5V - 3.65V
Description

The EVE LF105 Grade A Cells are high-performance 3.2V LiFePO4 (Lithium Iron Phosphate) batteries, designed for long-lasting energy storage applications. With a 105Ah capacity, these cells provide high energy density, stability, and a long cycle life, making them ideal for solar power systems, electric vehicles, and off-grid energy storage solutions.

Built with Grade A quality assurance, these batteries offer consistent performance, enhanced safety, and reliable power output. The LiFePO4 chemistry ensures superior thermal and chemical stability, significantly reducing the risk of overheating or thermal runaway compared to traditional lithium-ion batteries.


Cell Characteristics
Specification Value
Brand EVE
Model LF105
Nominal Capacity 105.0Ah (336.0Wh)
Nominal Voltage 3.2V
End-off-charge Voltage 3.65V
End-off-discharge Voltage 2.5 V (T > 0℃)
2.0 V (T ≤ 0℃)
Standard Charging Current 52.5A
Maximum Instantaneous Charging Current 2C ( 30 s, ≤ 80% SOC, 25℃ ±2℃)
Standard Discharging Current 52.5A
Maximum Instantaneous Discharging Current 3C ( 30 s,≥ 30% SOC, 25℃ ±2℃)
Ambient Temperature Charge -10～65℃ Discharge -30～65℃
Direct Current Resistance (DCR) ≤1.8mΩ
Weight
1980 g ± 60 g
Dimension Terminal Height: 200.50 mm ± 0.50 mm
Length: 130.30 mm ± 0.50 mm
Thickness: 36.35 mm ± 0.50 mm
Cycle life 4000/80% (0.5C/0.5C)


Discharge Rate Characteristics at 23°C

Discharge Temperature Characteristics

Key Features

High-Capacity Energy Storage: 105Ah capacity provides long-lasting and efficient power.
Stable LiFePO4 Chemistry: Offers higher safety, thermal stability, and reliability than standard lithium-ion batteries.
Long Cycle Life: Supports 4,000+ charge cycles with minimal capacity degradation.
High Discharge Rate: Capable of continuous high discharge currents for demanding applications.
Grade A Quality: Premium performance with strict quality control, ensuring optimal efficiency and durability.
Eco-Friendly & Safe: Non-toxic, cobalt-free chemistry with built-in overcharge and over-discharge protection.


Applications

The EVE LF105 Grade A LiFePO4 Battery is widely used in high-energy storage and power applications, including:
Solar Energy Storage Systems – Ideal for off-grid and grid-tied solar battery banks.
Electric Vehicles (EVs) & E-Bikes – Provides efficient and long-lasting power for mobility solutions.
Uninterruptible Power Supply (UPS) & Backup Power – Ensures reliable energy during power outages.
Marine & RV Battery Systems – Offers stable energy for off-grid adventures.
Battery Packs & DIY Energy Storage – Commonly used in custom-built power storage solutions.
Industrial & Commercial Applications – Powers high-energy demand equipment in factories and telecom stations.

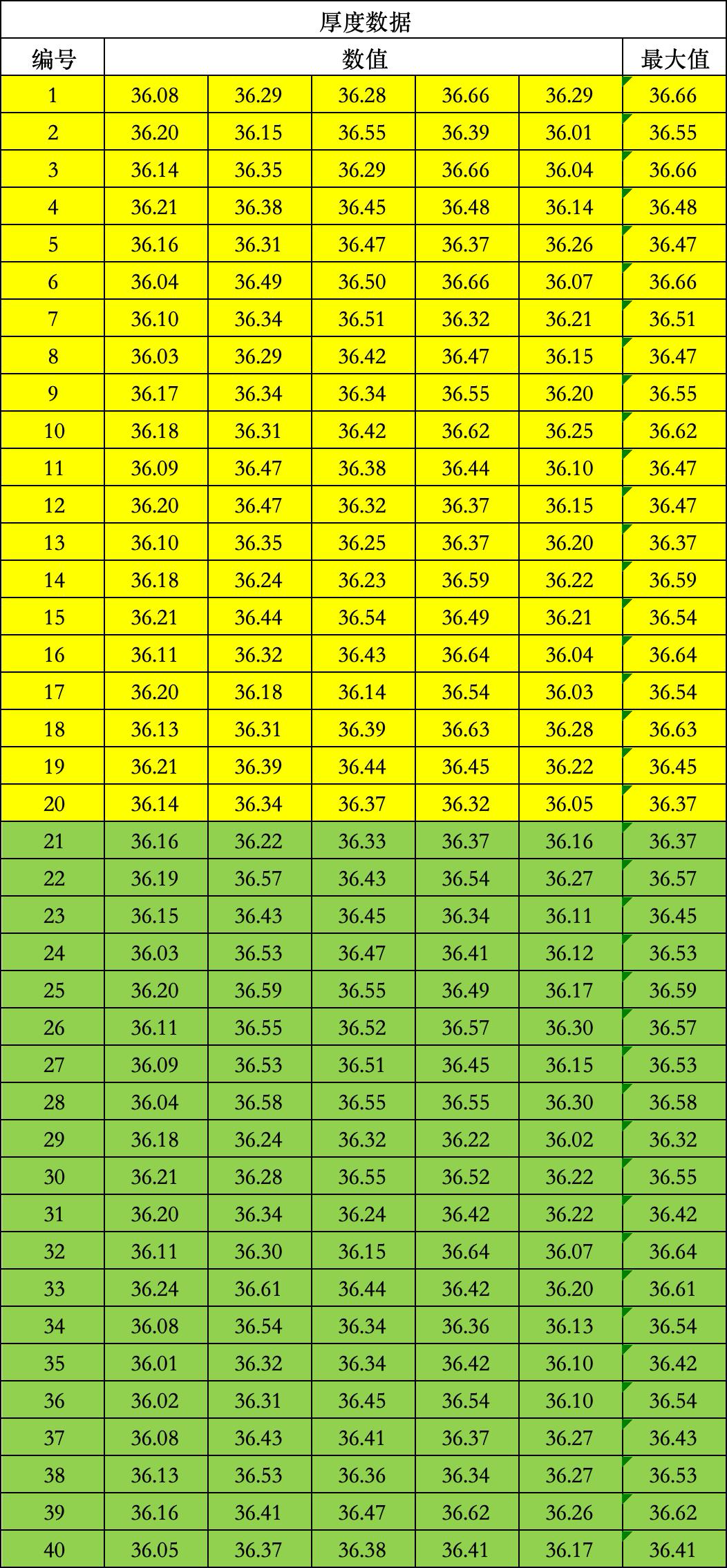

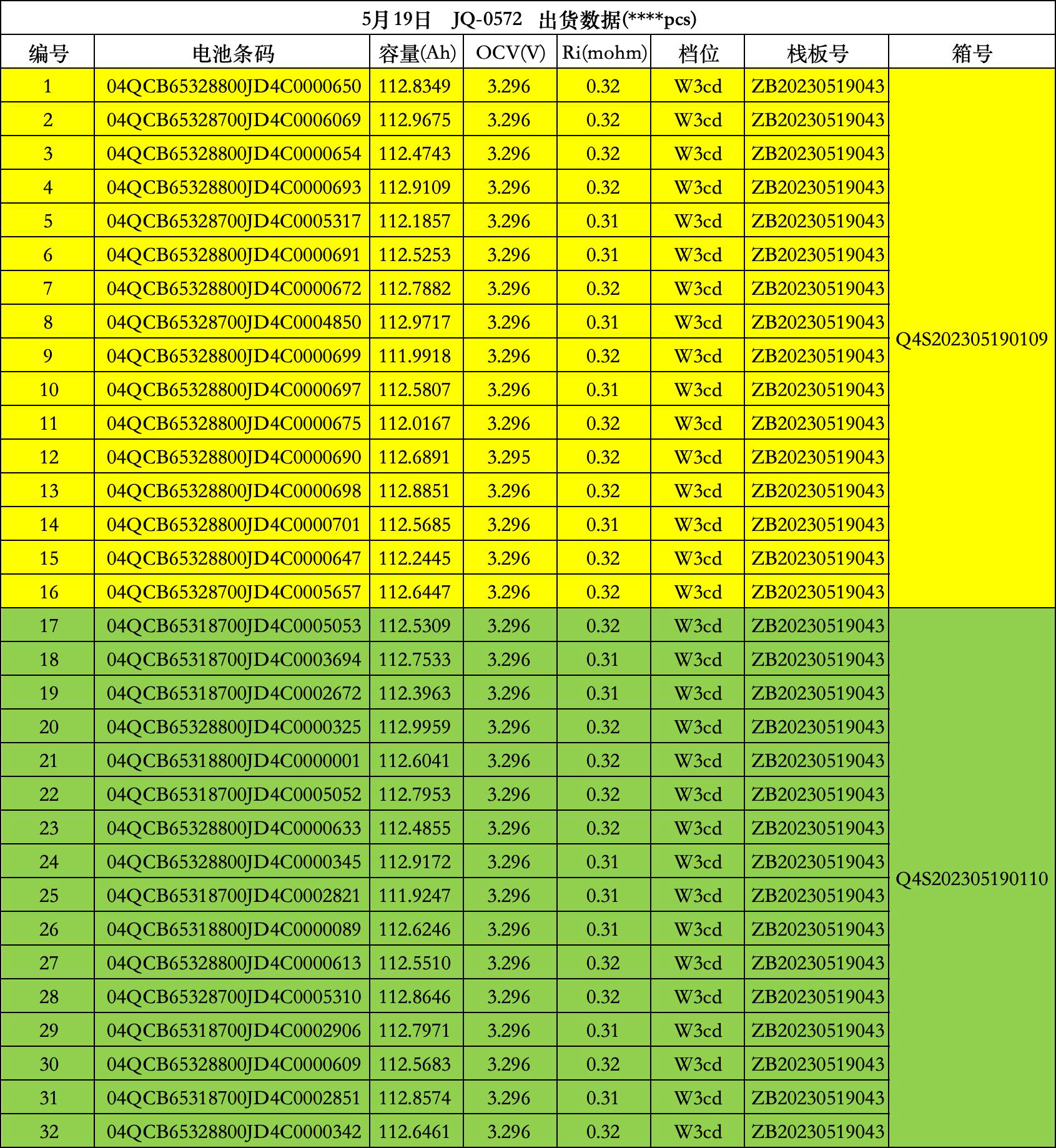

Full Excel Report Available By Request
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage
EVE LF105 3.2V 105Ah LiFePO4 Prismatic Cell With 4000 Cycles For Solar Energy Storage


Warning

  • The cell has potential hazards, and take proper precautions when operating and maintaining the

    cell!
    The cell must be operated with proper tools and protective equipment.
    Cell maintenance must be performed by professional with cell expertise and safety training.
    Failure to comply with these warnings could result in multiple disasters.
