Specifications
Brand Name :
KVOU
Model Number :
300ah
Certification :
CE/FCC/ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden case and Carton case
Battery Type :
LiFePO4
Weight :
5.42±0.16kg
Cycle life :
9000 Times
Capacity :
300ah
Size :
174*72*207mm
Internal Impedence :
0.2-0.5mmΩ
Nominal Voltage :
3.2V
Nominal Capacity :
300Ah
Description

9000 cycles 300ah outdoor solar energy storage lithium battery

Solar cells LiFePO4 weighs only one-third of the weight of lead-acid batteries. More stable and safer. The chemical properties of lithium iron phosphate batteries are very stable. So it is safer than lead-acid batteries.


The superior high temperature resistance and storage performance of this lithium iron phosphate battery make LiFePO4 the most suitable cathode material for 12v lithium-ion batteries.


Solar cells LiFePO4 material batteries are safer than LiCoO2 and LiMn2O4 because of its stable structure that can hold up well under continuous charging and discharging.
We can customize any capacity and size battery you want! Please write to me if you have a request, thanks!

Item
Parameter
Remark
L173F300A
Spot Welding type
CALB 300ah
Screw type
Rated Voltage
3.2V
Rated Capacity
300Ah
Charge mode
CC/CV
Charge cut off voltage
3.65V
Discharge Cut off voltage
2.5V
Standard charge
0.5C
(0℃
Quick charge
1C
(5℃
Max. charge
1C
(15℃
Standard Discharge
0.5C
Max. discharge current
1C
Max. Pulse Discharge current (long time)
1.2C
Maximum duration: 3min
Inner resistance
≤0.2-0.5mΩ
Size
174*72*207mm
(TxWxH/TH)
Approx. Weight
5.42±0.16kg
Cycle life
≥9000 times
DOD 80%
Operation Temperature
Charge Temperature
0~55℃
Discharge Temperature
-20~60℃

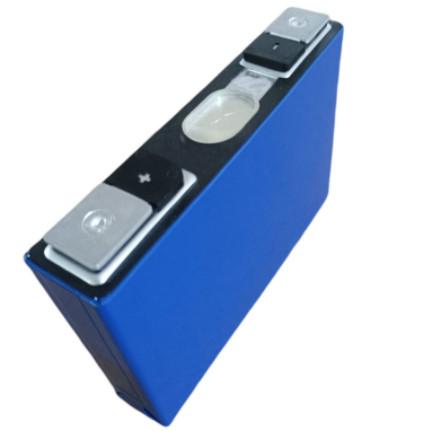

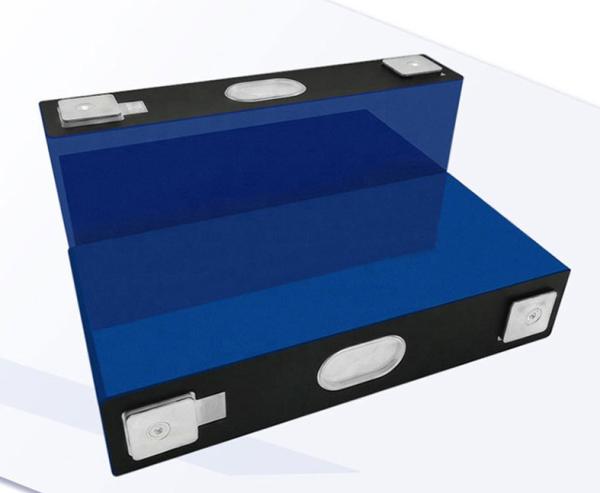

9000 Cycles Lithium Battery Cell Stable 300ah LiFePO4 Cell Screw Type

▲Do not throw the battery into water or make it wet ▲Do not connect positive and negatives with metal cover
▲Do not make the cell short circuit, over-charge or over-discharge
▲Do not use or store the cell near the heat source (such as fire or heater)
▲Do not connect the position (+) and negative (-) terminals in the opposite way
▲Do not put the battery together with coin, metal jewelry and other metal objects
▲Do not disassemble or modify the battery in any way;
▲Mixed use of different types, brand of battery are forbidden
▲Do not connect the negative pole with the shell which is positive
▲If battery catch fire, use dry powder, foam fire extinguisher or sand to extinguish flames and remove it from the operating environment

FAQ

Q1. What about the lead time?

A:Within 7-15 days, we well arrange it for you as soon as possible.

Q2. Do you have any MOQ limit for lithium battery?

A: No MOQ.

Q3. Which product is hot sale in your company?

Re: Lifepo4 battery 310ah, 304ah, 280ah, 230ah, 202ah, 176ah, 173ah,50ah and so on.

Q4. How to proceed an order for lithium ion battery?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q5. Can we sign a secrecy agreement if we wanna build a long-term business relationship?

A: Sure, we respect clients requirements, will bring more benefit to you.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 12 months warranty to our products.
