Specifications
Brand Name :
KVOU
Model Number :
HV5.0
Certification :
UL1973/IEC62619/UN38.3
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden box and Carton
Output Frequency :
50/60Hz
Max AC Charge Current :
40A
Max PV Input Voltage :
150V
Battery Type :
LiFePo4
Cycles Life :
>6,000
Communication :
RS485
Weight (Kg) :
90Kg
Cooling Method :
Auto Fan Cooling
Description

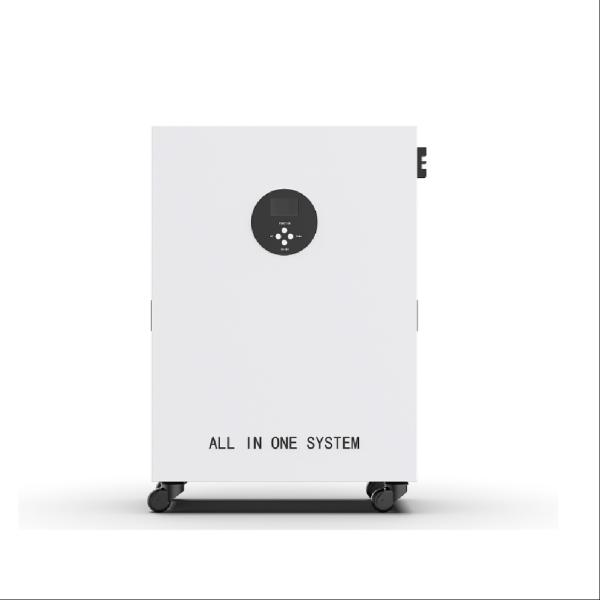

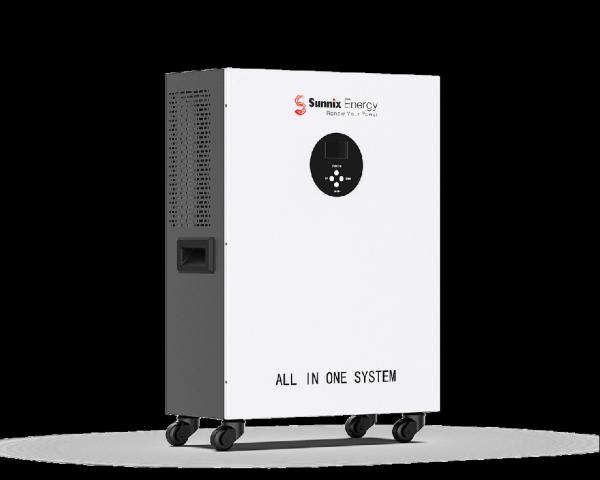

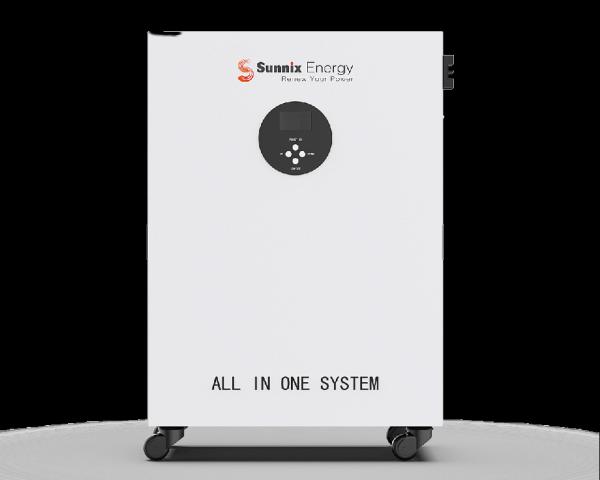

Large Capacity 51.2V 10.24KWH 5KW 200ah Lithium Solar Storage Battery

This product is a fully - integrated home storage system with Lifepo4 batteries, applied for easily retrofitted to an existing solar PV installation. The system stores energy generated during the day and discharge at night when household electricity demand peaks. We expect the battery pack about 20 years life and more than 6000 cycles.


Enjoy easy installation and cost with portable storage battery, We are always ready to supply the first-class products and meet the various needs of the customers.

Selective lifepo4 cells:
IEC A grade Lifepo4 cells applied
Using lithium iron phosphate cell, low internal resistance, high rate, high safety, long life. High consistency of internal resistance, voltage and capacity of single cell.

Smart BMS System:
Smart BMS with function of single battery voltage detection, battery temperature NTC detection etc. Perfect BMS protection function and control system, over current, over voltage, insulation and other multiple protection design
Supports communication protocol such as CAN2.0 and RS485, which can be used in various scenarios.

51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH

Model
PNG 1000-2.56
PNG 1000-2.56
PNG3000-10.24
Rated AC Output Power
1.5KW
3KW
5KW
Peak Power (20ms)
4.5KW
9KW
15KW
AC Output Voltage
100-120V/220-240V
Output Frequency
50/60Hz
Output Waveform
50/60Hz
USB Output
5V 2A
Max AC Charge Current
40A
Max PV Input Power
1040W
2080W
3120W
Max PV Input Voltage
150V
MPPT Charging Current
24V 40A
48V 40A
48V 60A
Battery Type
LiFePo4
Battery Capacity
2.56KWh
5.12KWh
10.24KWh
Nominla Voltage
25.6V
51.2V
51.2V
Operating Voltage
22.4 – 29.2V
44.8 – 58.5V
44.8 – 58.5V
Cycles Life
>6,000
Communication
RS485
Cooling Method
Auto Fan Cooling
Protection
Short Circuit,Over Charge/Discharge, Over Current/Temp
Working Temperature
-20 – 55℃
Enclosure Protection Rating
IP40
Dimension (W*H*D, mm)
592*820*260
592*820*260
642*1129*280
Weight
60KG
90KG
140KG
Warranty
3Years
Safety Standard
CE ,TUV,IEC, RoHs

51.2V 200ah Large Capacity Lithium Solar Storage Battery 5KW 10.24KWH

FAQ
1. Q: Are you a manufacturer or trading company
A: We are manufacturer.

2. Q: Can I buy one or two units for the sample first?
A: Yes. Samples are welcome for the portable power station/solar generator. You can buy the sample directly online here.

3. Q: How to charge the portable power station/solar generator?
A: There are three ways to charge the portable power station. By grid, by solar panel and by car.

4. Q: Do this portable power station/solar generator include the solar panel?
A: No. The portable power station doesn't include the solar panel and controller. The solar panel and controller is sold
separately, which you can buy from us also.

5. Q: What is the production time for this portable power station/solar generator?
A: The delivery time for the samples is usually 14 days. It can be shipped by UPS, except some sensitive countries.
