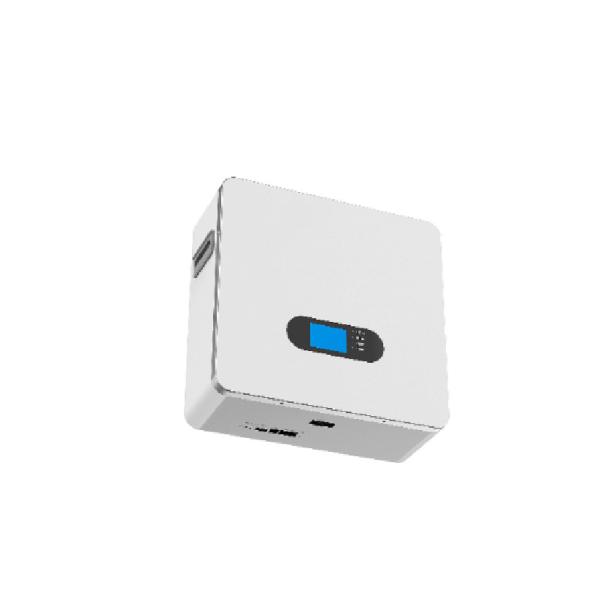

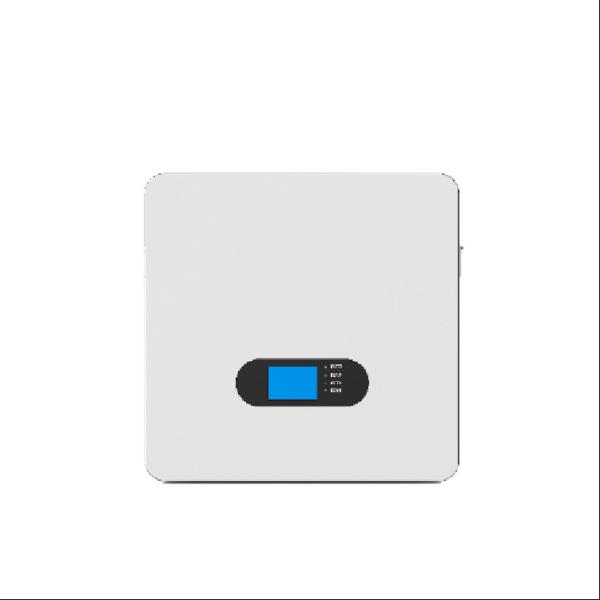

10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home
Specifications
Brand Name :
KVOU
Model Number :
W10.0
Certification :
UL1973/IEC62619/UN38.3
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T
Supply Ability :
5000 unit per month
Delivery Time :
7-15working days
Packaging Details :
Wooden box and Carton
Battery Type :
LiFePO4
Nominal Energy(KWh) :
9.6
Usable Energy(KWh) :
8.64
Round-Trip Efficiency :
≥97.5%
Nominal Voltage(V) :
48V
Max Charge/Discharge Current(A) :
100/100
Enclosure Protection Rating :
IP21
Cooling Type :
Natural Cooling
Description

10KWh 200Ah Lithium Ion Batteries Stacked Energy Storage Battery For Home

This product is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios. The environmentally friendly lithium ion battery configured with high-performance BMS, has a wide range of performance and application advantages compared with conventional battery. And the leader chemical technology, BMS technology and system design capabilities will bring excellent performance and reliability, and also provide the best solutions for industrial applications.

Product Description
1. High Voltage Stacked LiFePO4 Battery
2. 48V voltage
3. 10KWH Capacity
4. Easy installation with modular and stacked design
5. Remote firmware upgrade
6. IEC CE CEC UN38.3

10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home

Model
PNGW5.0
PNGW10.0
Battery Type
48V 100 AH LiFePO4
48V 200 AH LiFePO4
Nominal Energy(KWh)
4.8
9.6
Usable Energy(KWh)
4.32
8.64
Peak Output Power (KW, 3 Seconds)
7.68
9.6
Round-Trip Efficiency
≥97.5%
Nominal Voltage(V)
48V
Operating Voltage(V)
42-55
Max Charge/Discharge Current(A)
80/80
100/100
Enclosure Protection Rating
IP21
Enclosure Protection Rating
-20 - 55
Cooling Type
Natural Cooling
Installation
Wall Mounted, Indoor
Cycles Life
＞6,000
Design Life
20+ Years (25℃@77℉)
Recommend DOD
90%
Dimension (W*H*D, mm)
480*500*240
550*650*240
Weight (Kg)
48
90
Altitude (m)
＜2,000
Warranty
5 Years
Safety Standard
UL1973/IEC62619/UN38.3
Scalability
Max 8 Pcs in Parallel
Max 16 Pcs in Parallel

10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home

10KWh 200Ah Lithium Solar Battery IP21 Stacked Energy Storage Battery For Home

FAQ
1. Q:Can I have samples order? And what is delivery time for sample order?
A:Yes, we offer samples. The delivery time for samples is 15 days.You can test our batteries to know more about its performance and quality.

2. Q:What's the MOQ?
A:There is no MOQ for samples. For bulk order quantity, the more, the cheaper.

3. Q:Are you battery real capacity?

A:Yes, we can offer you the testing data of each cell to show its actual capacity, IR and so on.The actual capacity are more than its nominal capacity

4. Q:How about the quality & warranty time?
A:All products provided 3 years warranty. If there is any quality problem,we can send the new to replace it.
